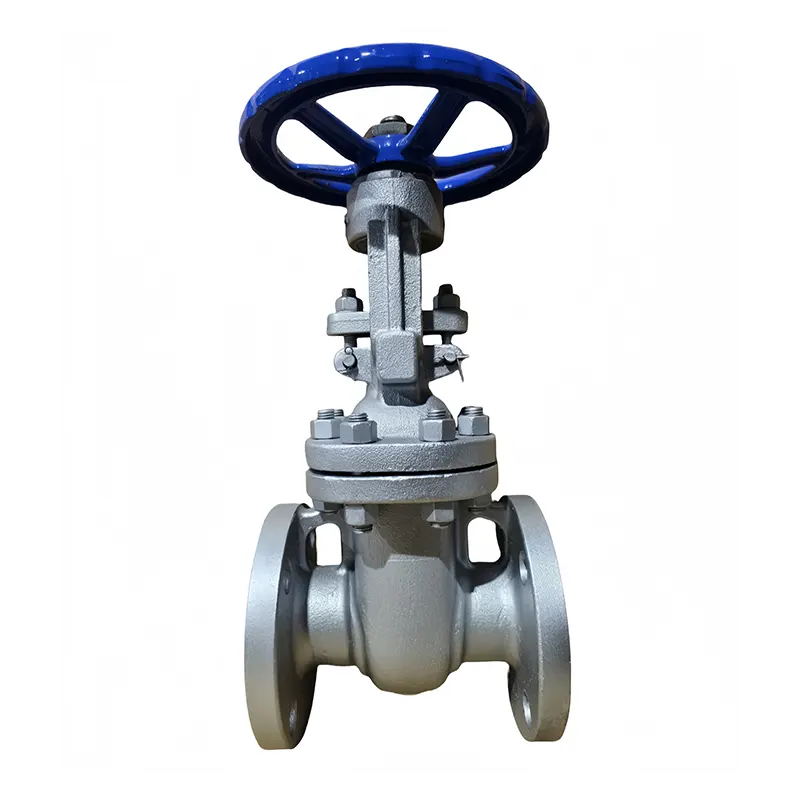

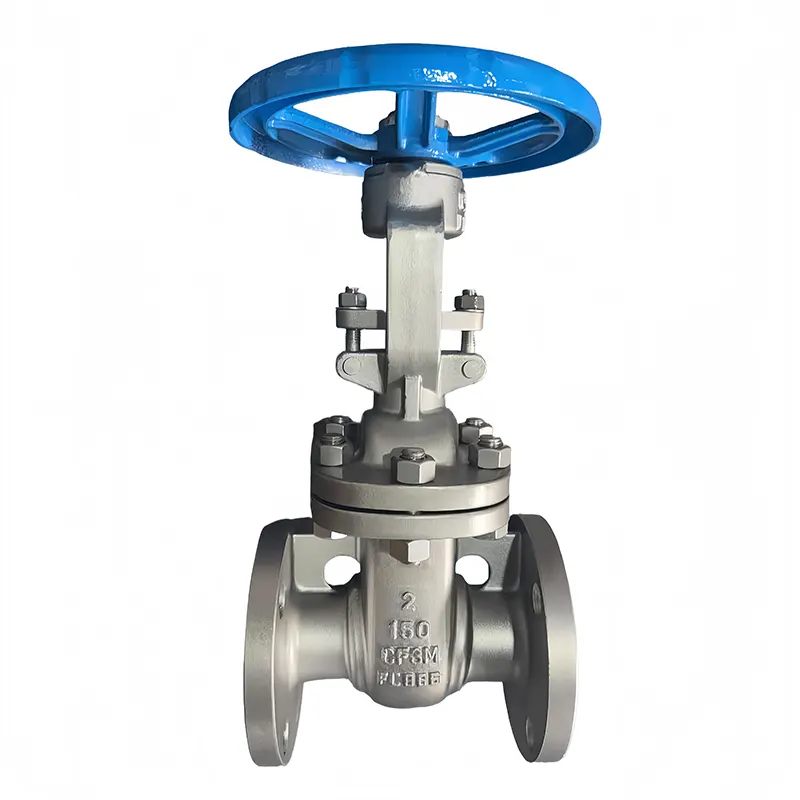

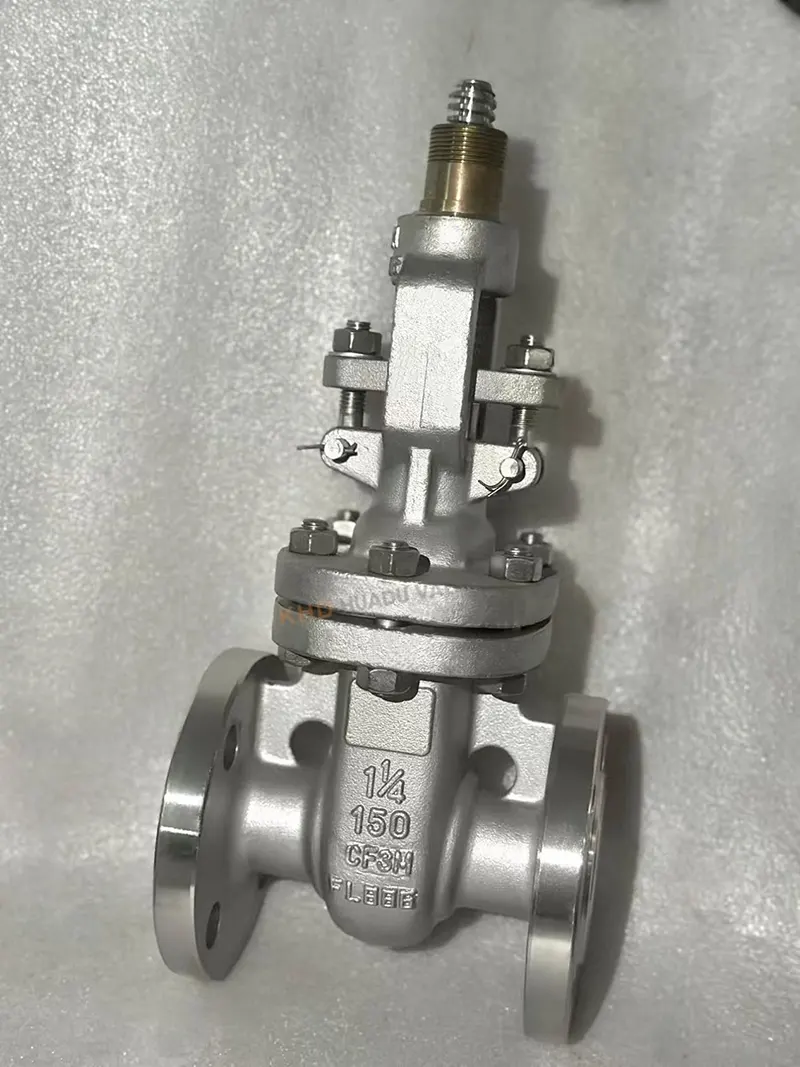

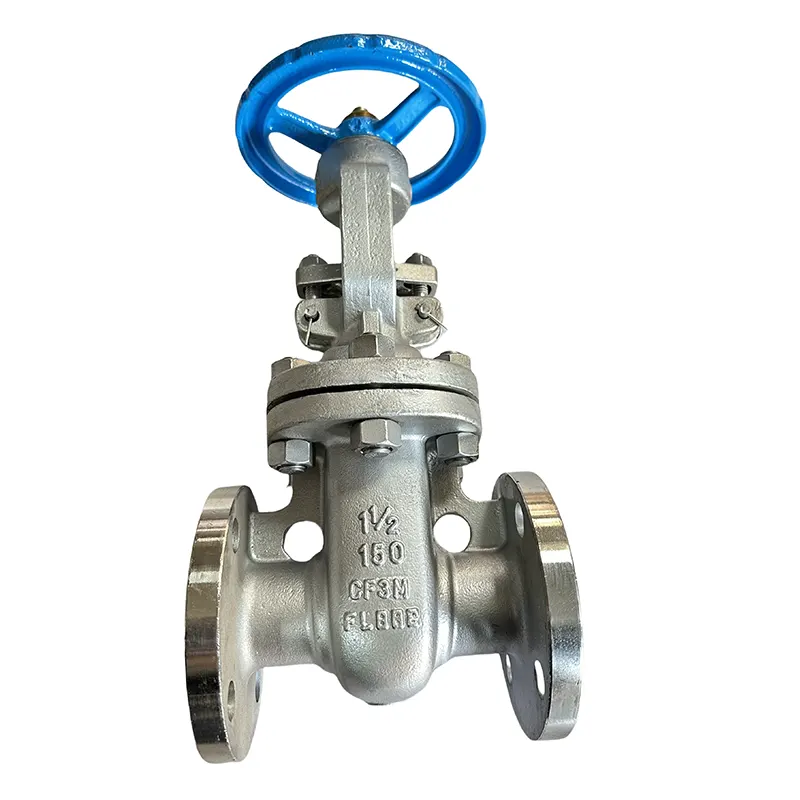

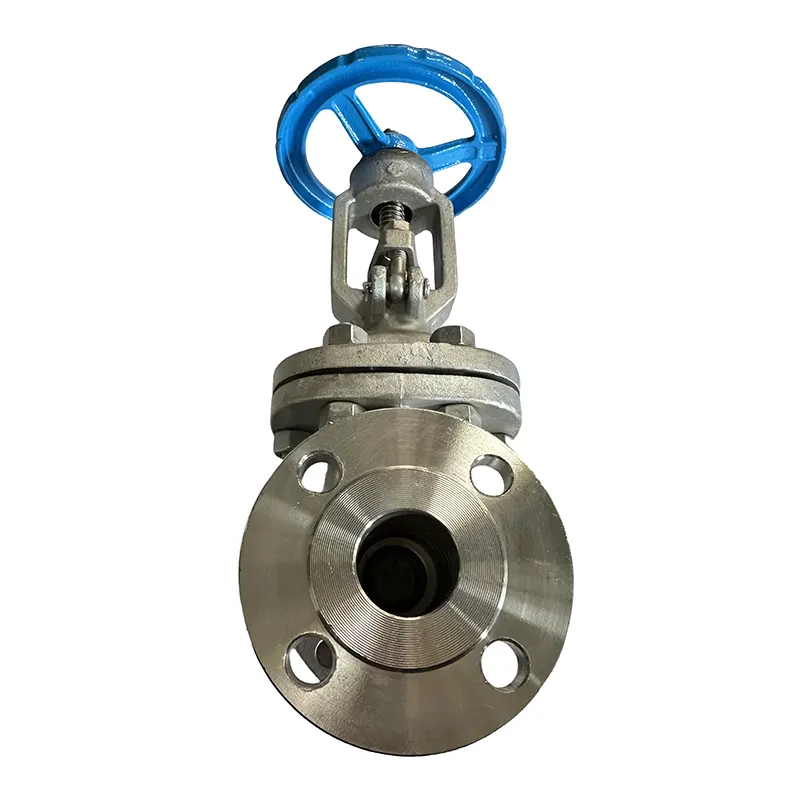

Stainless hlau 316L Flanged Gate Valve

Huadu Valve Group manufactures muaj li qub nyob rau hauv Wenzhou, Suav teb, tsom rau corrosion-resistant pipeline daws. Peb qhov tshwj xeeb Stainless Hlau 316L Flanged Gate Valve txais hwm 316L stainless hlau, featuring zoo heev tiv taus acid, dej ntsev thiab tshuaj chloride nruab nrab. Nruab nrog flanged kawg thiab cov khoom siv sib khi ua ke, nws muab tag nrho cov bore ntws thiab ruaj khov ob txoj kev kaw nrog me ntsis siab poob. Nws yog dav siv nyob rau hauv seawater desalination, nplua tshuaj thiab marine engineering pipelines.

Xa lus nug

Product Description

Peb yog lub Hoobkas muaj ntawv pov thawj nrog ISO thiab API daim ntawv pov thawj, nruab nrog cov cuab yeej ua tiav thiab kev soj ntsuam zoo tag nrho. Peb txhawb OEM thiab ODM customization nrog hloov tau MOQ. Peb cov khoom tiv thaiv corrosion tau muag thoob ntiaj teb thiab tau txais kev ntseeg zoo ib yam los ntawm cov neeg siv khoom thoob ntiaj teb.

Dab tsi zoo li 316L stainless hlau muaj li cov khoom siv valve?

316L cov ntaub ntawv ntxiv molybdenum muaj pes tsawg leeg, yog li nws tiv taus dej ntsev, kua chloride thiab ntau cov kua qaub zoo dua li SS304. Nws cov pa roj carbon tsawg tsawg tsis txhob muaj teeb meem vuam corrosion. Nws ua haujlwm tsis tu ncua hauv marine, tshuaj lom neeg thiab lwm qhov chaw hnyav corrosive thiab kav ntev dua li cov hlau tsis huv.

Cov cwj pwm tseem ceeb

Yam khoom	Stainless hlau 316L Flanged Gate Valve	Cov khoom siv qia	A182 F304 / A182 F316 / 13Cr
Tsim qauv	API 6D / ASME B16.34	Khoom siv zaum	Stellite Hardfaced / PTFE / RPTFE
Lub ntsej muag rau ntsej muag Dimension	ASME B16.10	Hom Gasket	Kauv Wound Gasket / RTJ Gasket / Graphite Gasket
Flange Txheem	ASME B16.5 / ASME B16.47	Hom kev ua haujlwm	Handwheel, Iav Ua Haujlwm, Fais Actuator, Pneumatic Actuator, Hydraulic Actuator
Qib Siab	Chav Kawm 150/300/600/900/1500	Xaus kev sib txuas	Flanged, Threaded, Welded (BW / SW)
Nominal Loj (NPS)	1/2 "~ 48"	Hom tsim	Floating Pob / Trunnion Pob, Bolted Bonnet
Khoom siv lub cev	A216 WCB	Qhov kub thiab txias	-29 ℃ ~ 425 ℃
Khoom siv Bonnet	A216 WCB	Siv tau nruab nrab	Dej, roj, roj, chav, General Industrial Fluid
Nplaum / Disc Material	A216 WCB + Hardfaced / A105 + Hardfaced / F304 / F316	Kev xeem Standard	API 598 / Hydrostatic Plhaub & Seat Test

Lub flanged kev sib txuas qauv ua haujlwm li cas?

Ob lub valve thiab cov kav dej sib txuam tuaj nrog cov phaj flange. Peb tso lub gasket ntawm ob lub flanges thiab fasten lawv nruj nreem nrog bolts nyob ib ncig ntawm. Cov qauv tuav ruaj khov nyob rau hauv siab, thiab koj tuaj yeem cais lub valve yooj yim rau kev tu lossis tu. Nws haum rau cov kav dej loj thiab muaj qhov txaus ntshai tsawg dua li cov xov txuas.

Dab tsi ntawm cov kav dej haum rau qhov 316L rooj vag valve?

Nws yog dav siv nyob rau hauv scenes nrog corrosive nruab nrab: seawater desalination khoom, nkoj piping, nplua tshuaj ntau lawm kab, tshuaj pipelines, saline wastewater kho thiab pipelines nqa tsis muaj zog acid kua.

Puas yog lub valve no haum rau kev kho cov dej ntws ntim?

Tsis yog kiag li. Lub rooj vag valve tsuas yog txhais tau tias qhib tag nrho lossis txiav tawm tag nrho cov kav dej ntws. Ua kom nws ib nrab qhib yuav hnav lub sealing wedge hnyav, ua rau tsis tu ncua sab hauv to, ntxiv rau kev vibration thiab dej rauj uas ua rau tag nrho cov kav dej puas. Globe li qub yog qhov kev xaiv zoo yog tias koj xav tau kev khiav throttling.
