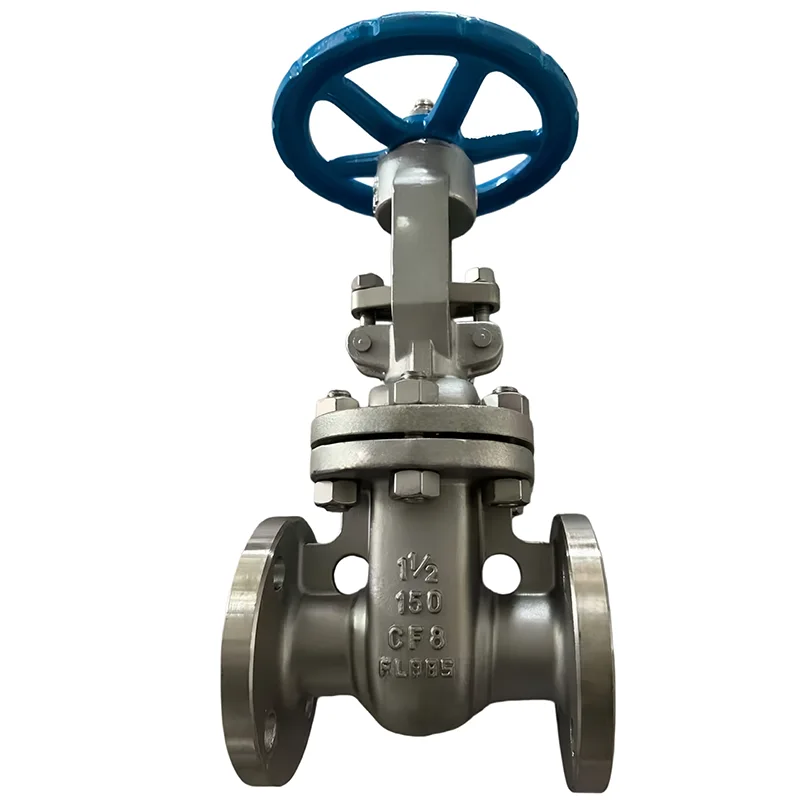

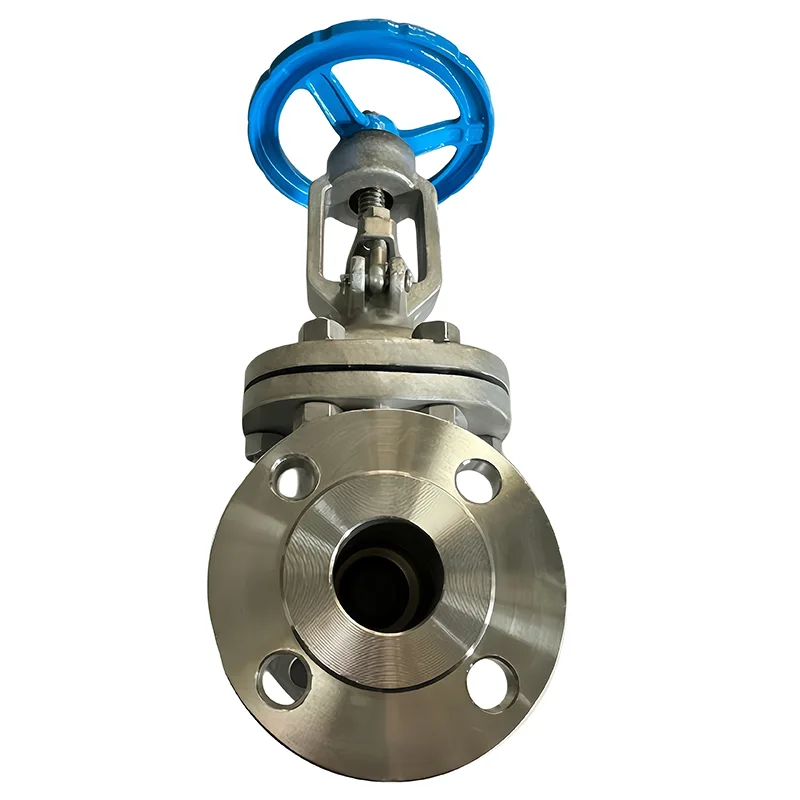

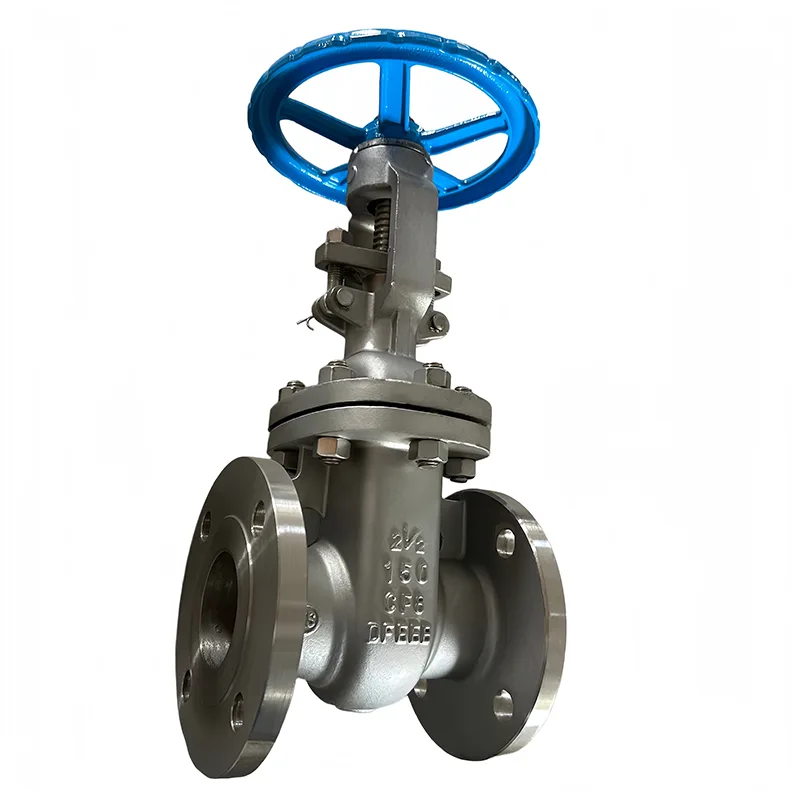

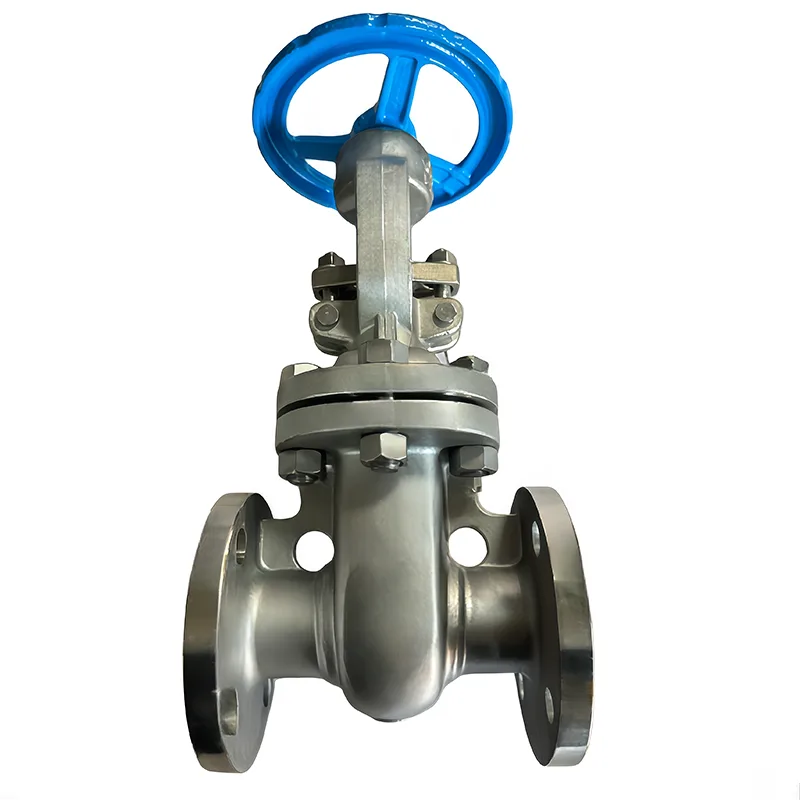

Stainless hlau API Flanged Gate Valve

Core Structure & Txoj Cai Ua Haujlwm

Lub Stainless Steel API Flanged Gate Valve feem ntau muaj cov khoom tseem ceeb xws li lub cev lub cev, lub kaus mom, lub rooj vag disc, qia, tes tuav (los yog tus actuator) thiab flange. Nws cov qauv tsim qauv ua raws li Asmeskas cov qauv kom ntseeg tau tias kev ua haujlwm ruaj khov.

Txoj Cai Ua Haujlwm

Tig lub handwheel (los yog tsav lub actuator) nqa thiab txo lub valve qia, yog li tswj qhov qhib thiab kaw ntawm lub qhov rooj disc thiab lub rooj zaum. Thaum lub rooj vag disc qhib tag nrho, cov xov xwm ntws los ntawm lub bore tag nrho yam tsis muaj kev cuam tshuam nrog kev poob siab tsawg. Thaum kaw tag nrho, nws haum nruj nrog lub rooj kom ua tiav kev kaw kom ntseeg tau.

Rooj vag Disc

Tsim nyob rau hauv wedge los yog parallel hom. Stainless hlau API Flanged Gate Valve feem ntau siv. Nws tuaj yeem them rov qab rau qhov deformation tshwm sim los ntawm kev hloov pauv kub, xyuas kom nruj sealing thiab tiv thaiv kev tawm tawm.

Valve Stem

Feem ntau siv OS&Y (Sab nraum Ntsia Hlau & Rising Stem) tsim. Cov qia xov raug nthuav tawm sab nraud ntawm lub cev lub cev, ua kom yooj yim rau kev kuaj xyuas lub valve qhib. Meanwhile, nws tiv thaiv threads los ntawm corroded los ntawm xov xwm thiab ncua kev pab cuam lub neej.

Flanged Connection: Ua raws li ANSI flange qauv xws li ASME B16.5. Nws tuaj yeem txuas ncaj qha rau ANSI pipeline systems, featuring yooj yim installation, ruaj khov kev twb kev txuas, thiab tsis kam mus rau siab kub thiab kub.

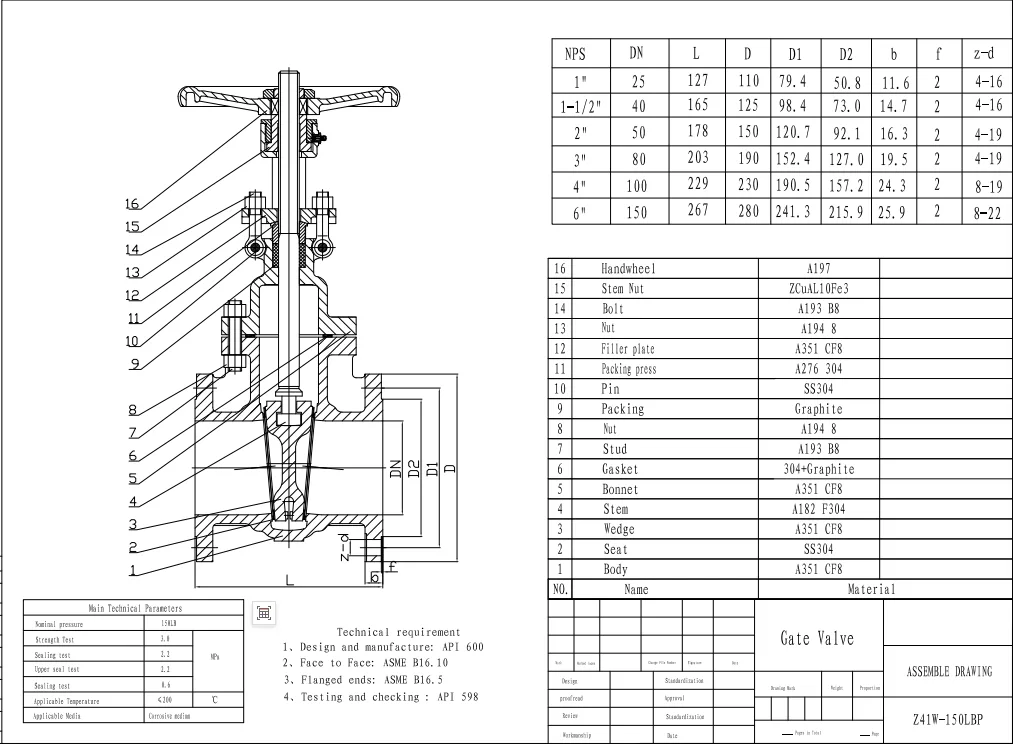

Technical Parameter

Kev ceev faj rau kev siv

Thaum lub sijhawm ua haujlwm ntawm Stainless Steel API Flanged Gate Valve, tsis txhob qhib thiab kaw lub valve nruj, thiaj li tiv thaiv kev puas tsuaj rau lub rooj vag disc thiab lub rooj zaum valve, uas yuav cuam tshuam rau kev sib khi.

Lubricate lub valve qia, handwheel thiab lwm yam tsis tu ncua kom tiv thaiv jamming thiab ncua lub neej kev pab cuam.

Xaiv cov khoom siv stainless hlau tsim nyog thiab sealing hom raws li cov yam ntxwv nruab nrab, kom tsis txhob muaj kev sib txhuam ntawm lub valve thiab xau los ntawm cov khoom tsis sib haum.

Exhibition Experience

Huadu tau koom nrog kev nthuav qhia hauv ntau thaj chaw thiab lub tebchaws, suav nrog Shanghai, Tebchaws Meskas, Lub Tebchaws Yelemees thiab lwm qhov chaw. Peb tau ua tiav kev lag luam thoob ntiaj teb thiab txhawb nqa peb cov khoom lag luam thoob ntiaj teb.

Huadu Company Advantages

Cov cuab yeej siv tau zoo thiab cov txheej txheem tshuaj ntsuam xyuas

Lub tuam txhab muaj high-precision CNC tshuab thiab machining chaw los xyuas kom meej qhov tseeb thiab zoo ntawm cov khoom tsim. Lub tuam txhab tau tsim ib qho kev pabcuam kev pabcuam nrog 24-teev kev pabcuam hotline los muab cov neeg siv khoom nrog kev muag khoom ua ntej, muag thiab kev pabcuam tomqab muag thiab kev pabcuam.

Pab neeg tshaj lij thiab muaj peev xwm ua tiav

Huadu muaj kev tshaj lij thev naus laus zis hauv cov khoom lag luam, tsim, tsim thiab tshuaj xyuas, thiab tseem muaj ntau yam txuj ci zoo hauv kev tswj hwm kev lag luam.

Mature Shipping txheej txheem thiab High-Quality Logistics Partners

Cov txheej txheem xa khoom loj, ua ke nrog cov neeg koom nrog kev xa khoom zoo, ua kom cov neeg siv khoom tau txais cov khoom lawv xav tau hauv lub sijhawm luv tshaj plaws.

Comprehensive Service System

Peb tsis tsuas yog tsim thiab muag Stainless Steel API Flanged Gate Valve, tab sis kuj tseem tsim kom muaj txiaj ntsig ntau dua rau peb cov neeg siv khoom. Lub tuam txhab tau tsim kom muaj kev pabcuam dav dav.
