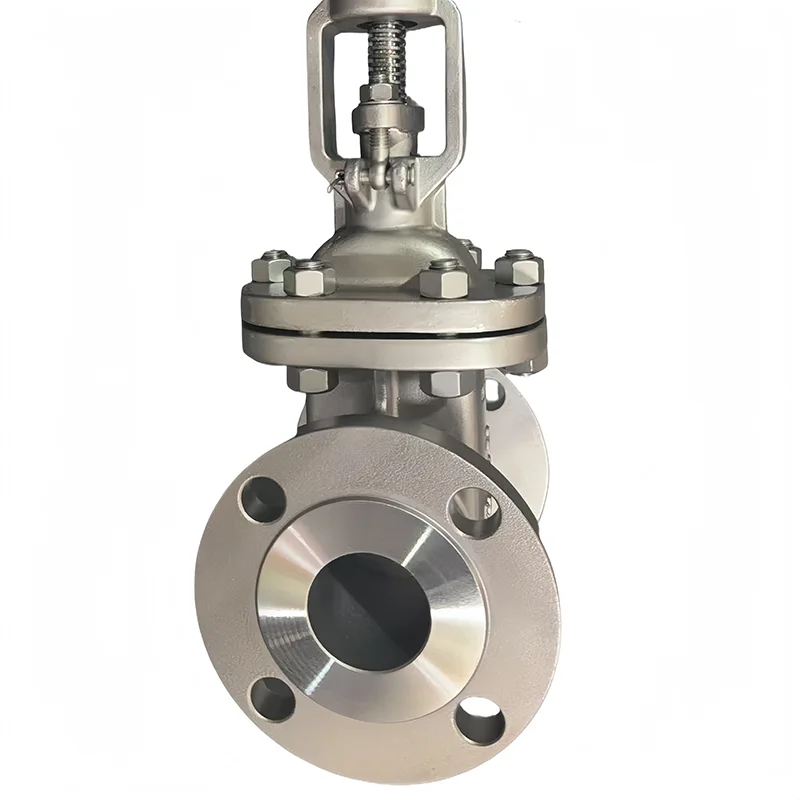

ANSI Rooj vag Valve

Raws li cov khoom muag zoo tshaj plaws ntawm Huadu Valves, ANSI Gate Valves tau siv dav hauv roj av, tshuaj, tshuaj, kev tiv thaiv ib puag ncig thiab lwm yam haujlwm. Peb lub Hoobkas muaj ntau ntau hauv Tshuag los daws koj cov kev xav tau ceev txhua lub sijhawm. Peb lub tuam txhab muab cov kev pabcuam logo customized, thiab thov caw koj tuaj yeem xaj cov qauv los kuaj xyuas cov khoom zoo.

Xa lus nug

Product Description

Cov yam ntxwv zoo

Huadu ANSI Gate Valves ua raws li Asmeskas cov qauv suav nrog API 600 thiab ASME B16.34, nrog qhov ntev ntsib ASME B16.10 thiab B16.5. Lawv muaj zog sealing kev ua tau zoo, kev nyab xeeb thiab kev ntseeg tau.

Nws txais yuav ib lub rooj vag hom hloov tau yooj yim, thiab dov bearings yog nruab rau qhov loj diameters kom yooj yim qhib thiab kaw.

Muaj ntau yam khoom siv lub cev (304, 316, thiab lwm yam).

Packing thiab gaskets tuaj yeem xaiv tau raws li kev ua haujlwm tiag tiag lossis cov neeg siv khoom xav tau.

Nws yog haum rau ntau yam pressures (Class 150 txog 900), kub thiab xov xwm xws li dej, chav, roj, nitric acid, acetic acid, muaj zog oxidizing media, urea, thiab lwm yam.

Muaj ntau hom kev ua haujlwm muaj: phau ntawv, bevel iav ua haujlwm, hluav taws xob actuated, thiab lwm yam.

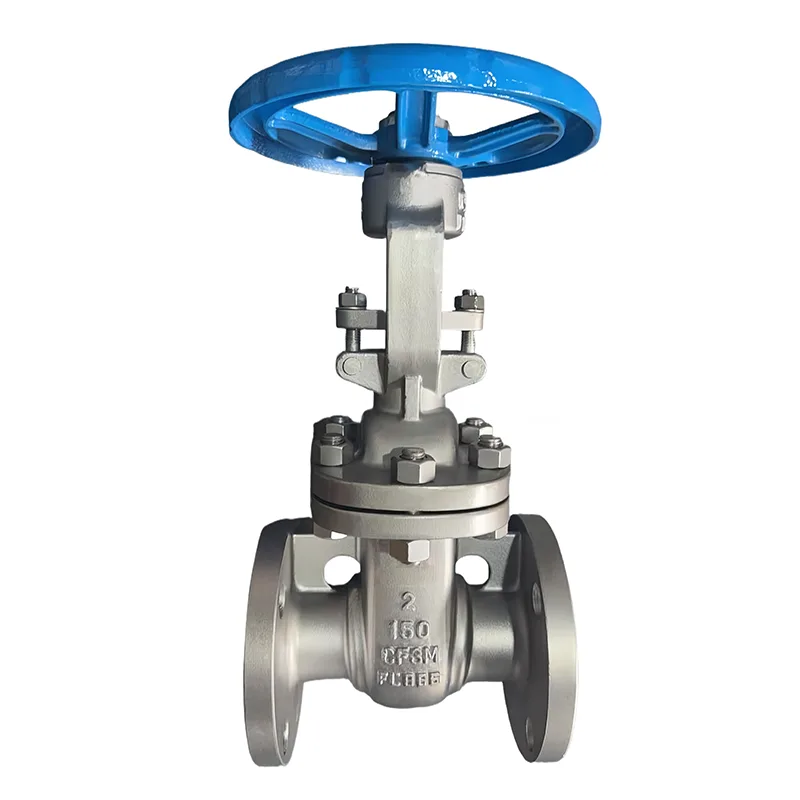

ANSI Gate Valve

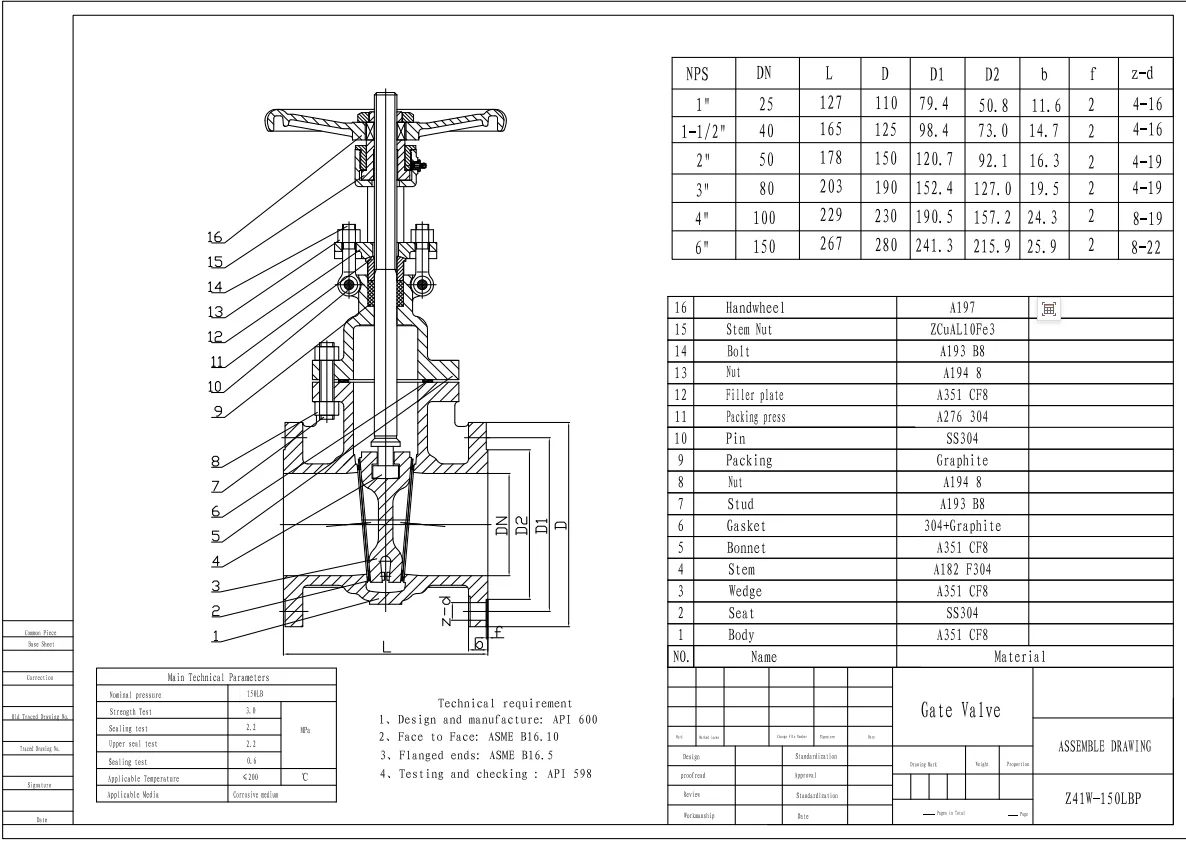

Technical Parameter

Yam khoom	ANSI Rooj vag Valve	Pin	SIB 304
Qib Siab	Chav Kawm 150/300/600/900/1500	Filler phaj	ASTM A351 CF8
Khoom siv lub cev	ASTM A351 CF8	Bolt	ASTM A193 B8
Khoom siv Bonnet	ASTM A351 CF8	Handwheel	A197
Npuag	ASTM A351 CF8	Txiv ntseej	ASTM A194 8
Qe	ASTM A182 F 304 Cov Lus Qhia	Ntim	Graphite
Stud	ASTM A193 B8	Packing caj pas	ASTM A 276 304 Cov

Koj puas muaj Tshuag txaus ntawm ANSI rooj vag li qub?

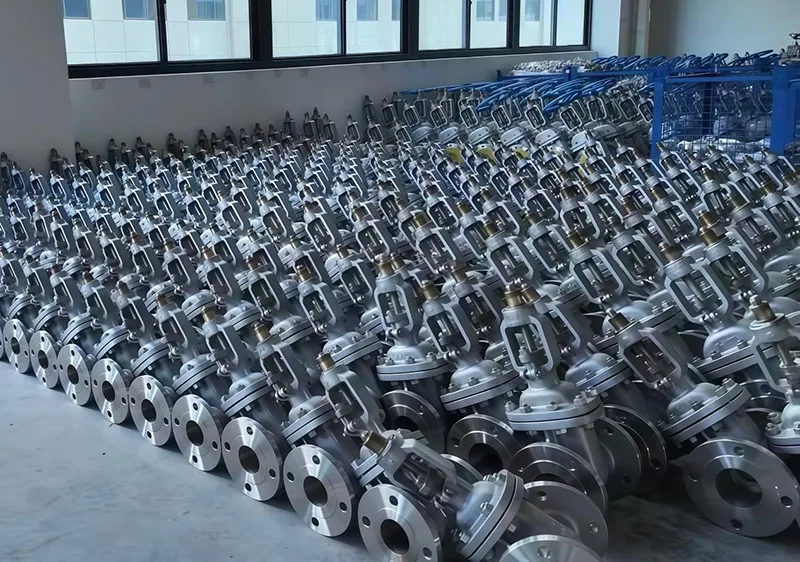

Tau kawg, peb muaj ntau ntawm lawv hauv Tshuag thiab tuaj yeem lav xa khoom sai.

Peb vam tias peb txoj kev koom tes tom ntej no yuav txhim kho kev ntseeg siab. Zoo siab txais tos koj los tso kev txiav txim.

Thov koj xav tiv tauj peb txhua lub sijhawm rau kev nug.

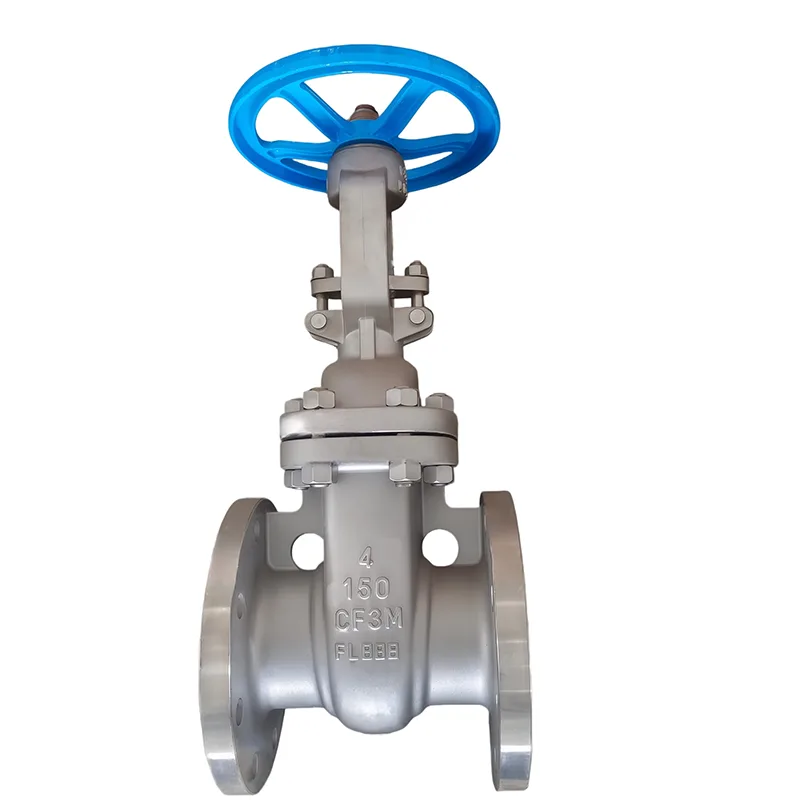

ANSI Gate Valve

Delivery ceev Guarantee

Kev paub tab thiab kev xa khoom zoo yog lub hauv paus ntawm peb cov kev pabcuam. Ntau ntawm peb cov neeg siv khoom tau paub txog peb cov khoom xa tuaj sai thiab txhim khu kev qha. Qhov no yog vim peb lub Hoobkas siv cov txheej txheem tsim khoom tsim tau zoo.

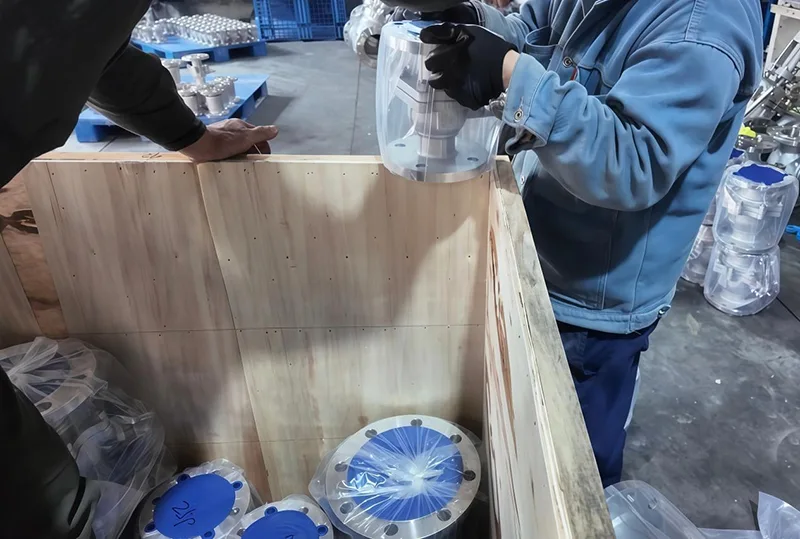

Tsuas yog qhia rau peb paub koj qhov chaw nres nkoj nyiam, thiab peb yuav npaj xa mus rau qhov chaw nres nkoj kom nyab xeeb rau koj.

Peb lub Hoobkas nyob hauv Wenzhou, Zhejiang Province, Suav.

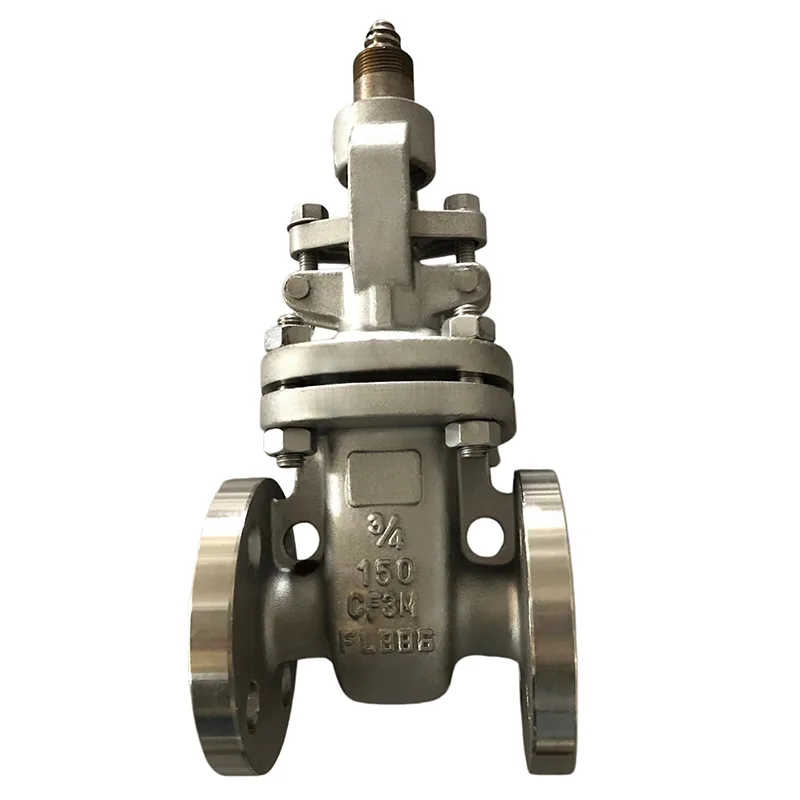

ANSI Gate Valve

Vim li cas koom tes ncaj qha nrog Huadu Valve?

Peb khiav peb cov kab ntau lawm, yog li peb tuaj yeem muab koj cov nqi sib tw heev uas tsis muaj tus nqi nruab nrab.

Peb kuj muab kev cai logo kev pabcuam kom haum rau koj cov kev xav tau.

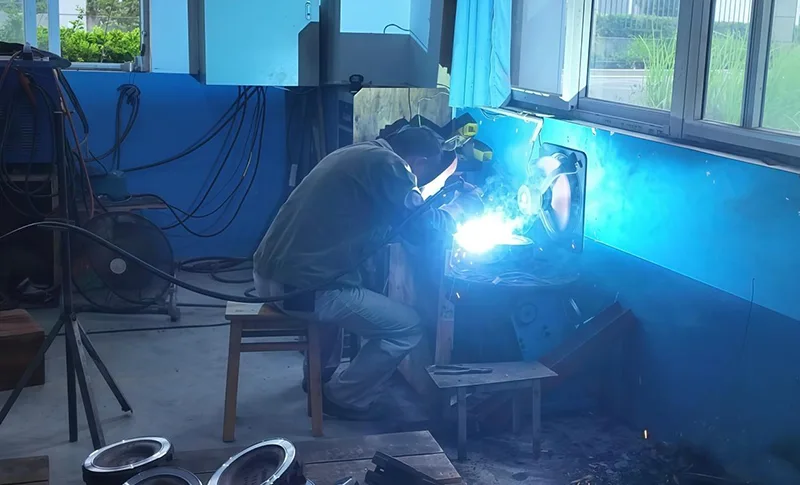

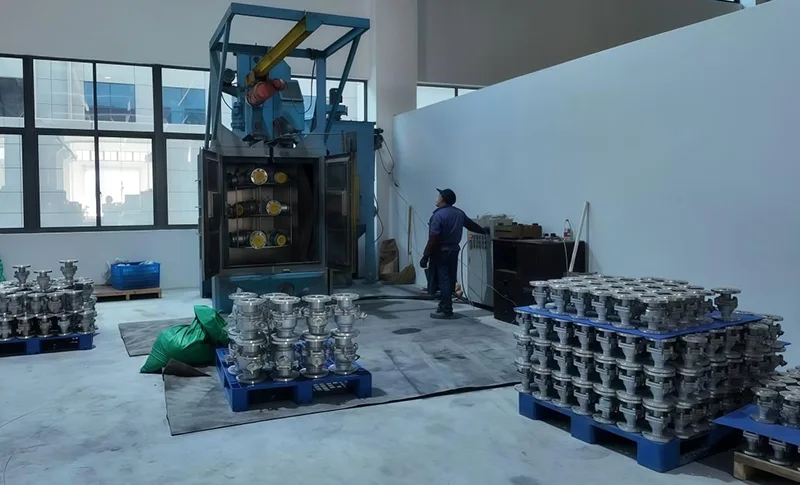

Peb tswj hwm nruj zoo tswj los ntawm casting, machining, sib dhos thiab kev sim siab tag nrho txoj kev xa khoom, ua kom txhua yam khoom zoo.

Ua tsaug rau peb cov kev npaj ntau lawm thiab xa khoom sai, peb tuaj yeem yooj yim lis tag nrho koj qhov kev txiav txim sai thiab loj.

Peb kuj muab cov kws tshaj lij thiab cov neeg mob kev cob qhia kev teeb tsa.

Koj tuaj yeem tshawb xyuas peb cov txheej txheem tsim khoom thiab cov khoom muag txhua lub sijhawm - txhua yam yog pob tshab.

Peb ib txwm npaj txhij rau koj xaj.

ANSI Gate Valve
