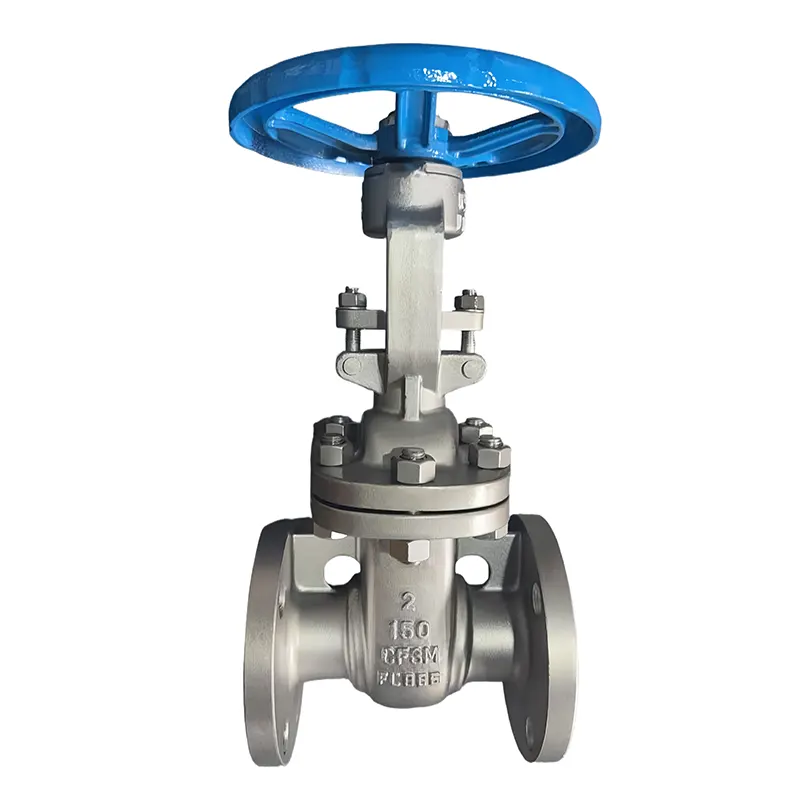

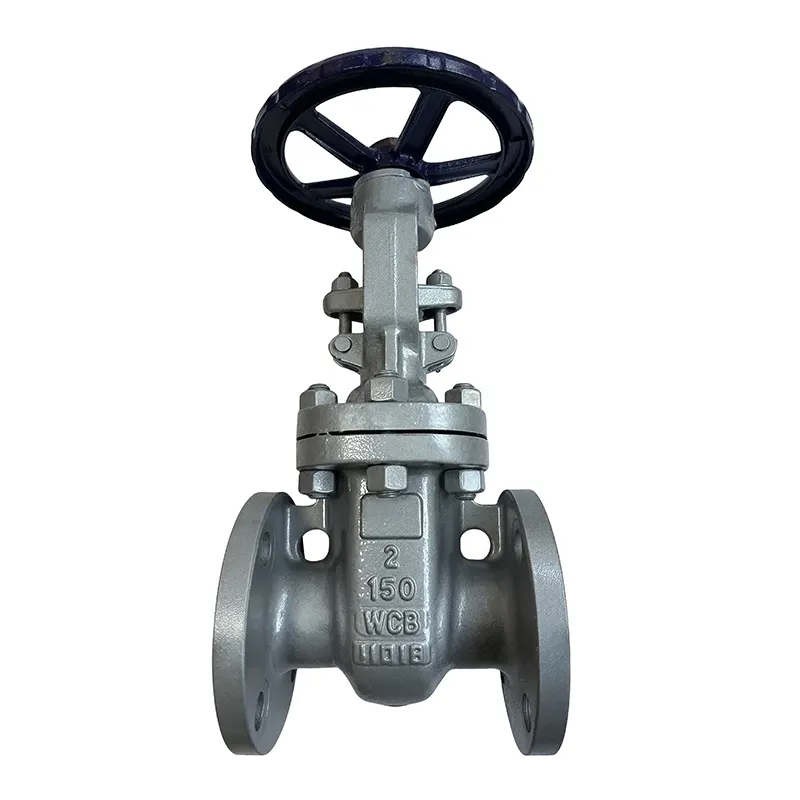

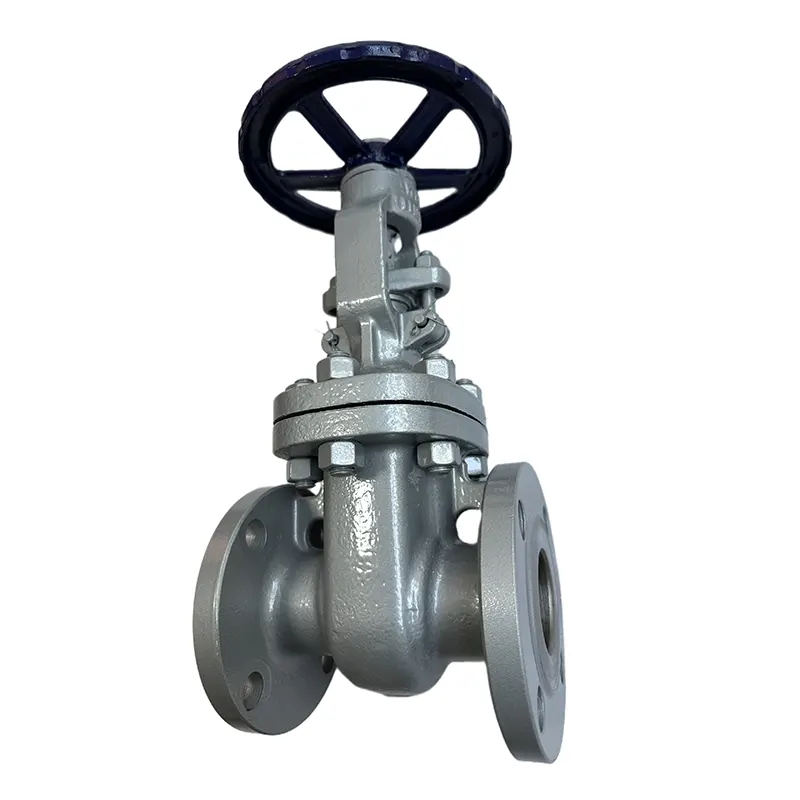

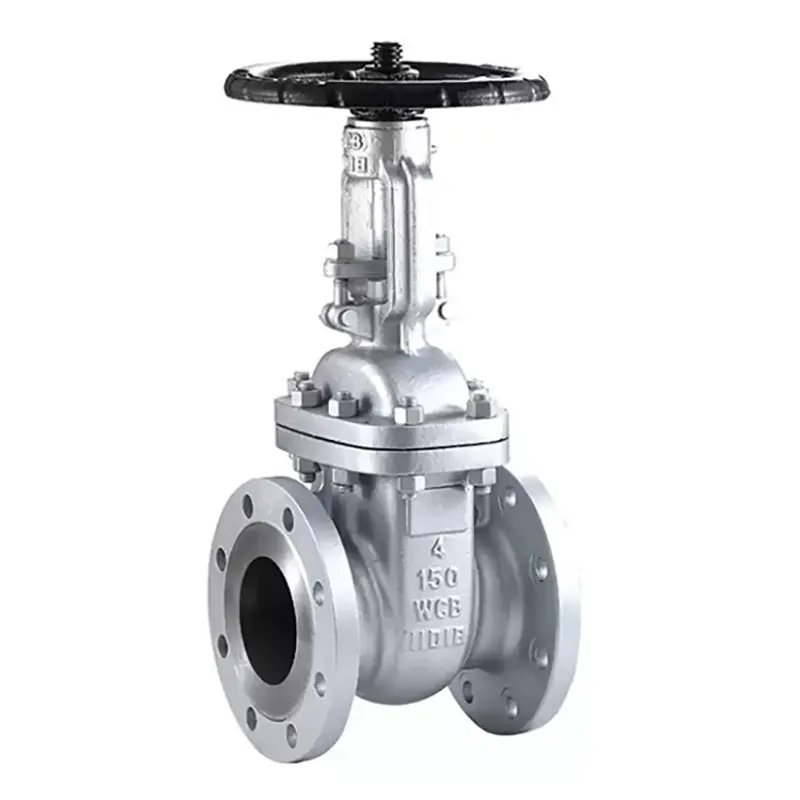

High-Pressure Rooj vag Valve

Huadu Valve Group yog nyob rau hauv Wenzhou, Suav teb, muab cov khoom ruaj khov, kev cia siab rau kev lag luam thoob ntiaj teb. Peb lub tuam txhab High-Pressure Gate Valve txais yuav ruaj khov A105 thiab WCB carbon steel kom sawv ntsug rau qhov siab thiab kub hloov pauv. Nruab nrog Stellite hardfaced wedges thiab tag nrho bore tsim, nws ua tiav nruj kaw nrog tsawg kawg nkaus tsis kam thiab ruaj khov rau lub sij hawm ntev, zoo tagnrho rau cov roj & roj refineries, thermal fais fab nroj tsuag thiab high-pressure tshuaj pipelines.

Xa lus nug

Product Description

Peb yog cov chaw tsim khoom muaj ntawv pov thawj nrog ISO thiab API daim ntawv pov thawj, nruab nrog cov kab ntau lawm thiab nruj QC tag nrho suav nrog API 598 hydrostatic tests. OEM thiab ODM customizations muaj nrog MOQ hloov tau rau kev sim thiab txiav txim ntau. Peb lub luag haujlwm hnyav lub rooj vag siab siab tau raug xa mus thoob ntiaj teb thiab tau qhuas los ntawm cov neeg siv khoom engineering.

Dab tsi ntawm cov xwm txheej ua haujlwm tuaj yeem ua rau lub rooj vag siab siab no hloov mus rau?

Lawv ua raws li tag nrho-bore rho tawm cov cuab yeej txiav tawm rau cov kav dej siab, siv dav hauv kev thauj mus los roj & roj, thermal fais fab nroj tsuag, tshuaj refineries thiab high-temperature chav kab. Lawv qhib tag nrho lossis kaw tag nrho rau kev saib xyuas cov kav dej thiab kaw thaum muaj xwm txheej ceev.

Cov cwj pwm tseem ceeb

Yam khoom	High-Pressure Rooj vag Valve	Cov khoom siv qia	A182 F304 / A182 F316 / 13Cr
Tsim qauv	API 6D / ASME B16.34 / API 600	Khoom siv zaum	Stellite Hardfaced / PTFE / RPTFE
Lub ntsej muag rau ntsej muag Dimension	ASME B16.10	Hom Gasket	Kauv Wound Gasket / RTJ Gasket / Graphite Gasket
Flange Txheem	ASME B16.5 / ASME B16.47	Hom kev ua haujlwm	Handwheel, Iav Ua Haujlwm, Fais Actuator, Pneumatic Actuator, Hydraulic Actuator
Qib Siab	Chav Kawm 150/300/600/900/1500	Xaus kev sib txuas	Flanged, Threaded, Welded (BW / SW)
Nominal Loj (NPS)	1/2 "~ 48"	Hom tsim	Los ntawm Conduit Gate, Khoom Wedge / Split Wedge, Bolted Bonnet / Welded Bonnet
Khoom siv lub cev	A216 WCB	Qhov kub thiab txias	-29 ℃ ~ 425 ℃
Khoom siv Bonnet	A216 WCB	Siv tau nruab nrab	Cov roj Crude, Natural Gas, Chav, Hydrocarbon, High-Pressure Industrial Fluid
Nplaum / Disc Material	A216 WCB + Hardfaced / A105 + Hardfaced / F304 / F316	Kev xeem Standard	API 598 / Hydrostatic Plhaub & Seat Test

Hom lub rooj vag valve no puas haum rau throttling lossis hloov siab ua haujlwm?

Tsis yog kiag li. Cov rooj vag li qub no yog tsim los rau kev sib cais ntawm kev tawm. Ib feem qhib lub valve yuav ua rau muaj kev puas tsuaj loj ntawm cov tawv tawv-alloy wedge sealing nto los ntawm qhov nruab nrab ntws nrawm, uas ua rau muaj qhov xau mus tas li. Tshwj xeeb regulating li qub yuav tsum tau rau kev txo siab thiab ntws tswj.

Dab tsi raw khoom mus rau hauv kev tsim cov rooj vag siab siab no?

Lub cev & lub kaus mom: Cam khwb cia A216 WCB, forged A105, qis-kub A350 LF2 carbon steel

Valve qia: A182 F304, A182 F316 lossis 13Cr stainless hlau

Wedge disc: Carbon steel substrate nrog Stellite nyuaj surfacing

Lub rooj zaum: Stellite / Inconel nyuaj alloy

Sealing gaskets: RTJ hlau nplhaib gaskets, graphite kauv qhov txhab gaskets

Hauv kev pabcuam siab siab, qhov zoo li cas ua rau lub rooj vag siab siab yog qhov kev xaiv zoo dua piv nrog cov pob li qub thiab npauj npaim li qub?

Ua ntej, lawv tag nrho ncaj qha los ntawm bore coj zero ntws tsis kam; pob li qub muaj cov kab noj hniav thiab cov npauj npaim li qub muaj qhov cuam tshuam sab hauv uas ua rau poob siab ntxiv.

Qhov thib ob, tag nrho-hlau nyuaj foob wedge qauv tuaj yeem dais ultra-high Class 2500 siab thiab kub siab, thaum lub pob mos mos thiab npauj npaim li qub yuav ua tsis tau raws li huab cua kub thiab siab loads.

Thib peb, lub cev hnyav-phab ntsa tuab thiab xaiv cov welded bonnets tshem tawm cov kev pheej hmoo ntawm kev xau, uas cov pob ntab ntab thiab wafer npauj npaim li qub tsis tuaj yeem daws rau qhov tseem ceeb ntawm cov hluav taws kub kub nruab nrab cov kav dej.

Plaub, lawv txhawb API 6D daim ntawv pov thawj kev nyab xeeb hluav taws, tus qauv kev nyab xeeb yuav tsum tau ua uas feem ntau npauj npaim li qub tsis tuaj yeem ua tau raws li.

Dab tsi yog cov qauv tsim qauv qhia qhov txawv ntawm tus qauv siab-siab rooj vag valve?

Puv los ntawm-conduit ncaj bore kom txo qis ntws

Khoom lossis cais wedge coated nrog Stellite alloy rau npuas-tight hlau-rau-hlau sealing

Thick-wall cam khwb cia / forged carbon steel lub cev, bolted los yog siab-resistant welded bonnet

RTJ hlau nplhaib flange gaskets rau txhim khu kev qha high-pressure sealing

Multi-txheej backseat qia foob kom tsis txhob tawm sab nraud nruab nrab

Ua raws li API 6D, ASME B16.34, dhau API 598 hydrostatic thiab kev nyab xeeb hluav taws

Muaj ntau txoj kev xaiv tsav: tes, iav lub thawv, hluav taws xob, pneumatic lossis hydraulic actuator

Hot Tags: High-Pressure Gate Valve, Chaw tsim tshuaj paus, tsum, Hoobkas, Suav teb
