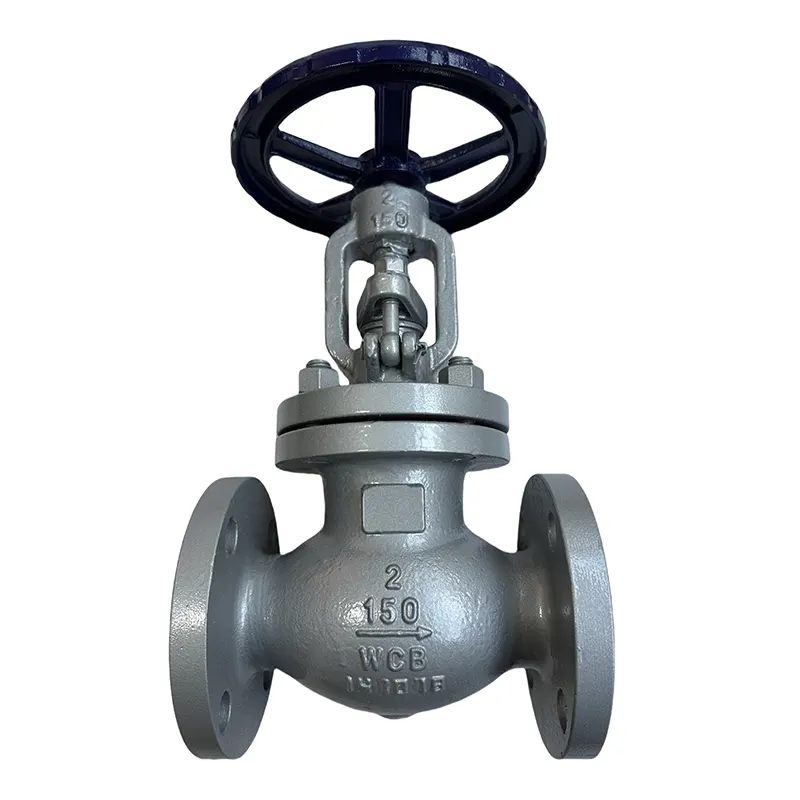

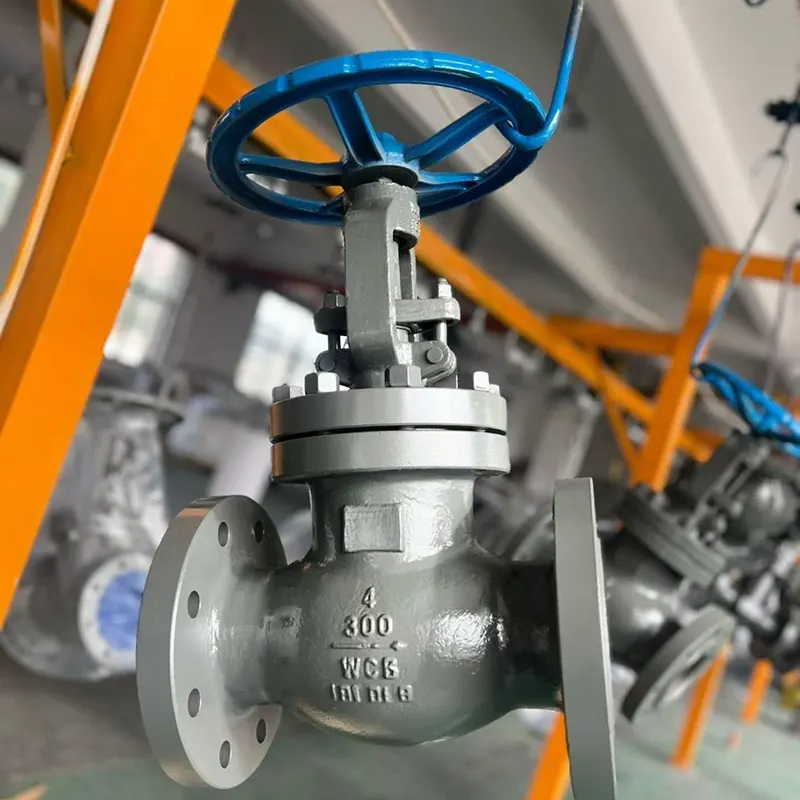

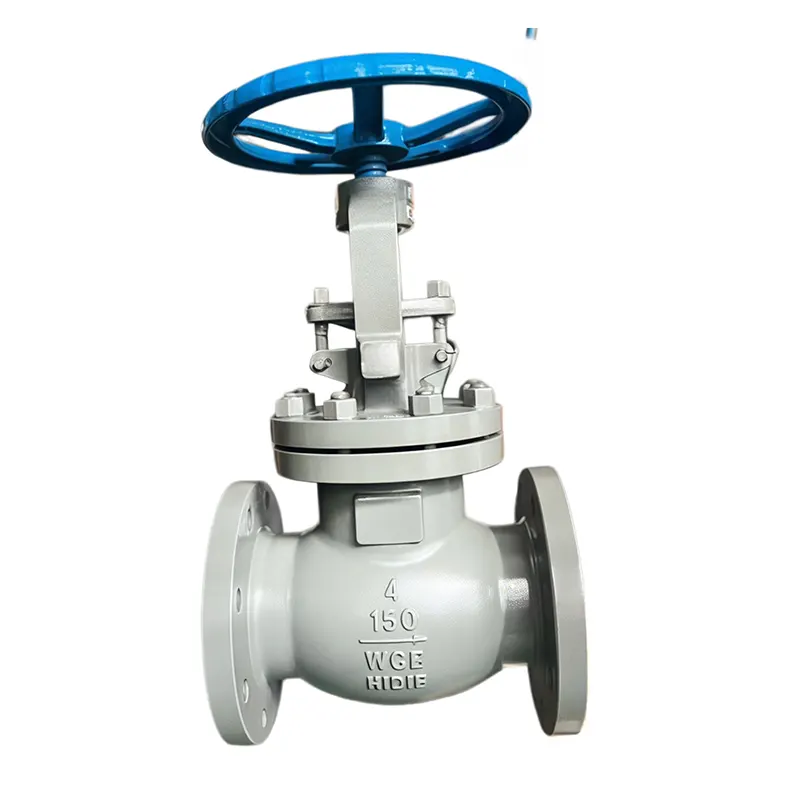

Wcb Globe Valve

Huadu Valve Group yog nyob rau hauv Wenzhou, Suav teb, peb ua cov khoom lag luam tawv uas ua tau ntev ntev. Peb nrov Wcb Globe Valve yog cam khwb cia los ntawm A216 WCB carbon steel, nws tuav tau zoo nyob rau hauv kev kub siab thiab kub kub ua hauj lwm ib puag ncig. Nws los nrog ib tug nkhaus disc thiab bolted valve bonnet, cia koj kho txaus txaus thaum tag nrho txiav tawm tawm yam tsis muaj leaks. Kev sib cais tsim kuj ua rau kev tu txhua hnub thiab kho kom yooj yim. Nws haum zoo kawg nkaus rau lub zog thermal, refinery thiab chav kav dej.

Xa lus nug

Product Description

Peb yog ib lub tuam txhab muaj kev paub txog valve tau ntawv pov thawj nrog ISO, CE thiab API cov qauv. Peb ua tiav machining kab thiab nruj kev soj ntsuam tag nrho cov txheej txheem. Kev cai OEM & ODM kev daws teeb meem muaj, thiab peb tuaj yeem kho MOQ kom haum rau cov neeg yuav khoom sib txawv. Peb cov khoom ruaj khov tau raug xa mus thoob ntiaj teb thiab tau txais kev ntseeg ruaj khov los ntawm cov neeg koom tes hauv kev lag luam.

Dab tsi yog qhov txwv thiab qhov tshwj xeeb ntawm WCB li qub?

Peb lub ntiaj teb Wcb li qub ua raws li ASME thiab GB tus qauv specs, nrog cov chav kawm siab ntawm Chav Kawm 150 txog rau Chav Kawm 1500. Kev ua haujlwm kub yog li ntawm -29 ° C txog 425 ° C yam tsis poob kev ruaj ntseg. Qhov ntau thiab tsawg npog NPS 1/2 txog NPS 48. Lub valve lub cev yog cam khwb cia A216 WCB carbon steel, ua ke nrog F6 trim thiab PTFE / Stellite sealing rau txhim khu kev qha kaw nyob rau hauv rated siab.

Cov cwj pwm tseem ceeb

Yam khoom	WCB Globe Valve	Cov khoom siv qia	A182 F304 / A182 F316 / 13Cr
Tsim qauv	API 6D / ASME B16.34	Khoom siv zaum	Stellite Hardfaced / PTFE / RPTFE
Lub ntsej muag rau ntsej muag Dimension	ASME B16.10	Hom Gasket	Kauv Wound Gasket / RTJ Gasket / Graphite Gasket
Flange Txheem	ASME B16.5 / ASME B16.47	Hom kev ua haujlwm	Handwheel, Iav Ua Haujlwm, Fais Actuator, Pneumatic Actuator, Hydraulic Actuator
Qib Siab	Chav Kawm 150/300/600/900/1500	Xaus kev sib txuas	Flanged, Threaded, Welded (BW / SW)
Nominal Loj (NPS)	1/2 "~ 48"	Hom tsim	Ncaj nraim los ntawm lub ntiaj teb / Y-hom Globe, Bolted Bonnet
Khoom siv lub cev	A216 WCB	Qhov kub thiab txias	-29 ℃ ~ 425 ℃
Khoom siv Bonnet	A216 WCB	Siv tau nruab nrab	Dej, roj, roj, chav, General Industrial Fluid
Nplaum / Disc Material	A216 WCB + Hardfaced / A105 + Hardfaced / F304 / F316	Kev xeem Standard	API 598 / Hydrostatic Plhaub & Seat Test

Lawv tsim thiab siv nyob qhov twg?

Tag nrho peb Wcb ntiaj teb li qub tau ua tiav ntawm peb lub Hoobkas hauv Wenzhou, Tuam Tshoj, nrog rau hauv tsev machining thiab nruj zoo kuaj. Lawv tswj thiab thaiv cov xov xwm ntws ntawm cov kav dej nqa cov pa, roj, roj thiab dej huv. Cov chaw thov muaj xws li cov chaw tsim hluav taws xob, petrochemical refineries, chaw nres tsheb cua sov thiab cov txheej txheem kev lag luam.

Lawv piv rau WCC lossis Stainless Hlau (CF8M) li cas?

WCB sawv ntsug zoo rau qhov kub siab, uas ua rau nws zoo tagnrho rau cov kav dej kub thiab dej kub. WCC, ntawm qhov tod tes, ua haujlwm zoo tshaj plaws rau cov ntawv thov kub qis. Thaum stacked tiv thaiv CF8M stainless hlau, WCB carbon steel nqi tsawg heev thaum tseem tuav lub siab ntseeg tau. Kev lag luam tawm yog CF8M tiv thaiv cov tshuaj corrosive thiab kua dej, whereas WCB yuav corrode nyob rau hauv cov cheeb tsam hnyav.Rau qhov kub thiab txias tsis-corrosive ua hauj lwm tej yam kev mob, WCB ntiaj teb li qub yog qhov siv tau ntau tus nqi-txuag xaiv.

Tus qauv tsim dab tsi koj Wcb ntiaj teb valve txais yuav?

Peb lub ntiaj teb WCB valve siv lub bolted bonnet thiab parabolic disc qauv. Qhov kev tsim no ua tiav kev hloov kho kom raug thiab kaw ntom nti, thiab cov qauv sib cais kuj ua rau muaj kev yooj yim zoo rau kev tshem tawm txhua hnub thiab kev saib xyuas yam tsis tau tshem tag nrho lub valve los ntawm cov kav dej.

Cov ntawv pov thawj dab tsi ua koj Wcb ntiaj teb li qub muaj?

Tag nrho peb WCB ntiaj teb li qub dhau los ntawm lub Hoobkas nruj thiab tuav tiav ISO, CE thiab API daim ntawv pov thawj. Txhua lub valve tiav yuav dhau los ntawm lub plhaub siab kuaj thiab lub rooj sib khi ua ntej xa khoom kom tau raws li cov qauv kev lag luam thoob ntiaj teb.

Koj puas tuaj yeem pab txhawb kev pabcuam rau Wcb ntiaj teb li qub?

Peb muab tag nrho OEM thiab ODM kev cai ua haujlwm. Peb tuaj yeem hloov cov qauv flange, cov ntaub ntawv sib khi, cov haujlwm ua haujlwm thiab lub valve xim xim kom haum rau koj qhov kev xav tau ntawm qhov chaw. Peb kuj lees txais kev txiav txim me me nrog MOQ hloov tau.

Puas yog WCB ntiaj teb valve muaj kev taw qhia kev teeb tsa?

Yog, nruj me ntsis rau nruab los ntawm cov xub ntws ntawm lub cev valve (nruab nrab ntws los ntawm hauv qab disc mus rau sab sauv). Rov qab installation yuav ua rau tsis zoo sealing, hnyav ua haujlwm torque thiab nruab nrab backflow. Valve qia yuav tsum nyob ntsug.

Kuv puas tuaj yeem siv tus ciaj ntswj los yuam lub tes tuav rau qhib / kaw?

Txwv tsis pub. Tshaj torque yuav khoov valve qia, tawg lub kaus mom los yog puas tsuaj rau sab hauv sealing qhov chaw. Ua haujlwm lub log maj mam thiab maj mam.

Yuav ua li cas txuas ntxiv kev pab cuam lub neej ntawm WCB ntiaj teb valve?

1. Lubricate valve qia peb lub hlis twg kom hloov tau yooj yim;

2. Rov ua kom nruj flange bolts tom qab cua sov kub;

3. Tsis tu ncua qhib & kaw qhov rooj kaw kom tsis txhob xeb sab hauv;

4. Tshawb xyuas cov ntim ntim thiab flange gasket leakage txhua hli.
