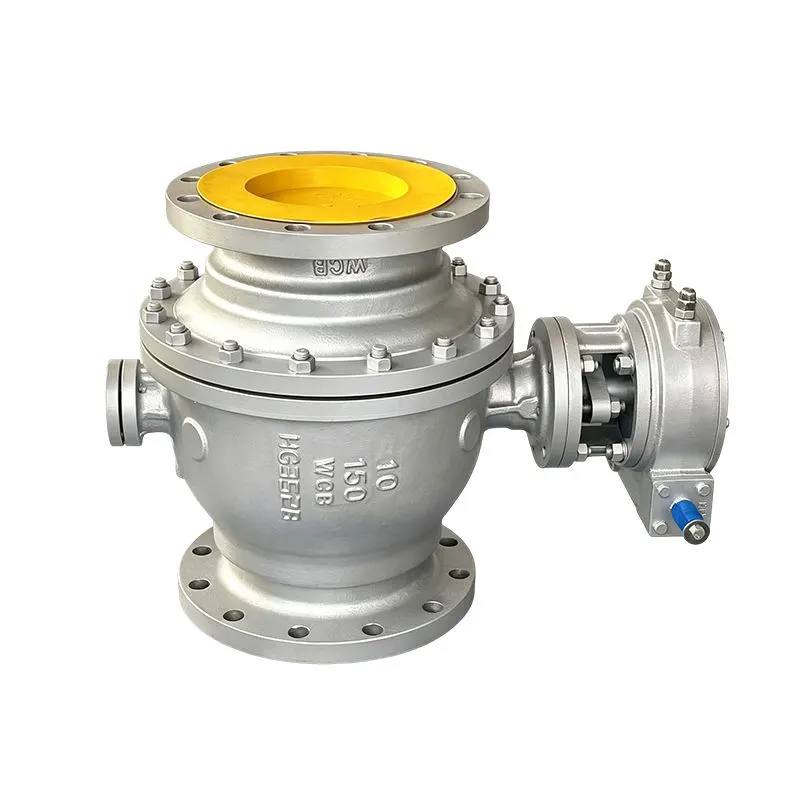

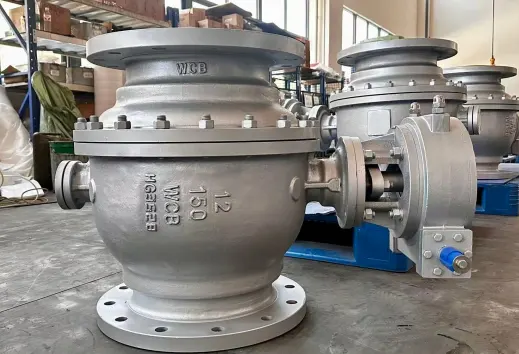

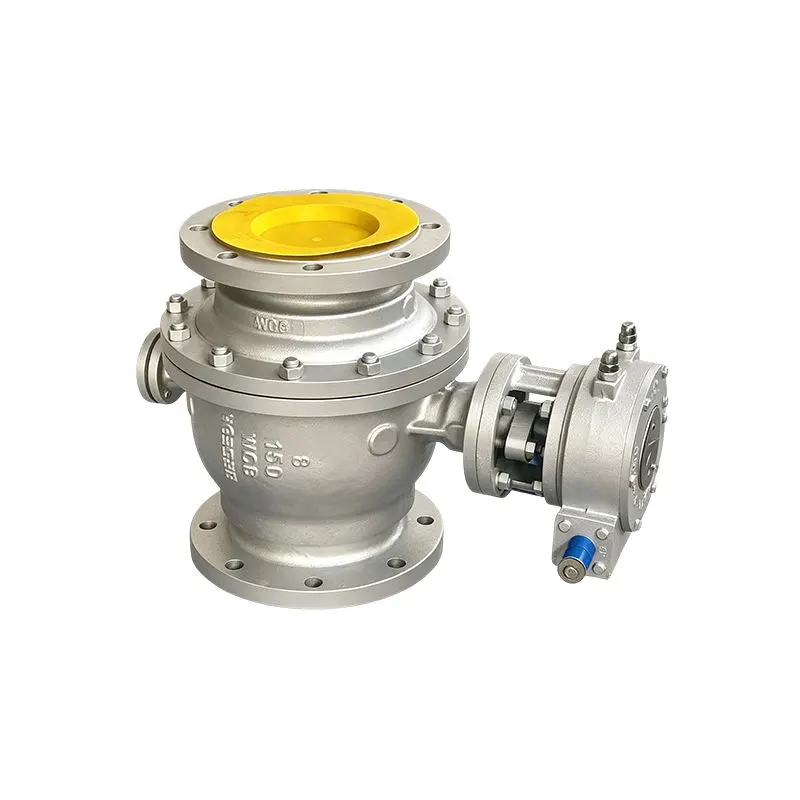

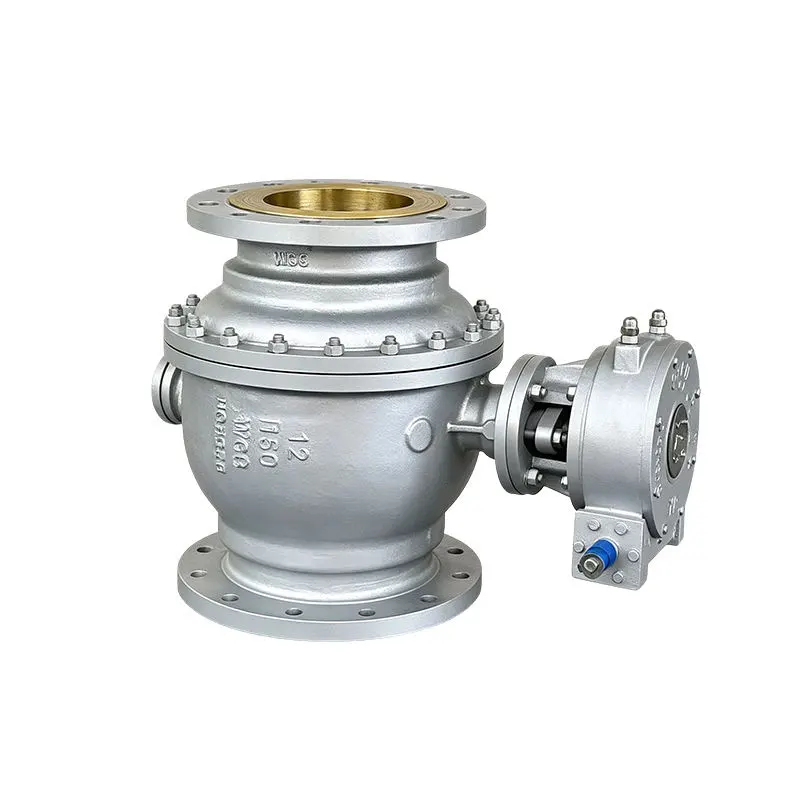

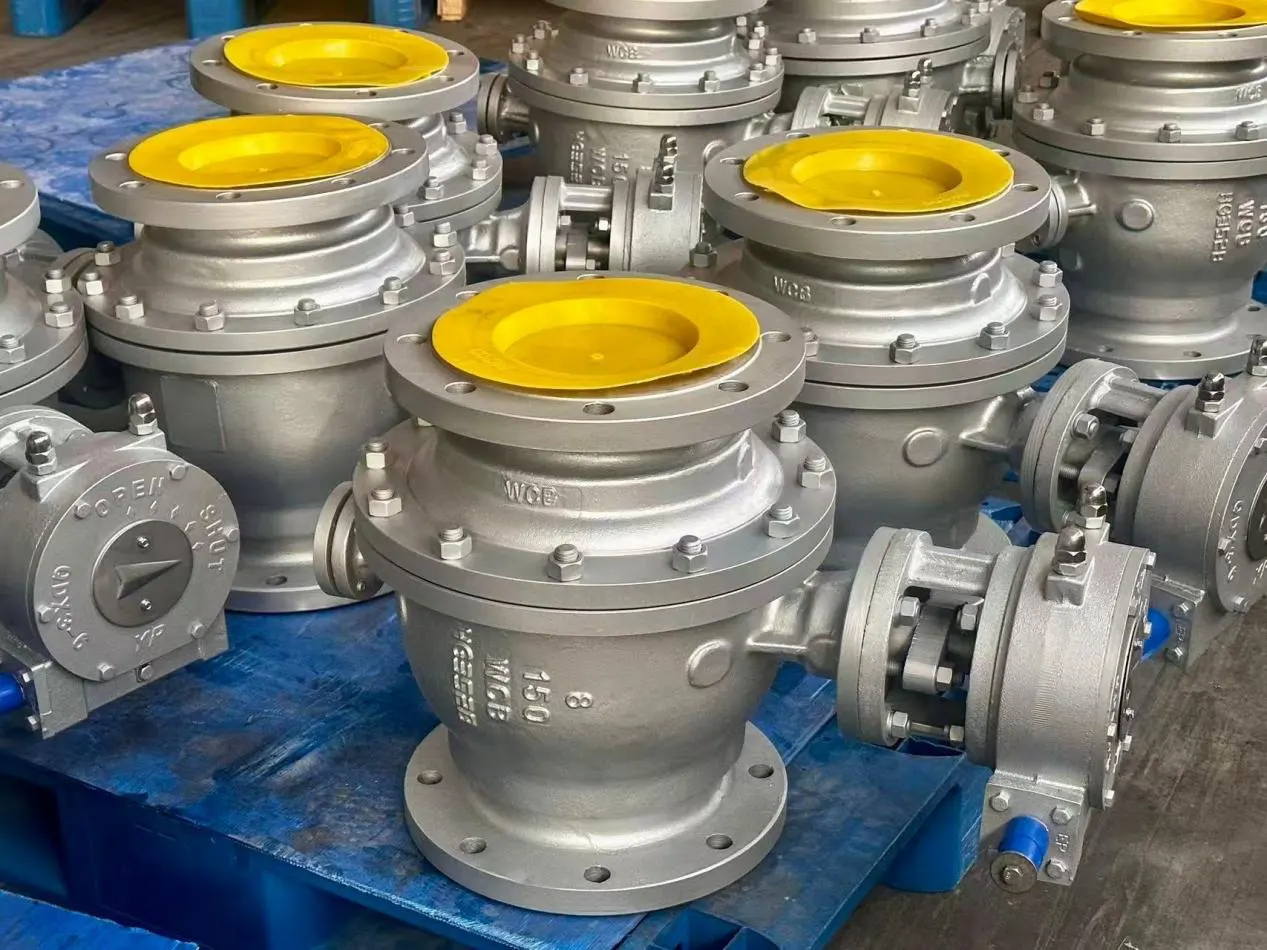

WCB Carbon Steel Fixed Pob Valve

WCB Carbon Steel Fixed Ball Valve yog lub luag haujlwm hnyav ua haujlwm valve tsim rau kev sib cais cov kav dej thiab tswj kev ntws, tsim los ntawm Huadu Valve Group. Nws txais yuav trunnion tsau pob tsim thiab A216 WCB carbon steel cov ntaub ntawv, zoo haum rau kev kub siab tseem ceeb cov kav dej ua haujlwm.

Qhov kev lag luam valve no ua tau zoo nyob rau hauv kev pabcuam siab txuas ntxiv thiab kev ua haujlwm ntev mus ntev, xaiv dav dav rau cov haujlwm uas sealing kev nyab xeeb thiab kev pab lub neej ntev yog qhov tseem ceeb.

Raw Material & Structure Advantages

Hwm A216 WCB Carbon Steel Lub Cev

WCB Carbon Steel Fixed Ball Valve yog cam khwb cia los ntawm A216 WCB carbon steel, nqa cov txiaj ntsig zoo:

-High mechanical zog thiab zoo heev cuam tshuam tsis kam

-Zoo kub adaptability tiv thaiv lub siab surge thiab dej rauj

-Txoj phab ntsa tuab txaus rau kev pabcuam hauv chav kawm siab

-Rigid casting tshuaj xyuas kom tshem tawm cov teeb meem sab hauv thiab saum npoo

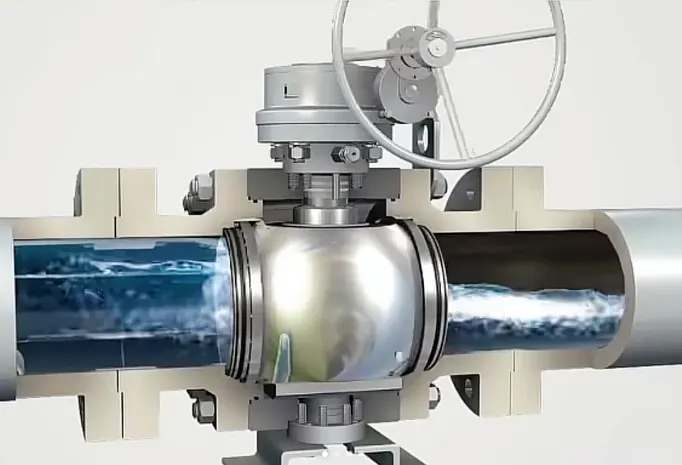

Trunnion Mounted Fixed Pob Structure

Qhov sib txawv ntawm cov pob valve zoo tib yam, peb lub pob trunnion tsau pob tsim hloov pauv feem ntau cov raj xa dej siab mus rau sab sauv thiab sab nraub qaum. Lub pob tseem kaw nyob rau hauv txoj hauj lwm, yog li lub rooj zaum valve tsuas yog muaj kev sib cuag nrog lub zog tsawg. Nws zoo heev txo lub rooj zaum txawm tias nquag qhib-kaw cycles nyob rau hauv kev kub siab. Kev ruaj ntseg bi-directional sealing tiv thaiv kom tsis txhob muaj kev kub ntxhov, txhim kho kev nyab xeeb rau cov txheej txheem tseem ceeb.

Optimized Sealing & Kev Tsim Kho Kev Nyab Xeeb

Lub caij nplooj ntoos hlav loaded floating lub rooj sib dhos yog nruab rau WCB Carbon Steel Fixed Ball Valve. Ua hauv springs them nyiaj rau kev hnav me me tom qab ntau txhiab qhov kev ua haujlwm los txhawb nqa kev kaw ntom nti. Anti-blow tawm qia ua haujlwm raws li tus qauv kev nyab xeeb tiv thaiv kev kub ntxhov tam sim ntawd. Multi-layer graphite packing minimizes fugitive emissions nyob ib ncig ntawm qia khoob. Tag nrho cov sealing Cheebtsam yog tshwj xeeb sib phim rau kev kub siab, nruab nrab kub ua hauj lwm xov xwm es tsis txhob ntawm generic spare qhov chaw.

Cov cwj pwm tseem ceeb

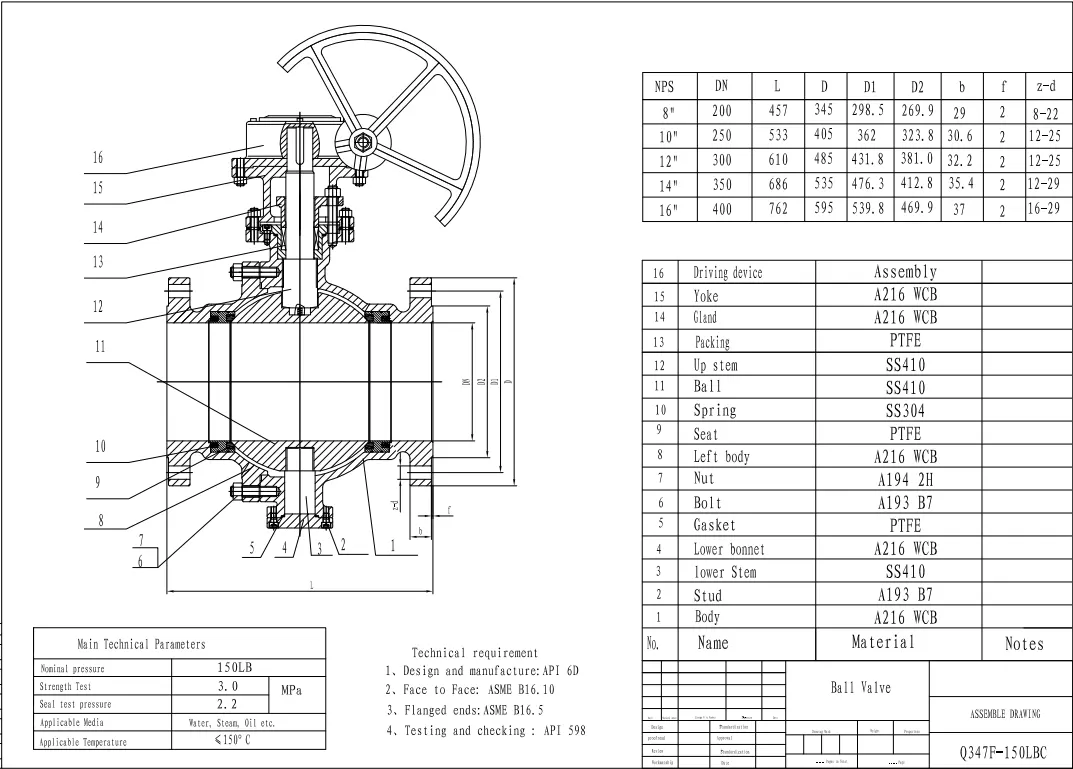

Technical Specifications

Standard Parameters

Loj: DN50-DN1200

Kev ntsuas siab: Class150-Class2500

Khoom siv: A216 WCB carbon steel

Qauv: Trunnion mounted tsau pob valve

Qhov kub thiab txias: -29 ℃ ~ 425 ℃

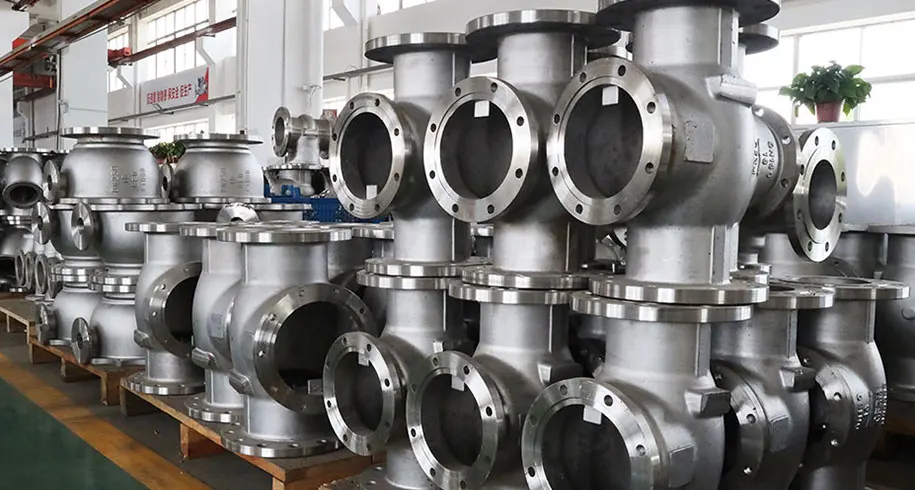

Kev tsim khoom

WCB Carbon Steel Fixed Pob Valve mus txog:

- Tsim nyog A216 WCB casting ntau lawm

- Kev kho cua sov rau cov khoom siv ruaj khov

- CNC precision machining rau sealing nto

- Sib sau ua ke nrog kev sib khi sealing thiab actuator Cheebtsam

Kev ua haujlwm nta

- Tsawg hnav trunnion qauv rau kev caij tsheb kauj vab nquag

- Txhim khu kev qha ob-directional nruj kaw

- Tsawg lub rooj zaum tsis ua haujlwm nyob rau hauv cov kav dej siab txuas ntxiv

- Tau tshaj nrog ntau yam kev xaiv actuator: phau ntawv iav, pneumatic, hluav taws xob

- Tsim los rau kev pabcuam puv-qhib / puv-kaw kev pabcuam

Cov cheeb tsam thov

Roj & Roj Kev Lag Luam

WCB Carbon Steel Fixed Ball Valve yog siv dav hauv:

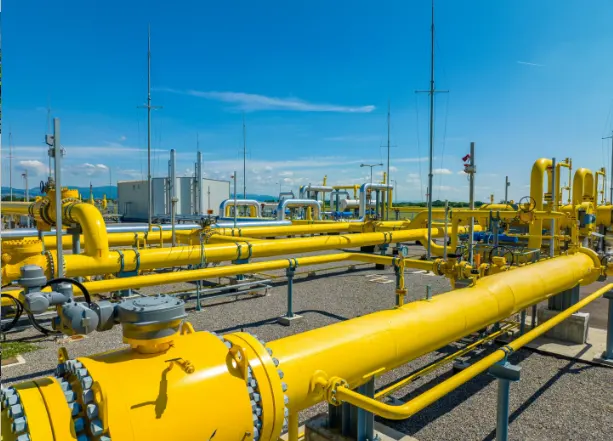

-Natural gas kis tau tus mob loj pipelines

- Roj refinery txheej txheem kab

- Cov chaw hloov pauv roj av

- Chaw nres tsheb roj sib sau ua ke piping systems

Kev lag luam Petrochemical

- Kev kub siab petrochemical txheej txheem loops

- Txheej txheem chav tsev tseem ceeb cais cov kav dej

- Nruab nrab kub tsis-corrosive & me-corrosive kua circuits

Kev lag luam fais fab

- Fais fab cog cov txheej txheem tseem ceeb kav

- Heavy-duty industrial cog voj systems

General Industrial Projects

- Tshiab tsim EPC project pipeline pob

- Kev tsim kho cov kav dej uas twb muaj lawm & kev ua haujlwm rov qab

- Cov chaw lag luam uas muaj kev saib xyuas yooj yim thiab kev nyab xeeb siab

Kev Tswjhwm Zoo & Kev Pabcuam Kev Muag Khoom

Raws li cov chaw tsim khoom muaj ntawv pov thawj nrog ISO, CE thiab API daim ntawv pov thawj, txhua WCB Carbon Steel Fixed Ball Valve tau ua tiav cov kev sim hauv lub Hoobkas ua ntej xa khoom xa tuaj, suav nrog kev sim hydrostatic plhaub, kuaj lub rooj zaum thiab tshuaj xyuas qhov ntev. Kev kuaj tag nrho yog siv rau cov dej num hnyav loj loj yam tsis muaj kev kuaj xyuas. Cov ntaub ntawv pov thawj raw khoom, kev tshuaj xyuas casting, kev saib xyuas kev sib dhos thiab kev xeem tiav valve khiav los ntawm tag nrho cov khoom ua haujlwm. Cov ntaub ntawv pov thawj xeem thiab cov ntaub ntawv soj ntsuam tuaj yeem muab rau kev sib tw thiab qhov chaw txais.

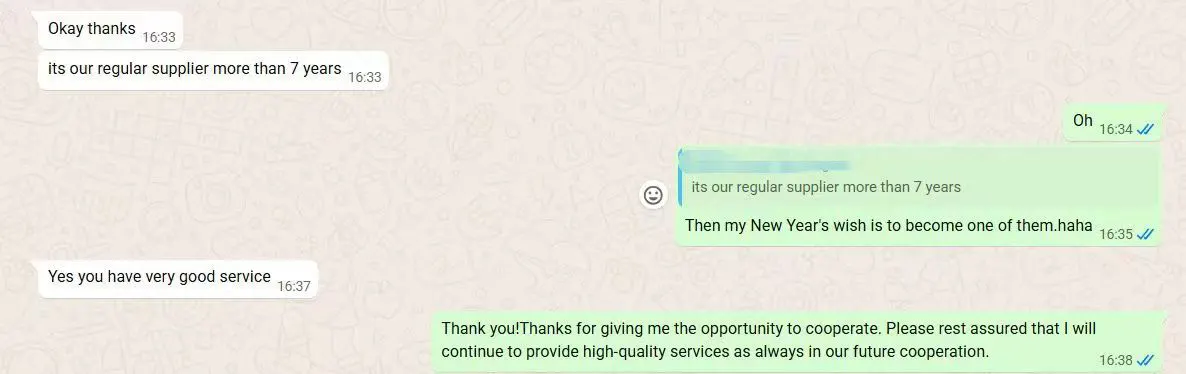

Cov kev xaiv hloov tau yooj yim muaj nyob rau hauv kev ua haujlwm ntawm qhov chaw, npog ntau qib siab, kev sib khi cov khoom sib txuas thiab ntau hom kev ua haujlwm. Flexible MOQ txhawb nqa cov qauv kuaj, cov khoom me me batch khoom thiab cov khoom ntim loj loj. Huadu Valve Group's WCB tsau pob li qub raug xa tawm thoob ntiaj teb thiab tau txais kev xaj rov qab los ntawm cov neeg siv khoom thoob ntiaj teb.

Lub rooj zaum thiab qia sealing ua li cas rau lub ntiaj teb qhov chaw ruaj khov?

Peb siv lub caij nplooj ntoos hlav loaded floating lub rooj tsim rau lub pob valve. Internal springs kom lub rooj zaum nias tiv thaiv pob nto. Thaum hnav me me tshwm sim tom qab ntau txhiab qhov kev ua haujlwm, cov springs tuaj yeem them nyiaj rau qhov khoob me me, tswj xyuas kev sib khi zoo thaum lub sijhawm. Anti-blow tawm qia qauv yog tsim los ua tus qauv kev nyab xeeb. Nyob rau hauv kev npaj txhij txog lub raj xa dej siab spikes, nws tiv thaiv qia los ntawm tshuab tawm. Multi-layer graphite packing yog haum rau qia sealing, kom tsis txhob me me fugitive emissions nyob ib ncig ntawm qia. Cov khoom sib khi no tsis yog cov khoom pheej yig pheej yig; lawv raug xaiv kom phim lub siab kub thiab nruab nrab kub ua haujlwm.
