Stainless hlau Globe Valve Flanged kawg

Peb yog cov kws tshaj lij valve tsim tuav ISO, CE thiab API cov ntawv pov thawj. Peb txais yuav cov cuab yeej ua haujlwm zoo thiab cov qauv tshuaj ntsuam xyuas nruj heev. Peb kuj lees txais OEM thiab ODM xaj nrog kev txiav txim siab tsawg kawg nkaus. Peb cov stainless hlau ruaj ruaj li qub tau xa tawm thoob ntiaj teb thiab tau txais kev ntseeg zoo ib yam los ntawm cov neeg siv khoom thoob ntiaj teb.

Cov ntaub ntawv twg yog siv?

Peb Stainless Hlau Globe Valves Flanged End tuaj nrog SS304 lossis SS316 cam khwb cia lub cev raws li tus qauv. Tag nrho cov discs sab hauv, stems thiab cov rooj zaum yog ua los ntawm cov hlau tsis sib xws rau kev ua haujlwm zoo los tiv thaiv xeb. Peb muab PTFE cov ntsaws ruaj ruaj rau cov xov xwm huv si thiab Stellite hardfaced seals rau qhov kub thiab txias los yog nquag caij tsheb kauj vab. Tag nrho cov hlau stainless siv tau zoo tiv taus ya raws, oxidation thiab me ntsis acid / alkaline kua.

Cov cwj pwm tseem ceeb

Dab tsi yog cov qauv thiab kev ntsuas siab?

Peb ua lub valve no tom qab ASME B16.34 rau kev tsim thiab kev ntsuas siab, thiab flanges tau tsim rau ASME B16.5. Cov qib siab ib txwm khiav Chav Kawm 150 txog Chav Kawm 600, uas ua haujlwm rau cov kav dej nruab nrab feem ntau. Peb Tshuag ntau thiab tsawg NPS ½ rau NPS 24, thiab peb muaj peev xwm ua khoom siv tes ua txawv qhov ntau thiab tsawg yog tias koj qhov project muaj kev xav tau tshwj xeeb.

Cov kev lag luam twg siv lawv?

Txij li cov hlau tsis xeb tiv thaiv xeb thiab tshuaj lom neeg hnav zoo heev, lub ntiaj teb valve no ua haujlwm zoo rau cov kav dej nrog cov xov xwm corrosive. Cov neeg siv khoom nruab rau ntawm cov kab tshuaj, cov khoom siv tshuaj, cov khoom noj khoom haus, cov dej hiav txwv desalination, marine piping thiab cov dej khib nyiab.

Yuav ua li cas koj nrhiav tau qhov chaw los yog qhia ib qho kev txiav txim?

Tsuas yog xa cov ntsiab lus yooj yim thaum koj tso qhov kev txiav txim: qhov loj me, chav kawm siab, cov khoom siv lub cev thiab hom foob koj xav tau. Koj tuaj yeem qhia rau peb yog tias koj xav tau phau ntawv tuav tes lossis hluav taws xob / pneumatic actuators khiav lub valve. Peb tuaj yeem stamp koj lub logo thiab kho qhov chaw tiav raws li OEM thov, ntxiv rau peb muaj MOQ hloov tau rau kev txiav txim me me thiab kev tsim kho loj ib yam.

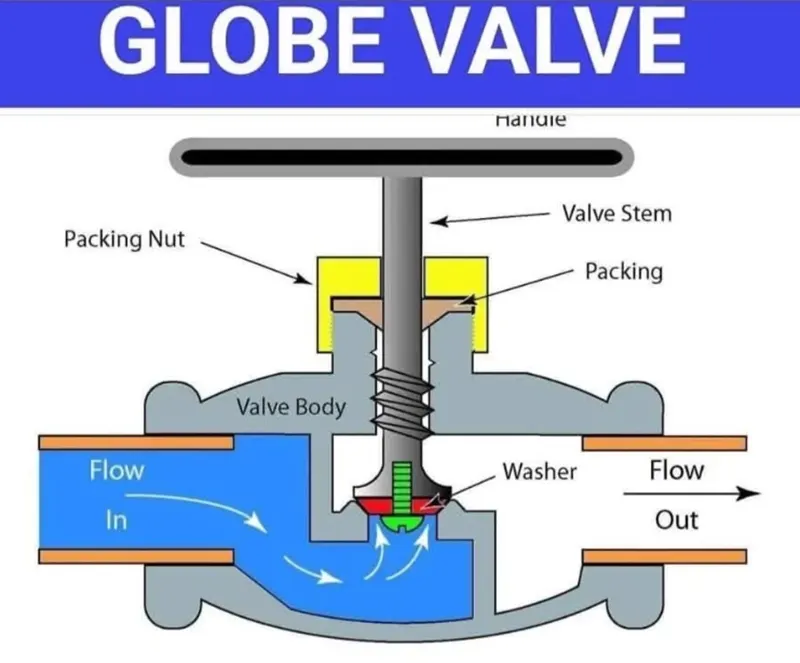

Dab tsi yog Stainless Hlau Flanged Globe Valve?

Nws yog linear stroke tswj & kaw-off valve nrog stainless hlau cam khwb cia lub cev thiab flanged kev twb kev txuas xaus. Nws paub meej meej throttling thiab tag nrho cov kav dej txiav tawm, dav siv rau corrosive, huv si thiab high-purity nruab nrab pipelines.

Cov xov xwm dab tsi no tuaj yeem tswj tau? Puas muaj dej tsis haum?

Siv tau xov xwm: Seawater, dilute acid, alkali tov, purified dej, chav, roj, compressed cua, tshuaj hnyav, zaub mov qib kua.

Tsis pom zoo: High-concentration muaj zog hydrofluoric acid, molten alkali hlau; media nrog cov khoom nyuaj loj yuav khawb qhov sib khi.

Lub ntiaj teb valve puas muaj kev taw qhia kev teeb tsa?

A: Yog lawm, nruj me ntsis ua raws li cov xub ntws tawm ntawm lub cev lub cev (nruab nrab ntws hauv disc mus rau saum). Rov qab installation ua rau tsis zoo sealing, hnyav ua haujlwm torque thiab nruab nrab backflow. Valve qia yuav tsum tau ntsug thaum lub sij hawm installation.

Yuav ua li cas tswj stainless hlau flanged ntiaj teb valve kom ntev kev pab cuam lub neej?

1. Coated anti-xeb roj ntawm lub valve lub cev nto tsis tu ncua;

2. Lubricate stainless hlau qia peb lub hlis twg los tiv thaiv jamming;

3. Rov ua kom nruj flange bolts tom qab cua sov kub;

4. Tshem tawm hauv cov raj xa dej ua ntej kaw lub sijhawm ntev kom tsis txhob muaj cov khoom seem hauv nruab nrab;

5. Kev sim qhib-kaw tsis tu ncua rau cov khoom siv hluav taws xob los tiv thaiv kev ua haujlwm sab hauv.
