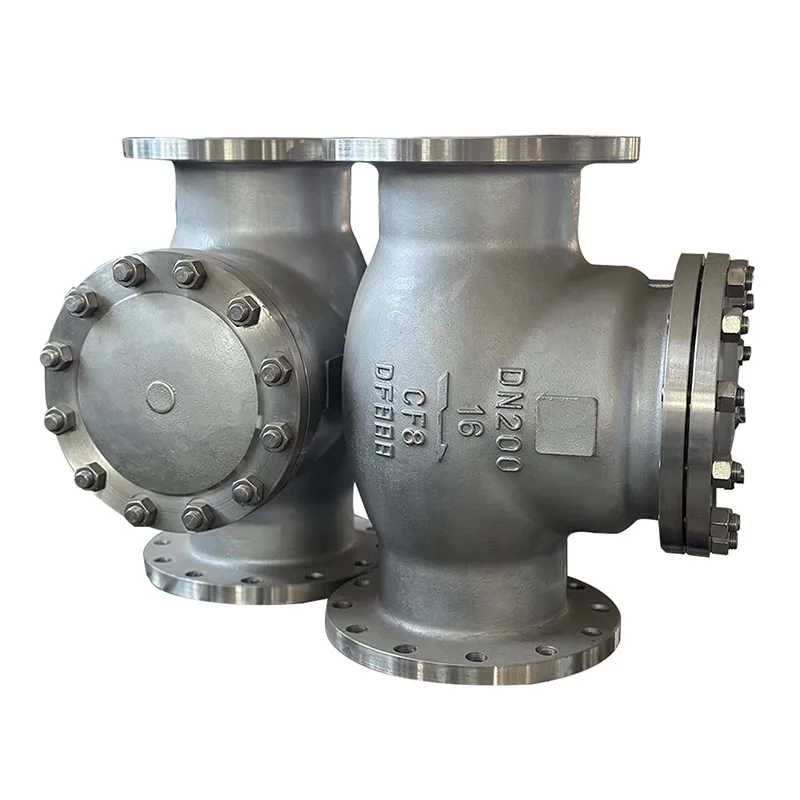

Stainless hlau Flanged Check Valve

Stainless Hlau Flanged Check Valve los ntawm Huadu Tuam Tshoj Hoobkas yog tsim los txhim khu kev qha ib-txoj kev ntws thiab tiv thaiv rov qab los tiv thaiv hauv cov kav dej. Ua los ntawm CF8 / CF8M stainless hlau, nws muaj zog corrosion kuj, siab stability, thiab kev pab lub neej ntev. Txhua chav tsev raug kuaj xyuas (1.5 × siab, kuaj pom) thiab ua tau raws li GB / ASTM cov qauv. OEM / ODM tau txais kev txhawb nqa, zoo tagnrho rau petrochemical, dej, thiab tshuaj lom neeg nrog cov khoom ruaj khov thiab cov nqi tsim nyog.

Xa lus nug

Product Description

Raws li Tuam Tshoj Hoobkas uas tsim no Stainless Hlau Flanged Check Valve, ua ntej txhua qhov project yog siv, peb yuav muab ib tug pipeline compatibility soj ntsuam kev pab cuam. Nws yog ib qho kev lag luam valve ntsia rau hauv cov raj xa dej kom tso cai rau cov kua dej ntws hauv ib qho kev taw qhia thaum tiv thaiv kev thim rov qab (rov qab). Nws siv stainless hlau ua cov khoom tseem ceeb ntawm lub cev thiab flange kev sib txuas rau kev yooj yim installation thiab muaj zog sealing kev ua tau zoo.

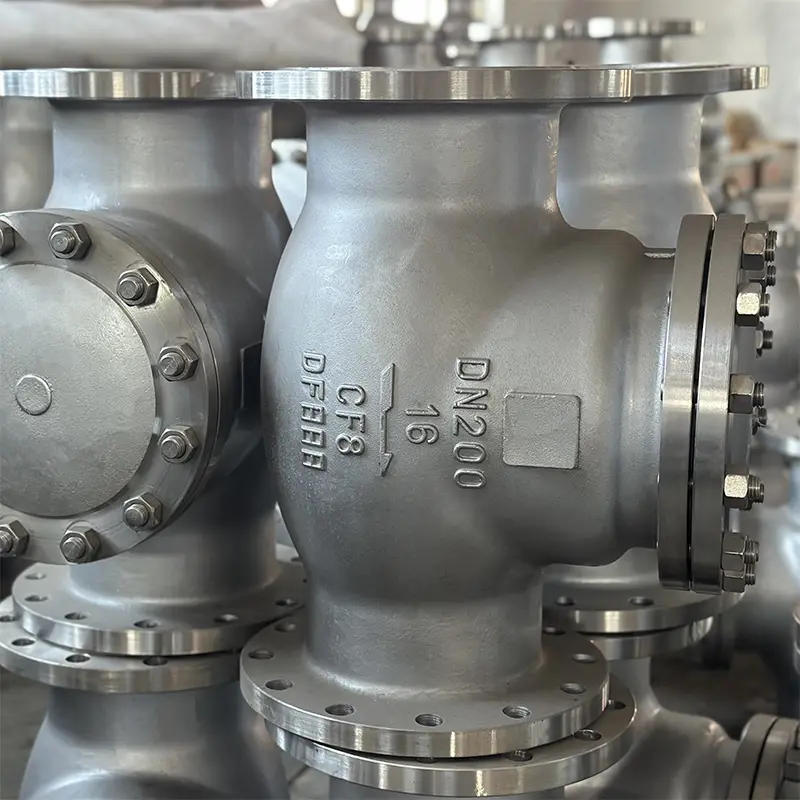

Stainless Steel Flanged Check Valve

Technical Specifications

1. Basic parameters:Lub Stainless Hlau Flanged Check Valve muaj ib txoj kab uas hla ntawm DN200 thiab lub nominal siab ntawm 16 MPa.

2. Sealing txuj:Nws cov dej xau yog tswj tau hauv Qib IV raws li tau teev tseg hauv GB / T 13927.

3. Cov txheej txheem tshuaj xyuas:Txhua yam khoom tiav dhau los ntawm kev ntsuas dej siab ntawm 1.5 npaug ntawm lub siab nominal thiab helium huab hwm coj spectrometry leak detection; cov ntaub ntawv xeem tau muab tso rau hauv lub Hoobkas traceability system los xyuas kom meej qhov sib xws ntawm cov txheej txheem kev ua haujlwm thiab kev ua haujlwm tiag tiag.

Khoom Feature

1. Khoom siv & casting txheej txheem:Lub cev lub cev yog raug nrum siv CF8 stainless hlau, thiab cov txheej txheem molding ua raws li cov kev xav tau ntawm GB / T 12229, tsis muaj qhov tsis xws luag xws li xuab zeb qhov lossis cov kab noj hniav.

2. Kev ua tau zoo:Nws muaj ob qho tib si compressive lub zog thiab corrosion kuj, uas ua tau raws li cov kav dej sib haum ntawm HG / T 20592.

3. Kev sib txuas & sealing:Lub flange kev twb kev txuas qhov ntev nruj me ntsis ua raws li GB / T 9113 tus qauv, ua rau kev sib txuas ncaj qha rau kev lag luam-tus qauv flanges yam tsis muaj kev hloov kho ntxiv; lub sealing nto yog ultra-precision polished thiab txuam nrog PTFE sealing Cheebtsam los txhim khu kev sealing kev ua tau zoo.

Daim ntawv thov teb ntawm cov khoom

Qhov Stainless Hlau Flanged Check Valve no tau dhau los ntawm tus neeg muag khoom tsim nyog certification ntawm Sinopec thiab CNOOC, thiab yog tsim rau high-pressure kua pipelines nyob rau hauv kev lag luam xws li roj av refining thiab thee chemical kev lag luam, ua ib tug standardized kua tswj accessory rau cov kev lag luam tej yaam num.

Cov cwj pwm tseem ceeb

daim ntawv thov	Petrochemical, tshuaj	xov xwm	Dej, Roj, Media tsis muaj impurities, thiab lwm yam.
Chaw nres nkoj Loj	kev cai	Sealing Khoom	Hlau
qauv	Hom viav vias	kub ntawm media	≤425 ℃
kev txhawb nqa	OEM, ODM, OBM	qhov chaw ntawm keeb kwm	Zhejiang, Suav teb
zog	Phau ntawv	tus qauv naj npawb	DN200-16
hom npe	KHD	lav	1 xyoo
Khoom npe	Swing type Check Vavle	Khoom siv	Stainless hlau 304 316 / WCB
Txuj	ASTM BS DIN ISO JIS	Loj	DN200 los yog tiv tauj peb rau lwm qhov ntau thiab tsawg
Ntim	Thawv Box	Xim	Grey
Siab	1.0 ~ 1.6MPa	Kev pabcuam	24 teev Online Service
Kub	-20 ℃ - 425 ℃	Nruab nrab	Dej Roj Roj

FAQ

Yuav ua li cas koj tuav lub Stainless Hlau Flanged Check Valve?

Tsis tu ncua tshawb xyuas sealing kev ua tau zoo thiab xyuas kom muaj cov dej xau
Ntxuav cov khoom sab hauv kom tsis txhob muaj cov khib nyiab lossis cov khoom thaiv
Kos lub valve disc txav kom du qhib thiab kaw
Xyuas kom cov flange bolts nyob twj ywm thiab ua kom zoo
Ua lub sij hawm ntsuas siab nyob rau hauv industrial systems

Kev kho kom zoo ntawm lubStainless hlau Flanged Check Valvepab txuas ntxiv kev pab cuam lub neej thiab ua kom ruaj khov tiv thaiv rov qab ua haujlwm hauv cov kav dej.

Dab tsi yog qhov txawv ntawm CF8 thiab CF8M stainless hlau?

CF8:Sib npaug rau SS304, dav dav corrosion kuj, haum rau cov dej thiab cov xov xwm tsis ua phem
Qauv TSIS MUAJ: CF8MSib npaug rau SS316, muaj molybdenum kom zoo dua tiv thaiv chloride thiab seawater corrosion
CF8M yog qhov zoo dua rau cov tshuaj lom neeg, dej hiav txwv, thiab cov chaw ua haujlwm siab

Qhov twg yuav tsum tau nruab Stainless Hlau Flanged Check Valve?

Tom qab cov twj tso kua mis los tiv thaiv rov qab ntws puas
Nyob rau hauv ntsug lossis kab rov tav cov kav dej (raws li hom valve)
Nyob rau hauv chemical thiab petrochemical txheej txheem kab
Hauv kev kho dej thiab kev faib tshuab
Hauv kev lag luam khoom siv tiv thaiv cov kav dej

Vim li cas ho xaiv Huadu Stainless Hlau Flanged Check Valve?

CovStainless hlau Flanged Check Valvelos ntawm Huadu yog tsim los rau kev ruaj khov los tiv thaiv kev ua haujlwm rov qab, Lub neej ntev kev pab cuam, thiab txhim khu kev qha kev lag luam nyob rau hauv industrial pipeline systems. Raws li Tuam Tshoj Hoobkas chaw tsim khoom, Huadu tsom ntawm precision ntau lawm, nruj zoo tswj, thiab zoo ib yam khoom muaj peev xwm rau lub ntiaj teb no tej yaam num.

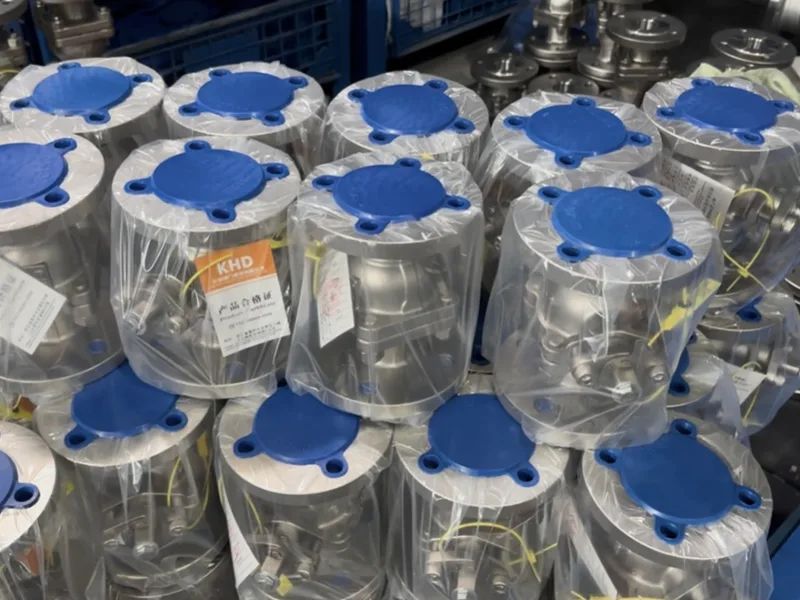

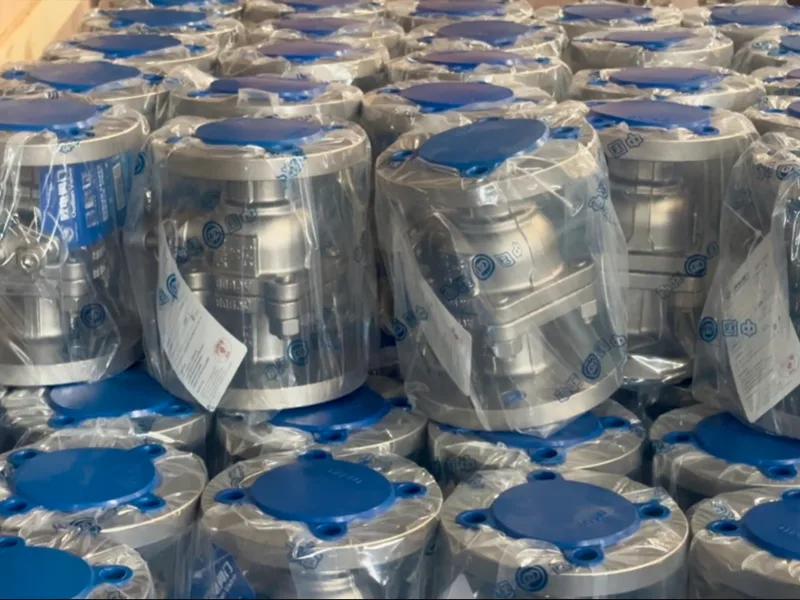

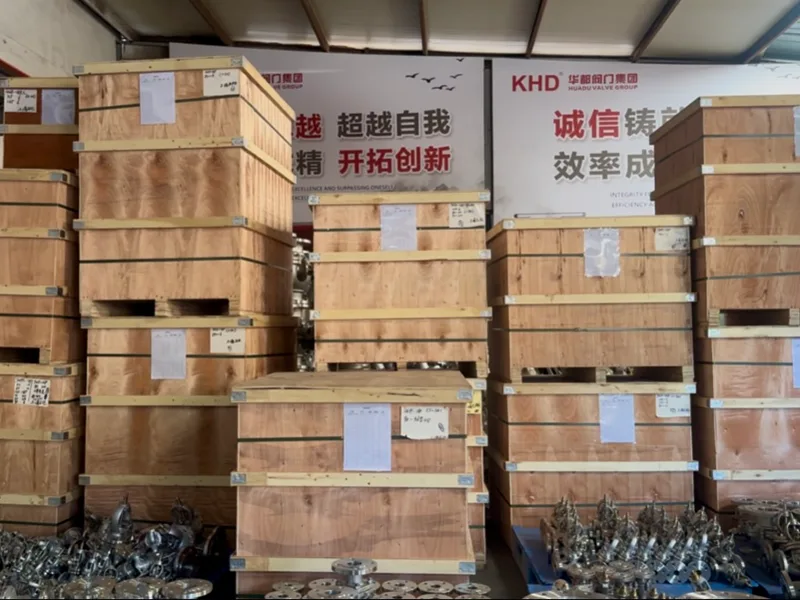

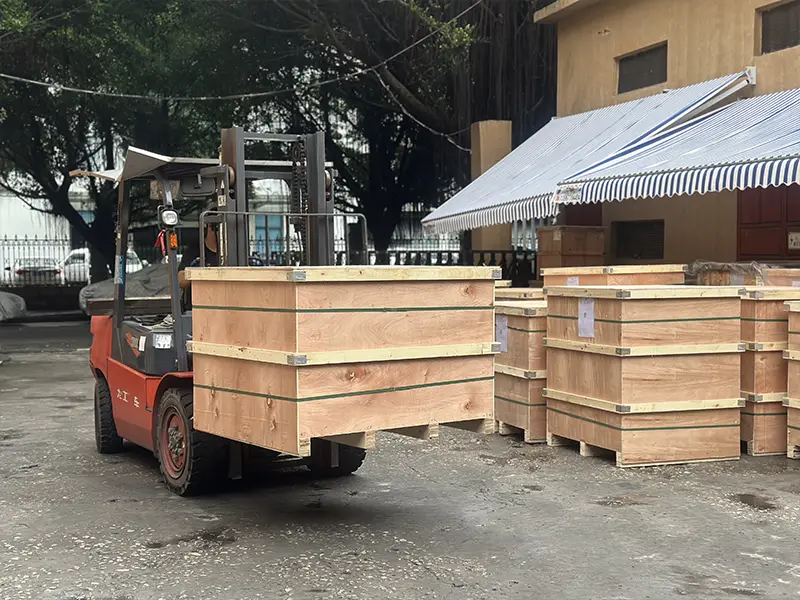

Factory Direct Manufacturing Advantage

Ua nyob rau hauv Huadu tus kheej Tuam Tshoj Hoobkas
CNC precision machining rau qhov siab qhov tseeb
Tag nrho cov txheej txheem zoo tswj los ntawm raw khoom mus rau tiav valve
Muaj peev xwm ntau lawm ruaj khov rau engineering xaj

Reliable Anti-Backflow Performance

Ib-txoj kev ntws tsim tiv thaiv kev cuam tshuam nruab nrab rov qab
Cov qauv sealing ruaj khov txo qhov kev pheej hmoo ntawm kev tawg
Haum rau kev ua haujlwm siab thiab ua haujlwm tsis tu ncua
Fast teb valve disc rau kev ruaj ntseg kaw

Cov ntaub ntawv zoo

304 / 316 stainless hlau muaj (CF8 / CF8M)
Muaj zog corrosion kuj rau tshuaj thiab dej tshuab
Haum rau dej hiav txwv, roj, roj, thiab kev lag luam xov xwm
Lub neej ua haujlwm ntev nrog txo tus nqi kho

Yooj yim Installation & Compatibility

Standard flange kev twb kev txuas (ANSI / DIN / JIS tau tshaj)
Fits feem ntau industrial pipeline systems tsis muaj kev hloov kho
Haum rau kab rov tav thiab ntsug installation (raws li hom)
Txo lub sij hawm installation thiab engineering nqi

Kev Pabcuam Engineering & Kev Pabcuam

OEM / ODM customization muaj
Kev taw qhia txog kev teeb tsa thiab xaiv
24-teev teb tom qab-muag kev pab txhawb nqa
Haum rau kev txiav txim me me thiab loj engineering tej yaam num

Xaiv Huadu Stainless Steel Flanged Check Valve txhais tau tias xaiv qhov zoo, lub Hoobkas ncaj qha khoom, thiab dependable kev ua tau zoo rau lub sij hawm ntev industrial siv.
