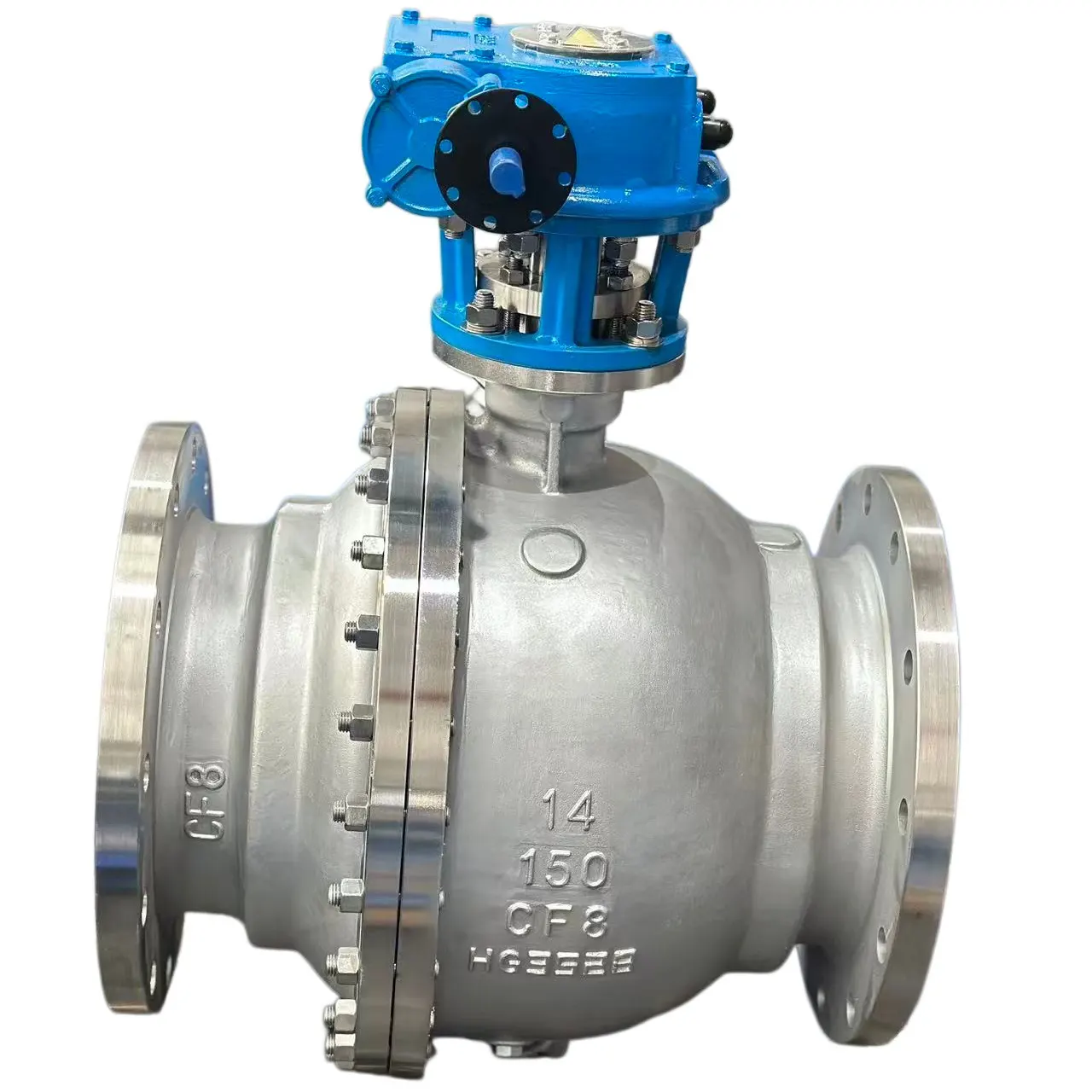

Stainless hlau Flanged Pob Valve Forged Flanged Pob Valve

Khoom nta

- Trunnion mounted ruaj pob qauv, haum rau loj bore thiab siab ua hauj lwm tej yam kev mob.

- Forged valve lub cev nrog cov khoom siv ntom ntom, muaj zog txhua yam thiab kev ua haujlwm zoo tiv thaiv corrosion.

-Txhua qhov chaw nres nkoj tsim, me me tsis kam, muaj peev xwm txaus, yooj yim rau kev ntxuav cov raj xa dej.

- Lub caij nplooj ntoos hlav loaded floating lub rooj realizes bidirectional nruj kaw-tawm, tsis tshua muaj to.

- Los tiv thaiv lub tshuab tawm qia tsim, ua rau hauv kev tiv thaiv zoo li qub thiab hluav taws kub nyab xeeb qauv ua raws li API 607.

- Lub rooj zaum ntawm tus kheej rau qhov txawv txav ntawm kab noj hniav overpressure los txhim kho kev nyab xeeb ntawm kev ua haujlwm.

- Tsis tshua muaj kev khiav hauj lwm torque, txhawb kev qhib-kaw ntau zaus rau kev pabcuam ruaj khov mus ntev.

Cov cwj pwm tseem ceeb

Cov qauv khoom

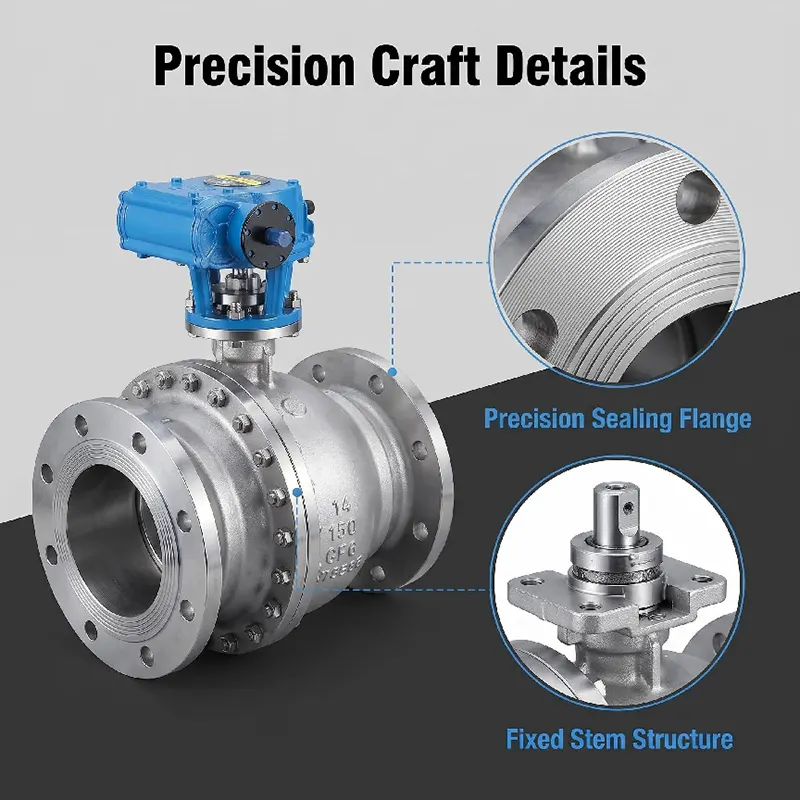

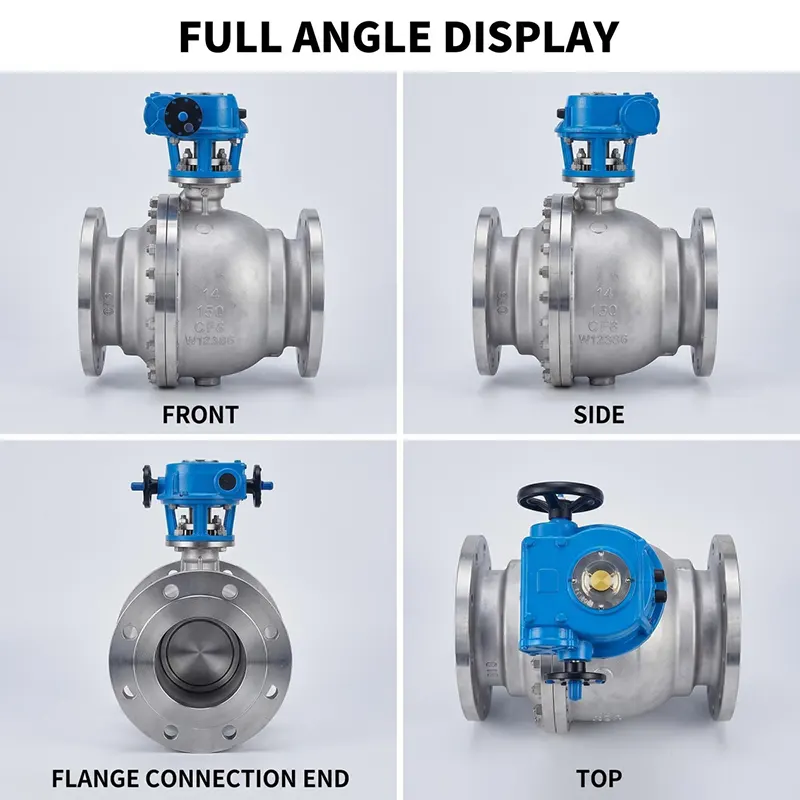

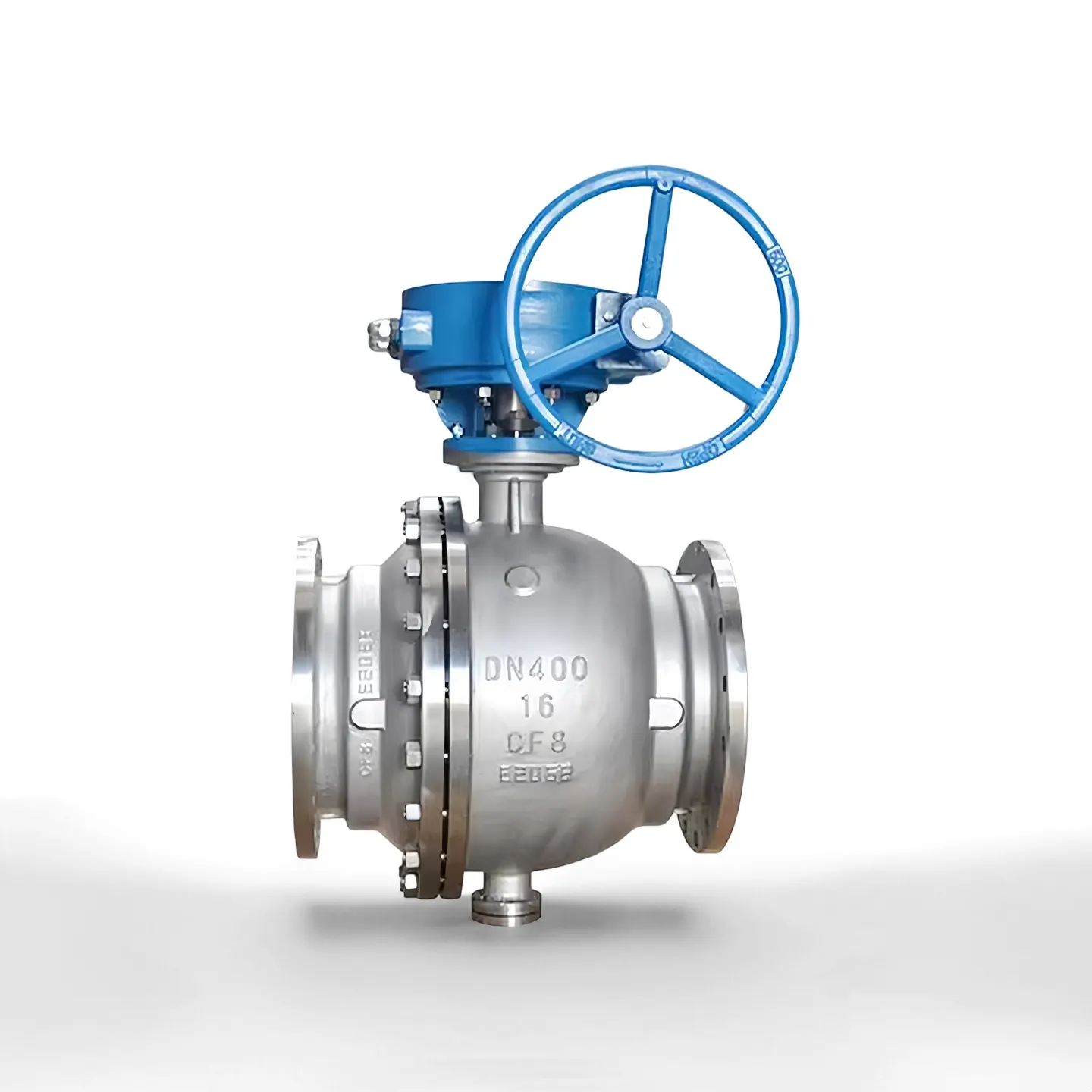

Qhov no yog Stainless Hlau Fixed Pob Valve Forged Flanged Pob Valve. Lub pob yog txhawb los ntawm sab sauv thiab sab trunnion shafts es tsis txhob ntab los ntawm lub rooj zaum quab yuam. Cov khoom tseem ceeb muaj xws li forged valve lub cev, lub kaus mom, lub pob ruaj khov, sab saud & qis trunnion shafts, lub caij nplooj ntoos hlav preloaded floating rooj, tiv thaiv tawm qia, flange txuas xaus, thiab ISO 5211 sab saum toj mounting ncoo rau actuators. Ob chav thaiv & ntshav muaj nuj nqi tuaj yeem muab tau raws li kev thov. Flange ntsej muag xaiv: RF, RTJ.

- Valve Lub Cev / Bonnet: Forged stainless hlau A182 F304 / A182 F316L

- Pob: Forged stainless hlau, nyuaj-chromium plated lossis Stellite nyuaj-ntsej muag

- Lub cev: A182 F316 stainless hlau

- Seat Seal: PTFE / RPTFE rau muag muag; Stellite 6 hard-alloy rau hlau hard-seal

- Gasket & O nplhaib: FKM, PTFE, customized rau cov xov xwm kub sib txawv

- Bolts: B8 / B8M stainless hlau bolts

Siab & Kub Ntau Yam

Qib Siab: PN16-PN100, Class150-Class2500

- Ua haujlwm kub:

•Soft-seal version:-29 ℃ ~ + 200 ℃

• Hlau hard-seal version: -29 ℃ ~ + 425 ℃

-Test Standard: API 598, plhaub kuaj 1.5 zaug ntsuas siab; lub rooj zaum kuaj 1.1 npaug ntawm qhov ntsuas siab

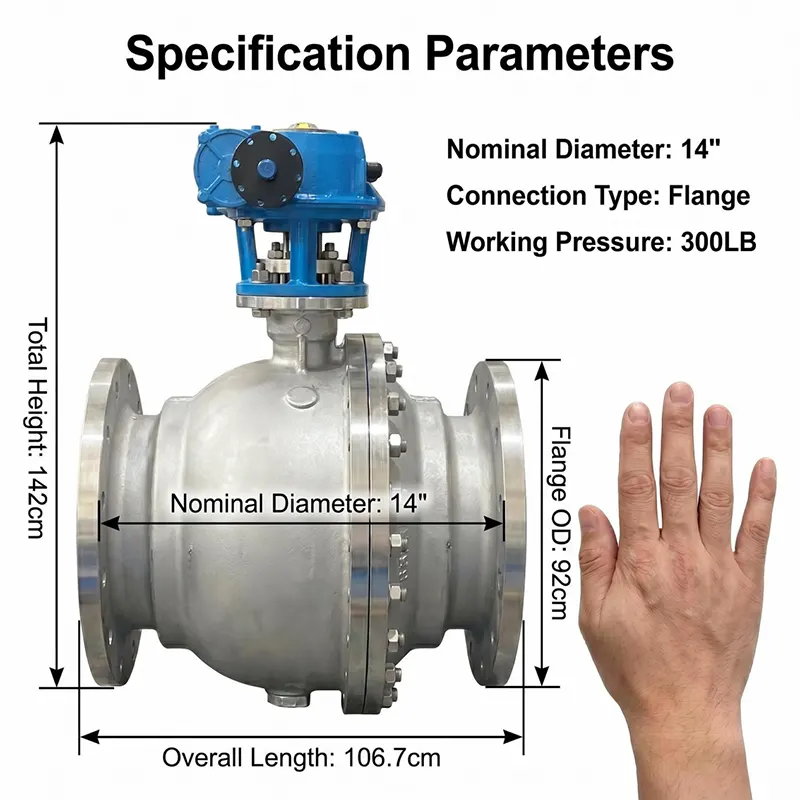

Qhov Loj: DN50-DN600 (NPS2 "-NPS24")

Hom kev ua haujlwm

-Manual: Kab iav neeg teb xov tooj rau loj torque yuav tsum tau

-Pneumatic: Ib leeg ua yeeb yam / ob chav ua yeeb yam pneumatic actuator, nrog kev txwv hloov & solenoid valve

-Electric: On-off hom lossis modulating hluav taws xob actuator rau cov chaw taws teeb tswj tsis siv neeg

-Hydraulic / electro hydraulic actuation muaj nyob rau ntawm kev thov tshwj xeeb

Tag nrho cov actuators haum ISO 5211 mounting platform.

Daim ntawv thov

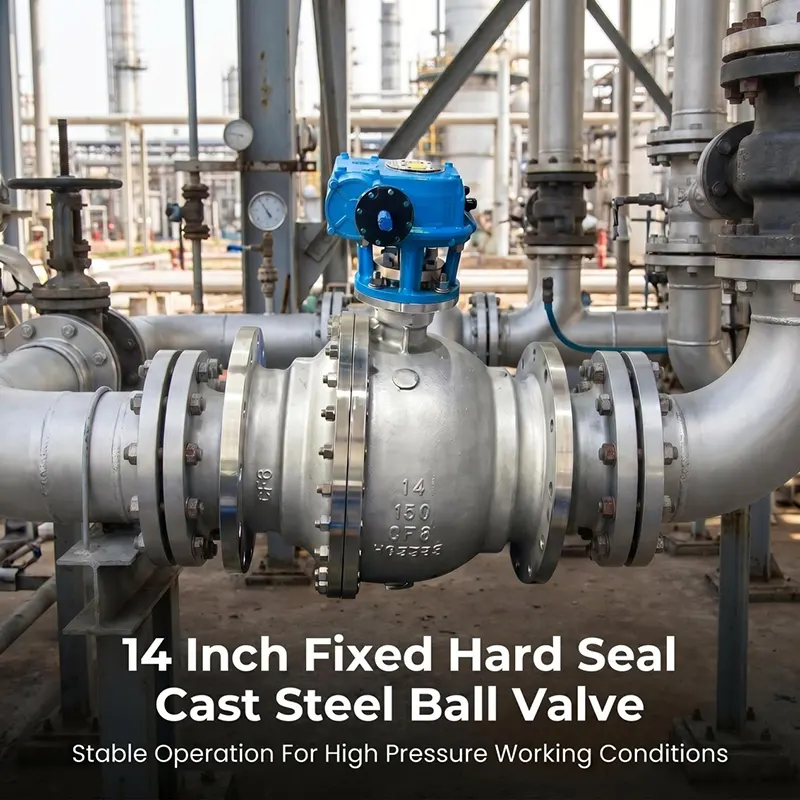

Dav dav siv rau kev tawm-tawm thiab kev sib cais rau cov kua, roj thiab corrosive nruab nrab. Feem ntau siv hauv cov roj & roj kav ntev, cov nroj tsuag petrochemical, tshuaj ua haujlwm, tsim hluav taws xob, kho dej, LNG thiab lwm yam haujlwm hnyav.

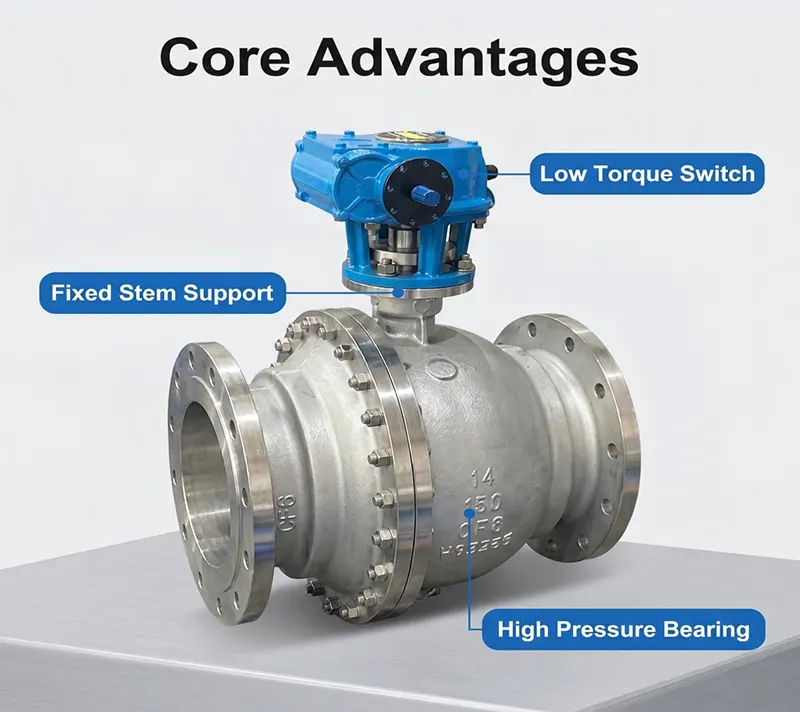

Vim li cas thiaj xaiv Peb Cov Hlau Stainless Pob Valve Forged Flanged Pob Valve?

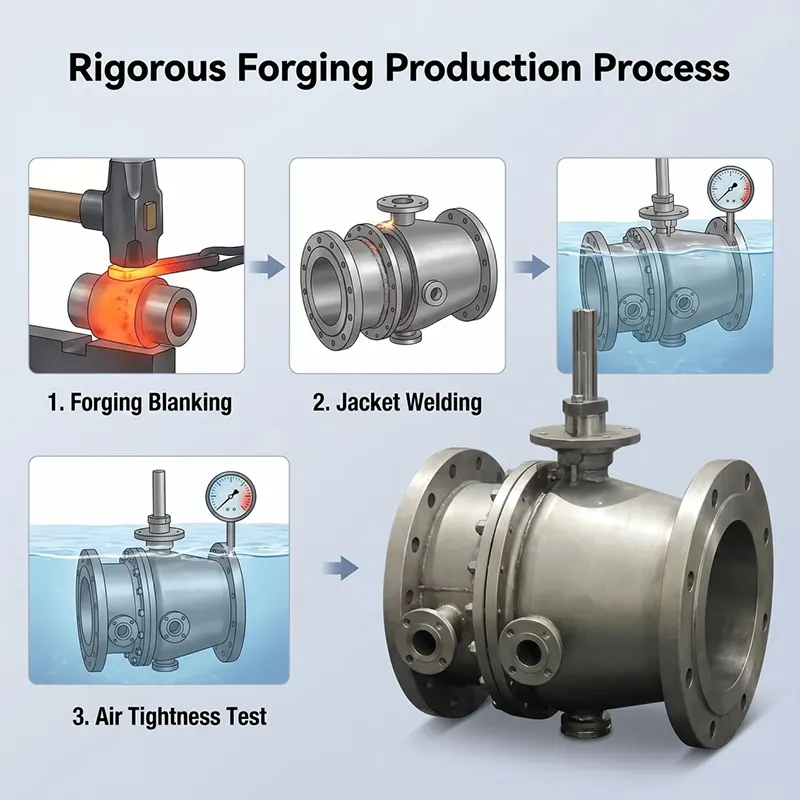

1. Txais cov txheej txheem forging tag nrho, cov khoom siv sab hauv compact yam tsis muaj qhov tsis xws li casting porosity, haum rau kev kub siab hnyav lub raj xa dej.

2. Trunnion tsau pob tsim zoo heev txo cov kev khiav hauj lwm torque rau loj loj siab ua hauj lwm mob.

3. Cov khoom siv nruj me ntsis tuaj xyuas, txhua lub valve hla tag nrho hydrostatic thiab roj lub tog zaum kuaj ua ntej xa khoom.

4. Txhawb cov mos-seal thiab hlau hard-seal ob versions kom phim qhov sib txawv kub thiab nruab nrab xav tau.

5. Peb muab kev txhawb nqa ua tiav, kos duab tshuaj xyuas thiab kev taw qhia tom qab muag rau koj qhov project.

Daim ntawv qhia kev yuav khoom

Thov muab cov ntaub ntawv hauv qab no thaum xa cov lus nug:

1. Nominal loj thiab qib siab

2. Ua haujlwm nruab nrab, qhov kub thiab txias ua haujlwm

3. Hom foob: mos foob lossis hlau tawv foob

4. Hom kev ua haujlwm (kab iav / pneumatic / hluav taws xob thiab lwm yam)

5. Flange txheem & flange ntsej muag hom (RF / RTJ)

6. Tshwj xeeb yuav tsum tau: hluav taws kub zoo, DBB muaj nuj nqi, anti corrosion thiab lwm yam.

Peb tus engineer yuav muab cov lus pom zoo raws li koj qhov kev ua haujlwm.

Ntim & Shipping

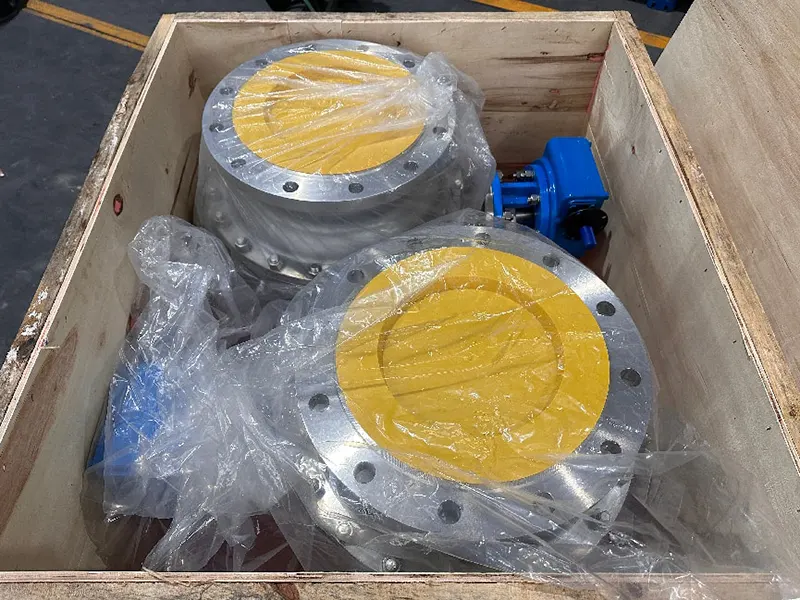

Txhua lub valve yuav raug ntxuav thiab tiv thaiv ua ntej ntim. Cov chaw nres nkoj valve raug kaw nrog lub kaus mom yas kom huv hauv cov kab noj hniav. Valves tau ntim rau hauv cov khoom plywood crates tsim nyog rau kev thauj khoom hiav txwv. Peb txhawb EXW, FOB, CIF, DAP thiab lwm yam kev lag luam. Cov khoom tuaj yeem xa mus rau qhov chaw nres nkoj los yog chaw cia khoom.

OEM & ODM

Peb txais OEM thiab ODM xaj. Peb tuaj yeem kho cov khoom siv lub cev, cov khoom foob, cov qauv flange, tshwj xeeb txuas ntxiv qia, tshwj xeeb pleev xim thiab cim logo raws li cov neeg siv khoom kos duab lossis kev xav tau. Yooj yim MOQ rau qhov project xaj.

Kev Tshawb Fawb & Kev Xeem

Txhua lub valve mus dhau ntau yam kev tshuaj xyuas ua ntej xa khoom raws li API 598 tus qauv.

- Cov khoom siv raw khoom tuaj xyuas: cov khoom siv tshuaj lom neeg muaj pes tsawg leeg thiab cov khoom siv kho tshuab, cov ntaub ntawv traceability tau muab.

- Plhaub hydrostatic test: 1.5 npaug ntawm qhov ntsuas siab rau lub cev lub cev & lub kaus mom.

- Kev kuaj lub rooj zaum: 1.1 npaug ntawm qhov ntsuas siab, dej lossis nitrogen nruab nrab.

- Kev tshuaj xyuas pom, ntsuas qhov ntsuas, xim thiab tshuaj xyuas qhov chaw tiav.

- Kev kuaj tim khawv los ntawm lub koom haum thib peb xws li SGS, BV tau txais raws li tus neeg thov kev thov.

- Tag nrho cov ntaub ntawv suav nrog MTC cov ntaub ntawv xeem daim ntawv pov thawj, daim ntawv qhia hydro-test, daim ntawv pov thawj ntawm kev sib raug zoo tuaj yeem muab tau.

Installation & Maintenance Guide

- Ntxuav cov kav dej kom huv si ua ntej kev teeb tsa kom tshem tawm vuam slag, xuab zeb thiab khib nyiab, zam kev puas tsuaj rau lub ntsej muag sealing.

- Mount valve nyob rau hauv qhov tseeb ntws kev taw qhia, zawm flange bolts hla kev txawj ntse thiab sib npaug.

- Tsis txhob cia lub valve nyob ntawm ib nrab qhib txoj haujlwm rau lub sijhawm ntev cia lossis ua haujlwm.

- Rau kev ua haujlwm tsis tu ncua, khiav tag nrho stroke qhib kaw lub voj voog ib ntus txhawm rau tiv thaiv kev sib tsoo.

- Txheeb xyuas flange sib koom ua ke, qia packing rau sab nraud to thaum lub sij hawm niaj hnub tshuaj xyuas qhov chaw.

- Hloov cov khoom foob thaum lub sij hawm kaw; siv cov khoom sib txuam rau koj qhov nruab nrab ua haujlwm.

- Yog tias haum nrog actuator, xyuas cov actuator torque, txwv kev hloov pauv tsis tu ncua.

Kev pab cuam tom qab muag

- Lub sijhawm lav: 12 lub hlis lav suav txij hnub xa khoom, tiv thaiv kev tsim khoom tsis raug.

-Peb muab kev txhawb nqa nrog rau kev kos duab tshuaj xyuas, kev lees paub qhov ntsuas thiab kev qhia ua haujlwm.

-Peb pab pawg engineering teb cov lus nug hauv 24 teev ua haujlwm.

-Cov khoom seem (lub rooj zaum, gaskets, qia packing) muaj rau rov xaj dua.

-On-site technical kev sab laj tuaj yeem npaj rau kev txiav txim loj loj.

Nco tseg: Warranty tsis npog qhov kev puas tsuaj los ntawm kev teeb tsa tsis raug, kev ua haujlwm tsis raug lossis qhov nruab nrab tsis zoo.

Yam khoom pom zoo

-Floating pob valve (2 daim / 3 daim stainless hlau pob valve)

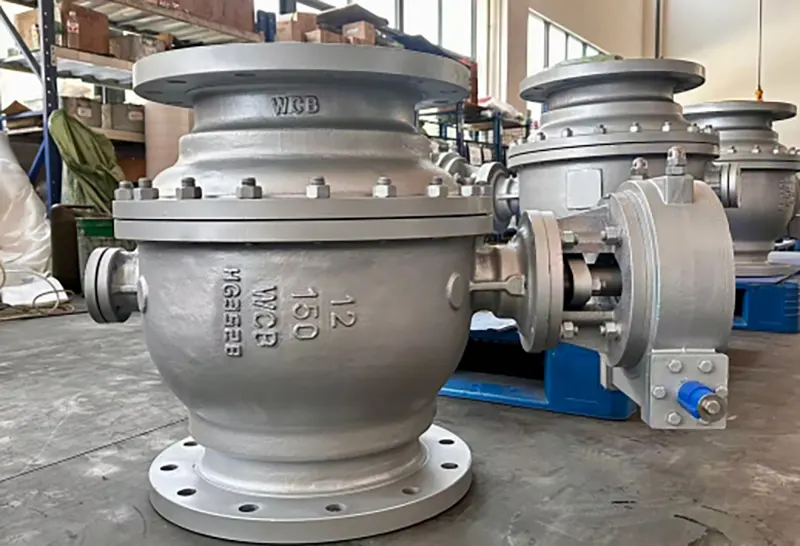

-WCB carbon steel tsau trunnion pob valve

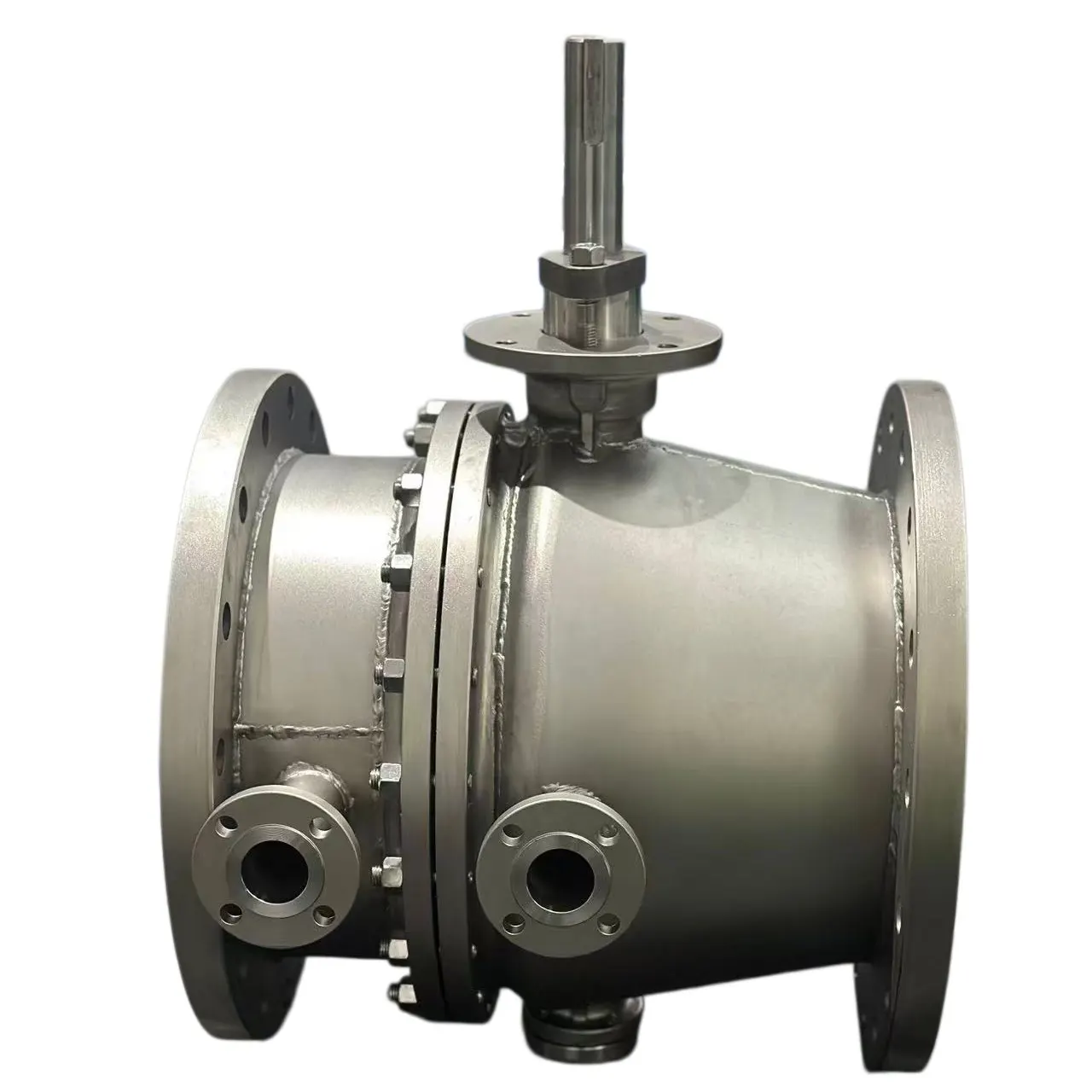

-Jacket insulated tsau pob valve rau siab viscosity nruab nrab

- Pob valve nrog pneumatic / hluav taws xob ua tiav actuator teeb

-Metal hard-seal tsau pob valve rau kev pabcuam kub

Peb lub Hoobkas muaj zog

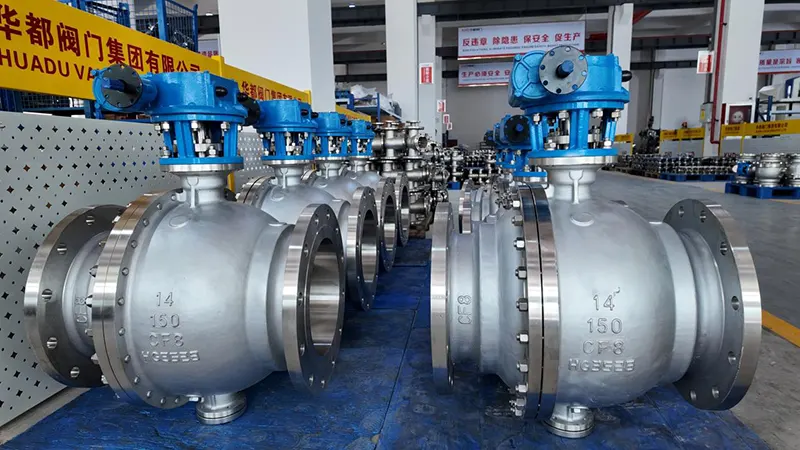

Huadu Valve Group yog nyob rau hauv Wenzhou Tuam Tshoj, tshwj xeeb hauv kev tsim valve tsim, forging, machining thiab sib dhos. Peb muaj cov kab ntau lawm suav nrog kev cob qhia forging, CNC machining rhiav, sib dhos rhiav thiab kev sim kuaj kev ywj pheej. Tag nrho cov txheej txheem tsim khoom tseem ceeb tau ua tiav hauv tsev, tsis yog tag nrho outsourced. Peb muaj kev paub nplua nuj rau cov roj av txawv teb chaws, petrochemical thiab dej xaj qhov project. Peb cov khoom raug xa tawm mus rau South Asia, Middle East, Europe thiab lwm thaj chaw.

Hu rau Nug

Thov xa koj cov lus qhia ntxaws ntxaws txog kev ua haujlwm nrog rau qhov loj me, siab, nruab nrab, kub, hom kev ua haujlwm thiab kev xav tau tshwj xeeb. Peb pawg kws tshaj lij yuav tshuaj xyuas thiab npaj cov lus hais rau koj sai sai. Zoo siab txais tos cov qauv txiav txim thiab kev koom tes hauv qhov project loj.
