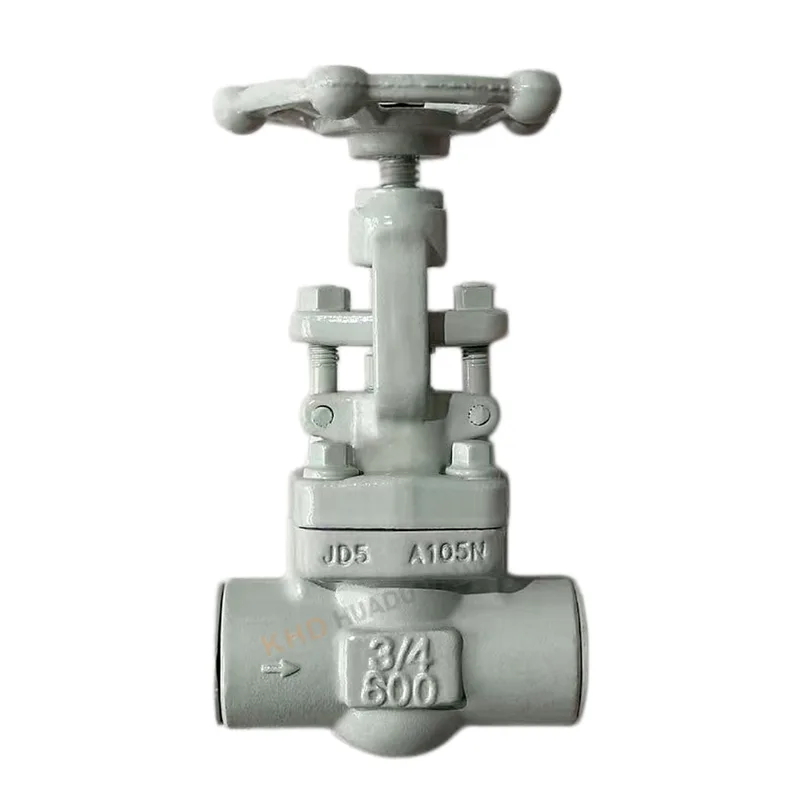

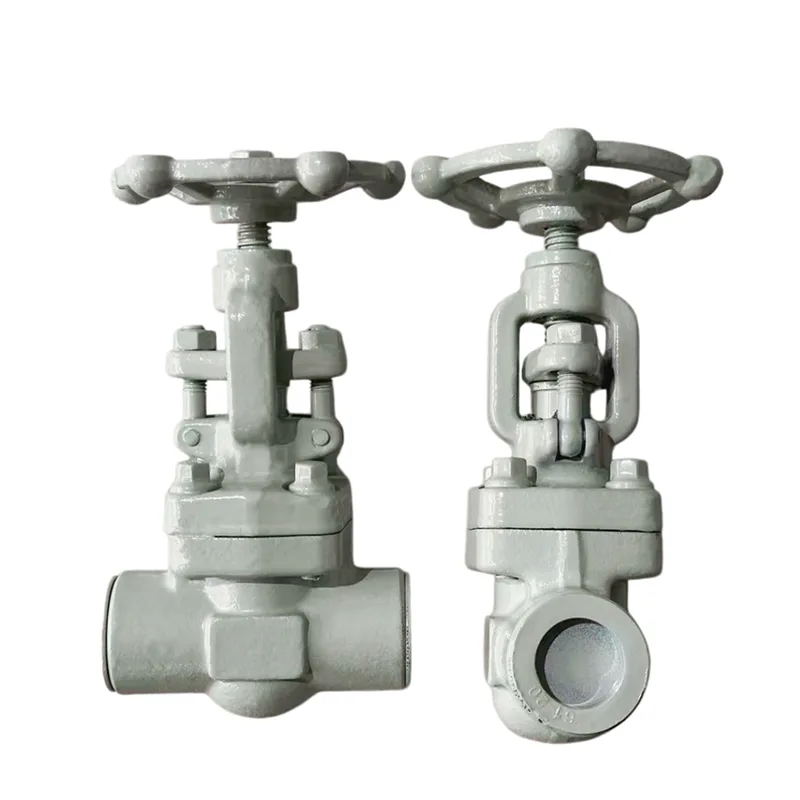

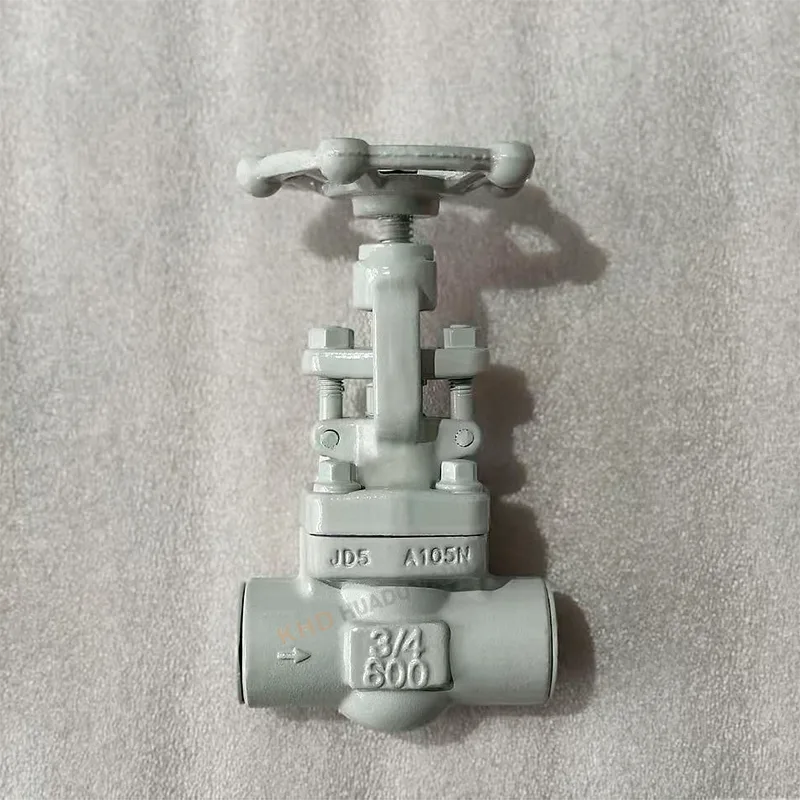

Qhov (socket)-welded Forged Gate Valve

Lub qhov (socket-welded forged gate valve) yog lub siab-siab muaj valve tsim los rau cov kav dej kaw thiab khiav tswj. Tsim los ntawm Huadu Valve Group, nws siv A105N forged carbon steel thiab tsim nyog rau Chav Kawm 600 kev ua haujlwm.Nws yog dav siv hauv roj av, tshuaj lom neeg, lub zog, thiab lub zog siab qhov chaw uas muaj kev nyab xeeb thiab kev sib khi ua haujlwm tseem ceeb.Lub qhov (socket-welded forged gate valve) kom ruaj khov thiab ua haujlwm ntev hauv kev xav tau kev lag luam ib puag ncig.

Raw Material & Structure Advantages

High-Quality Forged Steel Lub cev

Lub qhov (socket-welded forged gate valve) yog tsim los ntawm A105N forged carbon steel, kom ntseeg tau tias:

Siab zog thiab ceev

Zoo heev cuam tshuam

Tsis muaj qhov tsis xws luag xws li qhov pores lossis xuab zeb qhov

Kev soj ntsuam cov khoom nruj

Txhua batch ntawm raw cov ntaub ntawv raug sim siv spectral tsom xam los xyuas kom meej:

Cov tshuaj muaj pes tsawg leeg

Tsis muaj cov khoom siv rov ua dua lossis tsis zoo

ruaj khov mechanical kev ua tau zoo

Qhov (socket-Weld Connection Benefits).

Lub qhov (socket-welded forged gate valve) txuas hom muab:

Muaj zog sealing kev ua tau zoo

Zoo siab-siab tsis kam tshaj flanges

Txo qhov kev pheej hmoo ntawm kev tawg hauv qhov tseem ceeb

Technical Specifications

Standard Parameters

Loj: DN15-DN50 (cov khoom tsis tu ncua)

Kev Ntsuas Siab: Chav Kawm 300 / Chav Kawm 600

Khoom siv: A105N forged carbon steel

Hom: Qhov (socket)-welded forged rooj vag valve

Qhov kub thiab txias: -29 ° C txog 570 ° C

Kev tsim khoom

Lub qhov (socket-welded forged gate valve) yog tsim los ntawm:

Integral tuag forging

Kev kho cua sov (normalizing txheej txheem)

CNC precision machining

Kev ua haujlwm nta

Micron-level sealing nto raug

Zero-leakage sealing kev ua tau zoo

Kev ua haujlwm du yam tsis muaj jamming

Haum rau high-temperature chav tshuab

Cov cheeb tsam thov

Roj & Roj Kev Lag Luam

Lub qhov (socket-welded forged gate valve) yog siv dav hauv:

Refinery pipelines

Roj kis tau tus mob

Cov chaw tsim hluav taws xob

Kev lag luam tshuaj

High-pressure chemical pipelines

Corrosive kua tswj systems

Reactor inlet / qhov hluav taws xob systems

Kev lag luam fais fab

Chav kav dej

Thermal fais fab system

Condensate pipelines

Kev siv dav dav

High-pressure me-inch pipelines

Cov khoom siv cais tawm

Kev nyab xeeb kaw-tawm daim ntawv thov

Cov cwj pwm tseem ceeb

FAQ

Lub qhov (socket-weld) yog dab tsi?

Lub qhov (socket-weld connection) yog ib txoj kev sib txuas ntawm cov yeeb nkab uas cov yeeb nkab tau muab tso rau hauv lub qhov (socket) thiab tom qab ntawd welded nyob ib ncig ntawm sab nraud. Nws yog feem ntau siv nyob rau hauv high-pressure, me-inch systems.

Nyob rau hauv cov ntaub ntawv ntawm lub qhov (socket-welded forged gate valve), cov yeeb nkab yog muab tso rau hauv lub valve kawg qhov (socket) thiab welded los tsim ib tug muaj zog, to-resistant sib koom ua ke.

Cov yam ntxwv tseem ceeb ntawm qhov (socket-weld) txuas

Siab zog thiab siab tsis kam

Kev sealing zoo heev

Haum rau DN15-DN50 cov kav dej me me

Txo txoj kev pheej hmoo ntawm kev xau piv rau cov pob qij txha threaded

Feem ntau hauv cov roj, roj, thiab chav tshuab

Yuav tsum socket-weld li qub yuav tsum tau disassembled ua ntej welding?

Yog lawm, kiag li. Ua ntej txhim kho lub qhov (socket-welded) forged gate valve, lub valve yuav tsum tsis txhob muab ib feem sib sau ua ke thaum vuam.

Kev teeb tsa kom zoo:

Tshem tawm cov khoom sab hauv yog tias ua tau (lossis xyuas kom lub valve qhib tag nrho)

Ntxig cov yeeb nkab tag nrho rau hauv lub qhov (socket).

Khaws qhov sib txawv me me (~ 1.5-2 mm)

Ua vuam tsuas yog nyob rau sab nraud sib koom ua ke

Cia txias ua ntej ua haujlwm lub valve

Cov ntawv tseem ceeb:

Tsis txhob overheat lub valve lub cev

Tiv thaiv vuam slag los ntawm kev nkag mus rau lub valve kab noj hniav

Xyuas kom muaj kev sib raug zoo ua ntej welding

Kev siv vuam tsis raug tuaj yeem ua rau cov chaw sib khi thiab txo lub neej valve.

Dab tsi yog qhov txawv ntawm OS & Y thiab bolted bonnet?

Cov no yog ob qho kev tsim qauv sib txawv siv hauv rooj vag li qub.

OS & Y (Sab nraum Ntsia Hlau & Yoke)

Cov xov yog sab nraum lub valve lub cev

Pom qia txav taw qhia qhov qhib / kaw

Kev saib xyuas yooj yim dua thiab kev saib xyuas kev ua haujlwm

Feem ntau hauv kev tiv thaiv hluav taws thiab kev lag luam

Bolted Bonnet

Bonnet txuas nrog lub cev valve siv bolts

Internal qia tsim (tsis pom sab nraud)

Compact qauv

Dav siv nyob rau hauv kev siv dav dav

Kev sib piv yooj yim:

OS&Y = kev pom sab nraud + kev saib xyuas kev ua haujlwm yooj yim

Bolted bonnet = compact + nqi-zoo qauv

Ob hom tuaj yeem siv rau hauv lub qhov (socket-welded forged gate valve) nyob ntawm seb qhov project yuav tsum tau ua.
