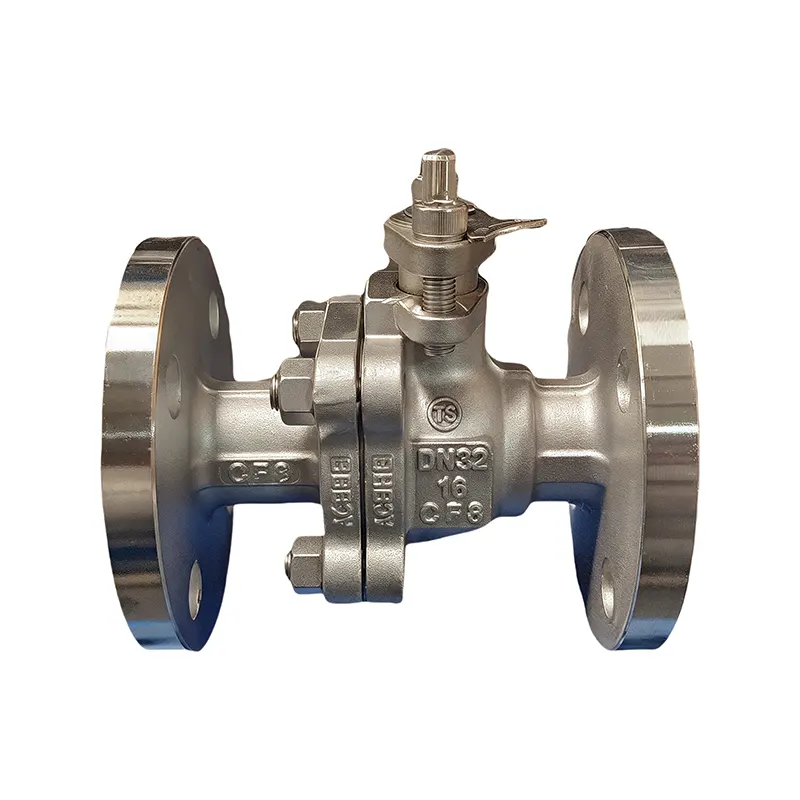

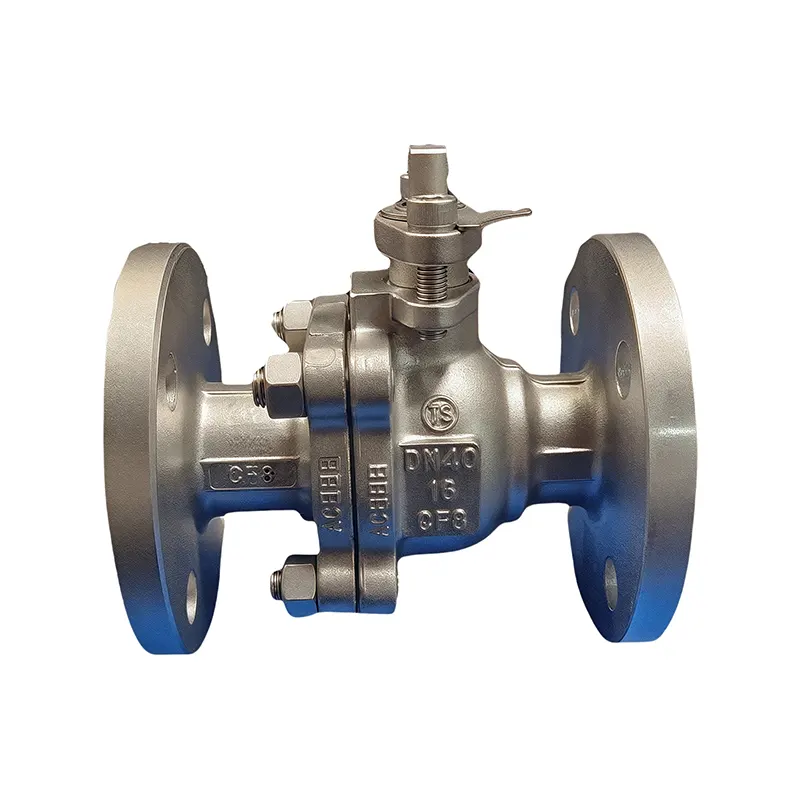

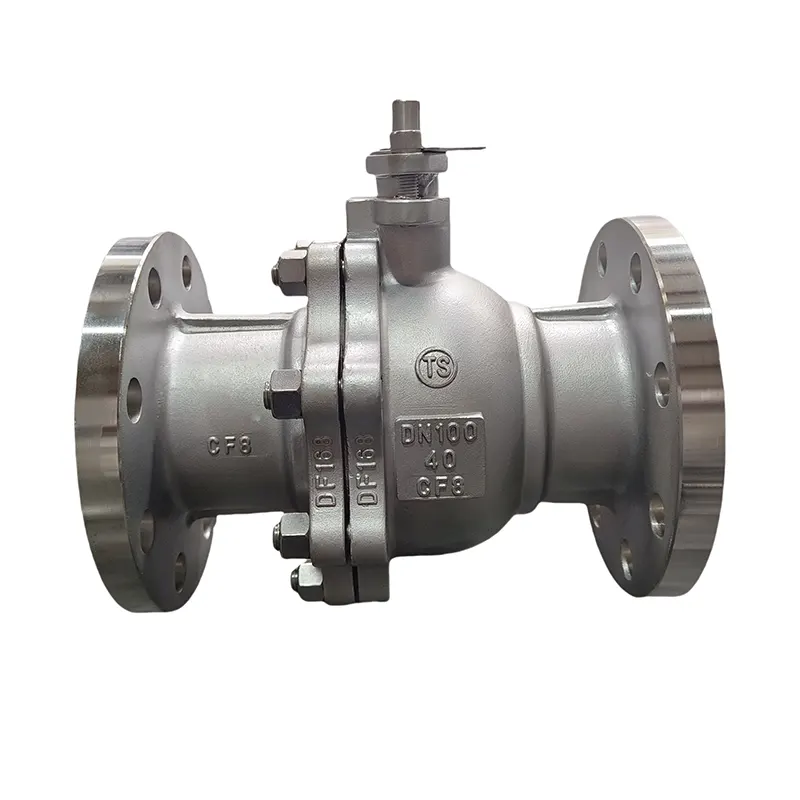

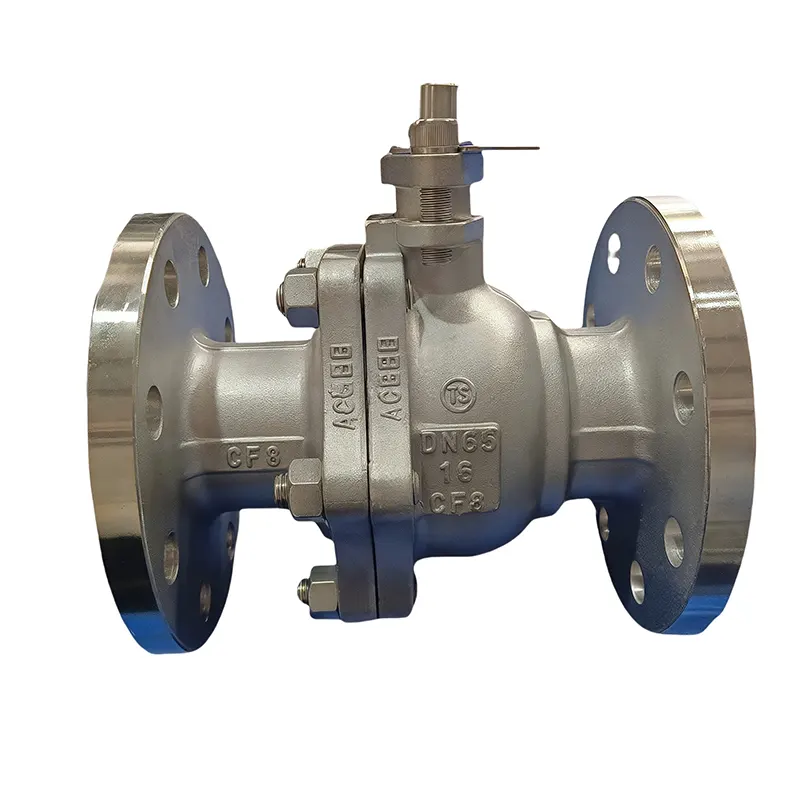

GB Floating Pob Valve

Headquartered nyob rau hauv Wenzhou, Suav teb, Huadu Valve Group tsom rau kev tsim cov khoom lag luam ruaj khov. Peb cov tub ntxhais GB Floating Ball Valve ua raws li Suav GB cov qauv thiab siv cov khoom cam khwb cia hlau los ua haujlwm siab. Ua los ntawm floating pob tsim, nws kaw nruj nreem nrog me ntsis ntws poob thiab ua hauj lwm tsis tu ncua, feem ntau rau tshuaj, metallurgy thiab dej kho teb.

Xa lus nug

Product Description

Peb yog cov chaw tsim khoom muaj ntawv pov thawj nrog ISO thiab API kev pom zoo, nruab nrog cov tshuab niaj hnub thiab ua tiav cov kev kuaj xyuas zoo. Kev cai OEM thiab ODM cov kev pabcuam muaj nrog MOQ hloov tau. Peb li qub nkoj thoob ntiaj teb thiab tau txais kev qhuas zoo los ntawm cov neeg yuav khoom txawv teb chaws.

GB Floating Ball Valve ua haujlwm li cas?

Lub pob sab hauv yog tsis ruaj ntseg los ntawm lub sab sauv thiab hauv qab spindle. Thaum kaw cov dej ntws tawm, cov dej siab thawb lub pob mus rau hauv lub rooj zaum hauv qab kom ua tiav qhov kaw ntom ntom. Tig lub valve qia spin lub pob, nyob rau hauv nws los ntawm lub qhov nrog cov yeeb nkab kom cia cov kua los yog roj mus los ntawm smoothly.

Cov cwj pwm tseem ceeb

Yam khoom	GB Floating Pob Valve	Cov khoom siv qia	2Cr13 / SS304 / SS316
Tsim qauv	GB/T 12224, GB/T 12228	Khoom siv zaum	Stellite Hardfaced / PTFE / RPTFE
Lub ntsej muag rau ntsej muag Dimension	GB/T 12221	Hom Gasket	Kauv qhov txhab Gasket / RTJ Gasket / Graphite Gasket
Flange Txheem	GB/T 9113, GB/T 9124	Hom kev ua haujlwm	Handwheel, Iav Ua Haujlwm, Fais Actuator, Pneumatic Actuator, Hydraulic Actuator
Qib Siab	PN16/PN25/PN40/PN63/PN100	Xaus kev sib txuas	Flanged, Threaded, Welded (BW / SW)
Nominal Loj (DN)	DN15-DN1200	Hom tsim	Floating Ball, Bolted Bonnet
Khoom siv lub cev	WCB / CF8 / CF8M / CF3 / CM3M	Qhov kub thiab txias	-29 ℃ ~ 425 ℃
Khoom siv Bonnet	WCB / CF8 / CF8M / CF3 / CM3M	Siv tau nruab nrab	Dej, roj, roj, chav, General Industrial Fluid
Pob khoom	WCB + Hardfaced / A105 + Hardfaced / F304 / F316	Kev xeem Standard	GB / T 13927 / Hydrostatic Plhaub & Seat Test

Qhov zoo

Lub quarter-tig qhib thiab kaw, qhov tsawg kawg nkaus poob hauv cov raj xa dej, txhim khu kev qha sealing ntawm kev ua haujlwm siab thiab kev sib tw ua lag luam.

GB txhais li cas?

GB yog hais txog Tuam Tshoj tus qauv National Standard (luv luv rau Guobiao). Peb cov li qub tau tsim ua nruj me ntsis raws li cov qauv tsim hauv tsev.

Lawv siv rau dab tsi?

Cov GB ntab pob li qub no feem ntau txiav tawm cov raj xa dej hla kev kho dej, kev ua tshuaj lom neeg thiab metallurgy kev lag luam rau cov kua thiab roj nruab nrab tswj.

Cov ntaub ntawv khoom ntxiv rau GB Floating Ball Valve

Ua los ntawm cov hlau cam khwb cia hlau, lub valve no tau tsim kom haum rau Tuam Tshoj txoj cai GB ntau lawm. Flanged kev twb kev txuas ua rau ntawm qhov chaw teeb tsa thiab tom qab kev kho kom yooj yim dua.

Peb lub Hoobkas ua raws li ISO thiab API cov qauv thaum lub sijhawm tsim khoom, txhua daim yuav dhau los ntawm kev nruj nruj thiab kev ntsuas kev sib khi ua ntej xa khoom. Peb txhawb OEM thiab kev cai sizing kom haum rau qhov project sib txawv.

Cov neeg siv feem ntau xaiv lub valve no rau kev ua haujlwm ntawm kev ua haujlwm tsis tu ncua. Nws haum rau qhov kub thiab txias ntawm cov kua thiab roj, tsis pom zoo rau corrosive muaj zog acid media yam tsis muaj txheej tshwj xeeb.

Peb ua li qub spanning DN15 rau DN1000, ua rau GB specs hauv PN16, PN25, PN40, PN64 thiab PN100 qib siab rau feem ntau cov kav dej ua haujlwm.

Txhua theem ntawm kev tsim khoom, los ntawm kev tshuaj xyuas cov khoom, machining mus rau kev sib dhos, yog ua tiav hauv peb cov nroj tsuag kom peb yooj yim tswj kom zoo. Cov neeg yuav khoom thoob ntiaj teb nyiam peb li qub ua tsaug rau kev ua haujlwm ruaj khov thiab tus nqi sib tw. Handwheel haum ib txwm, thiab cov actuators tuaj yeem ntsia tau raws li qhov kev thov rau nws pib khiav.

Hot Tags: GB Floating Ball Valve, Chaw tsim tshuaj paus, tsum, Hoobkas, Suav teb
