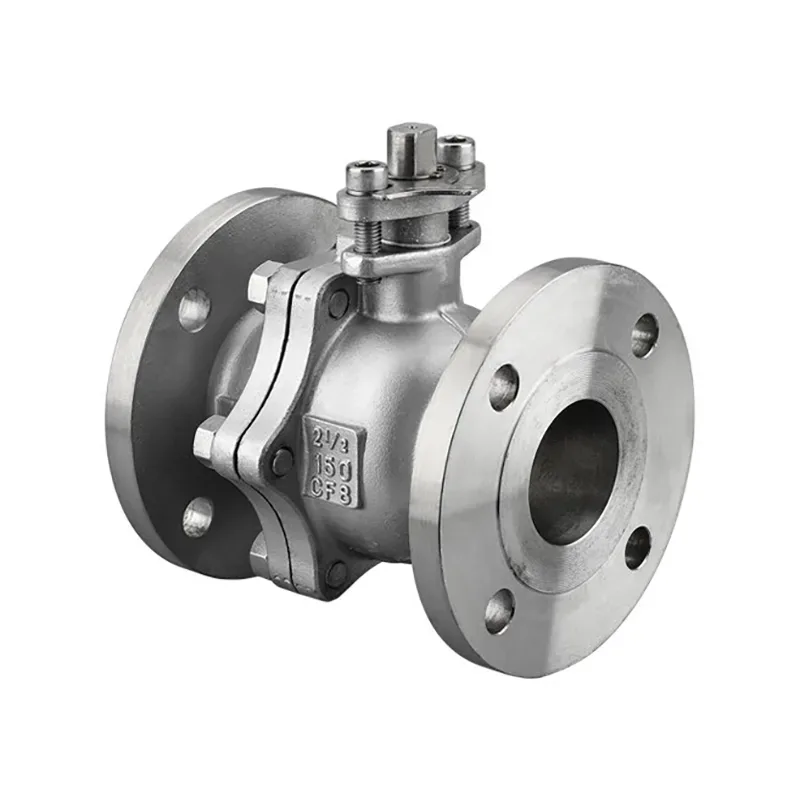

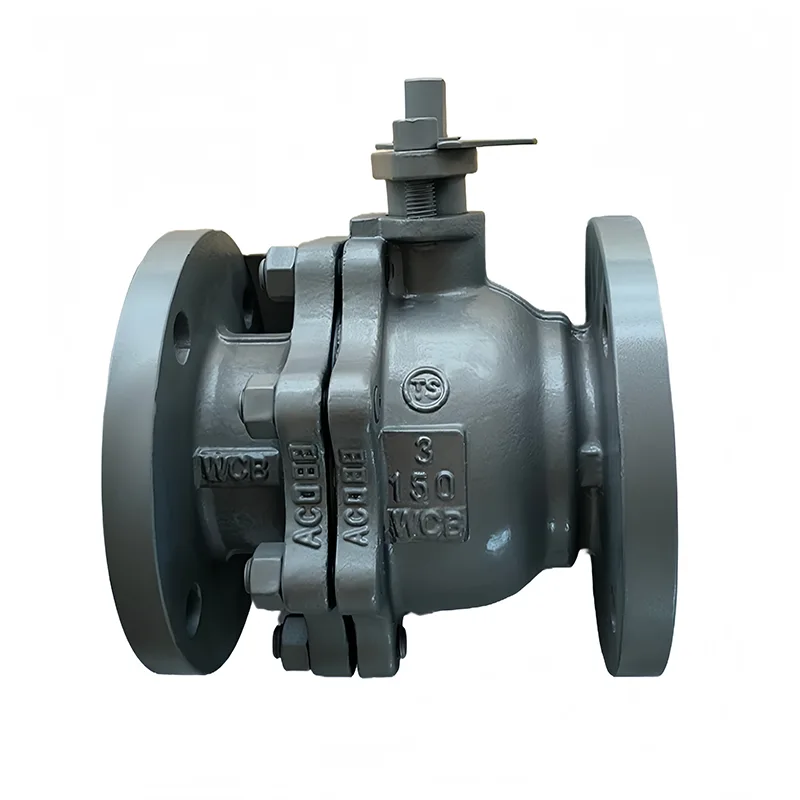

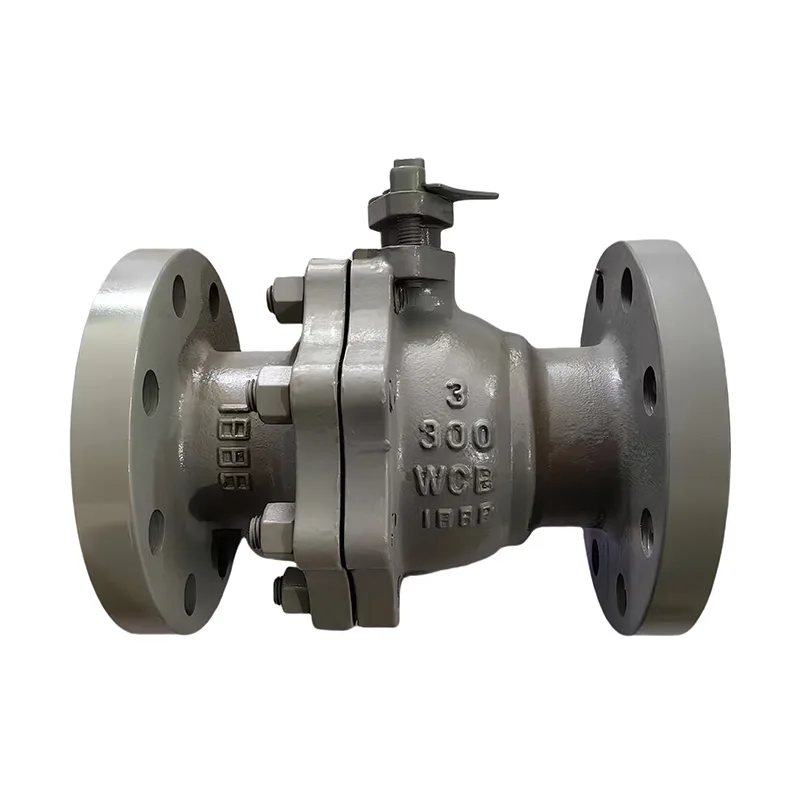

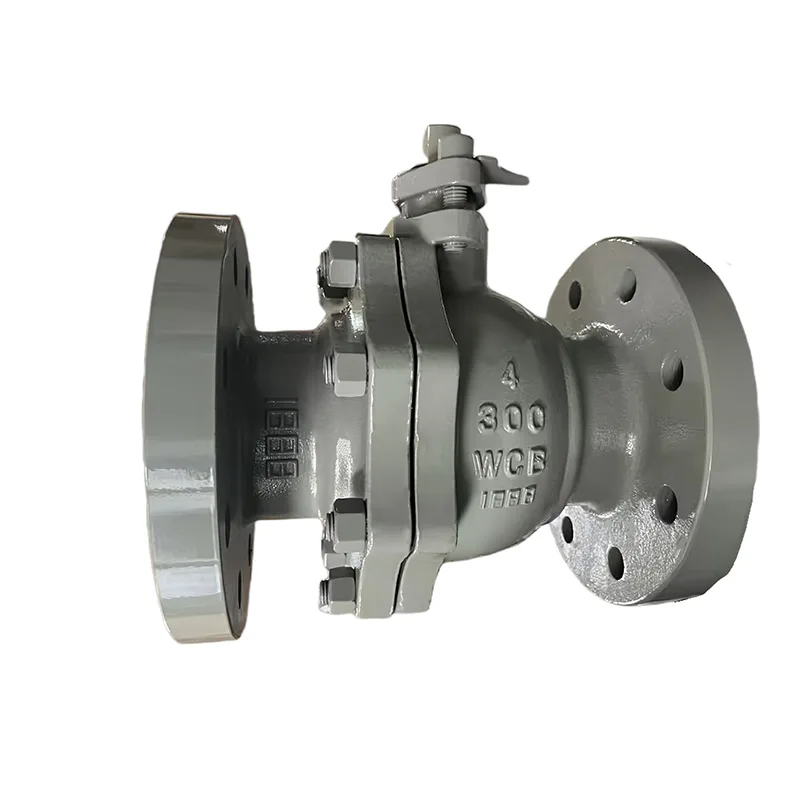

2 Daim Flanged Pob Valve

Nws tuav tau zoo txawm tias siv tas li, thiab ua haujlwm zoo rau cov kav dej hauv cov nroj tsuag tshuaj, cov chaw kho dej, chaw nres tsheb fais fab thiab lwm cov kab kev lag luam.

Peb yog cov kws tshaj lij valve tsim nrog ISO thiab API daim ntawv pov thawj. Peb siv cov tshuab tsim khoom niaj hnub thiab tshawb xyuas txhua yam khoom kom zoo thaum lub sijhawm tsim khoom, yog li txhua yam khoom nyob rau hauv cov qauv thoob ntiaj teb. Peb kuj tuaj yeem ua OEM thiab ODM kev cai ua haujlwm, thiab peb lees txais kev txiav txim nrog tsawg kawg nkaus kom muaj nuj nqis.Our zoo li qub tau muag thoob ntiaj teb thiab tau txais kev ntseeg zoo ib yam los ntawm cov neeg yuav khoom thoob ntiaj teb.

Dab tsi yog qhov txawv ntawm ib leeg thiab 2-thooj Flanged pob li qub?

Lub ntsiab sib txawv yog nyob rau hauv lub cev qauv thiab kev ruaj ntseg:

1.Single piece (1PC) pob valve: Lub cev yog ib qho, compact thiab tsis tshua muaj nqi. Nws yog feem ntau threaded thiab tsis yooj yim rau disassemble lossis kho ntawm qhov chaw. Nws feem ntau yog siv rau cov ntawv me me, tsis tshua muaj siab.

2.2 daim (2PC) pob valve: Lub cev yog ua los ntawm ob qhov bolted-ua ke. Qhov kev tsim no tso cai rau tag nrho disassembly rau kev tshuaj xyuas, tu thiab txij nkawm yam tsis tau tshem tag nrho lub valve los ntawm cov kav dej. Nws yog feem ntau siv nyob rau hauv flanged, siab dua-siab thiab industrial-qib daim ntaub ntawv zoo li peb 2 daim flanged pob valve.

Cov cwj pwm tseem ceeb

Dab tsi yog flanged pob valve siv rau?

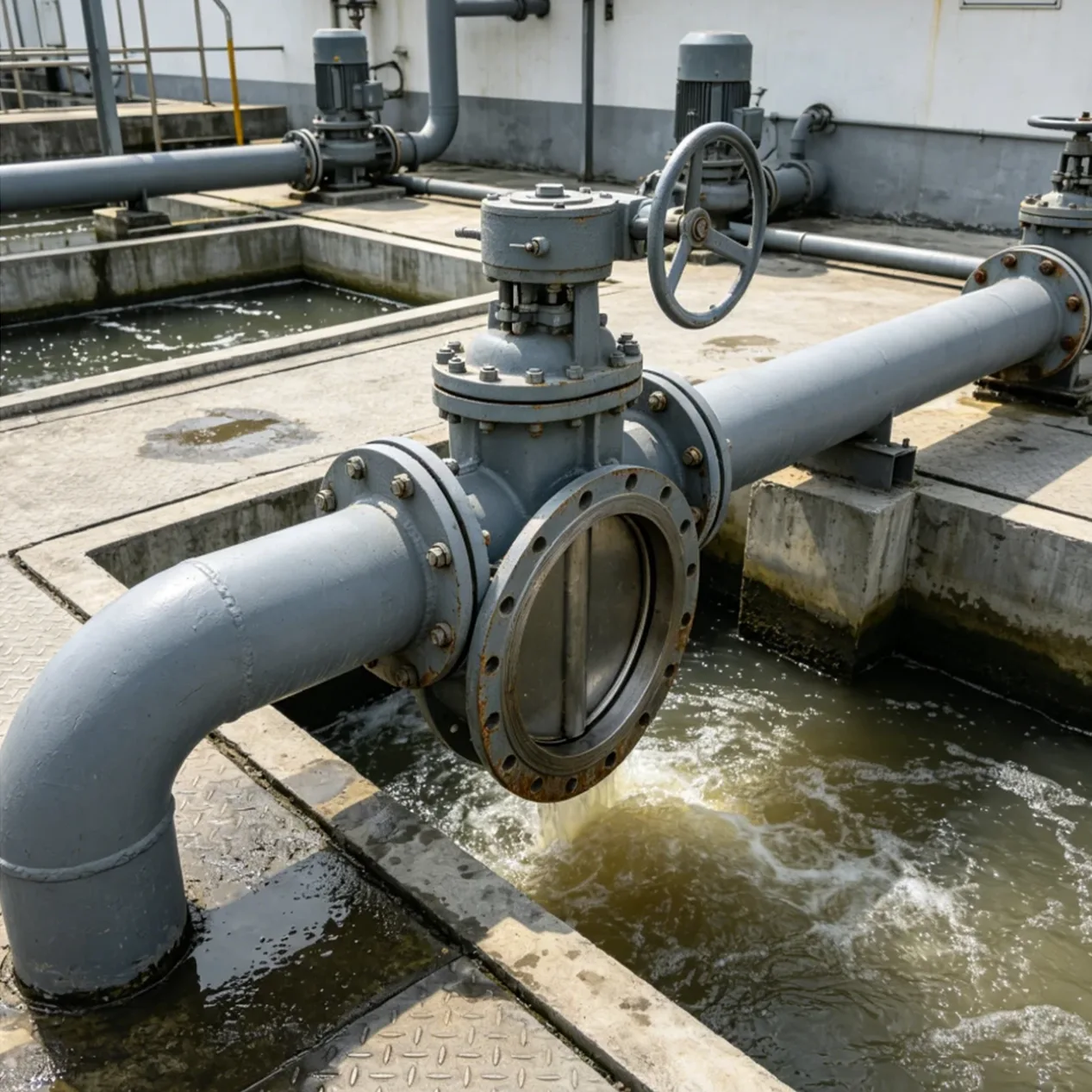

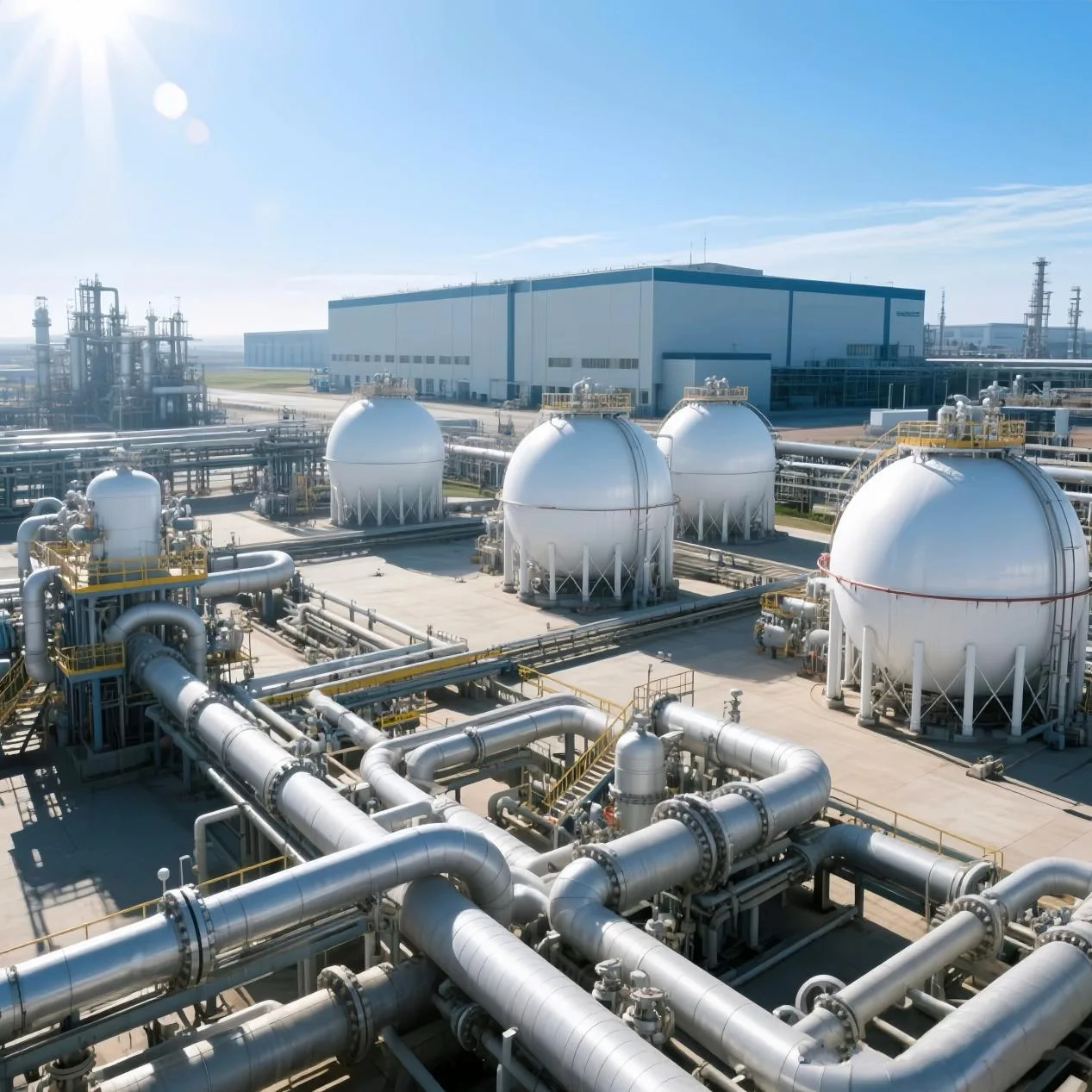

Flanged pob li qub yog qhov kev xaiv mus rau kev txhim khu kev lag luam hauv kev lag luam piping systems. Lawv tau tsim los tswj cov kua, roj, nkev, thiab txawm tias qee lub teeb slurries, ua rau lawv muaj ntau yam rau txhua yam kev lag luam. Koj yuav pom lawv tau siv dav hauv petrochemical thiab roj & roj kav dej, kho dej thiab dej khib nyiab, cov chaw tsim hluav taws xob thiab cov tshuab cua sov, ntxiv rau cov khoom noj & dej haus thiab cov chaw tsim tshuaj.

Dab tsi tiag tiag teeb flanged pob li qub sib nrug yog lawv txoj kev sib txuas. Piv nrog threaded li qub, flanged hom ntsia liaj qhov rooj ncaj nraim rau cov yeeb nkab nrog lub gasket nyob nruab nrab. Qhov kev sib txuas no muaj zog dua, sealing zoo heev, thiab ua rau kev teeb tsa thiab kev sib dhos yooj yim dua ntawm qhov chaw.

Tias yog vim li cas lawv tau dav siv rau cov kav dej loj thiab kev ua haujlwm siab, qhov kev nyab xeeb thiab kev ua haujlwm ruaj khov yog qhov tseem ceeb. Lwm qhov zoo dua yog tias lawv tuaj yeem raug tshem tawm yooj yim rau kev tshuaj xyuas lossis kev saib xyuas, uas yuav pab txuag tau ntau lub sijhawm thaum lub kaw lus kaw.

Tus qauv 2-txoj kev pob valve khiav ntawm qhov yooj yim 90-degree tig ua haujlwm. Nyob rau hauv lub valve lub cev zaum ib tug hollow pob haum nrog ib tug ncaj bore, surrounded los ntawm txhim khu kev qha sealing qhov chaw. Thaum koj tig lub zog sib npaug mus rau lub raj xa dej, lub qhov hauv lub pob sib tw nrog cov kev taw qhia ntws, tso cai rau cov xov xwm hla mus tau zoo nrog kev poob siab me ntsis.

Tig tus kov tsuas yog 90 degrees, yog li nws nyob rau sab xis ntawm cov yeeb nkab, thiab cov khoom ntawm lub pob tam sim no thaiv txoj kev ntws tag nrho, kaw txoj kab nruj. Qhov ntawd yog txhua yam nws yuav siv tau los ntawm kev qhib siab mus rau tag nrho kaw, tsis muaj ntau qhov kev hloov pauv lossis hloov kho xav tau. Qhov kev tsim no muab rau koj ceev, txhim khu kev qha rau / tawm tswj, nrog kev poob siab tsawg thiab tsis tshua muaj kev pheej hmoo ntawm kev xau - txawm tias tom qab siv dua.

Qhov txawv ntawm Ntu 1 thiab Ntu 2 yog dab tsi?

Qhov no tsuas yog kev lag luam luv luv rau 1-thooj vs 2-thooj pob li qub, xa mus rau yuav ua li cas lub valve lub cev tsim, thiab nws ua rau muaj qhov sib txawv loj hauv qhov koj siv thiab tswj lawv:

Ntu 1 (1-thooj pob valve): Tag nrho lub cev lub cev yog tsim los ua ib qho, khoom siv. Feem ntau ntawm cov no yog threaded, compact, thiab tsis tshua muaj nqi, uas ua rau lawv nrov rau me me-bore, tsawg-siab daim ntaub ntawv xws li cov kav dej hauv tsev los yog cov kab kev lag luam yooj yim. Qhov tsis zoo yog koj tsis tuaj yeem muab lawv sib nrug - yog tias cov ntsaws ruaj ruaj hnav lossis qee yam tau daig, koj yuav tsum hloov tag nrho lub valve. Lawv tsis yog tsim los rau disassembly lossis kho ntawm qhov chaw.

Ntawm no yog 2 daim pob valve. Raws li lub npe qhia, nws lub cev yog ua los ntawm ob seem tuav ua ke los ntawm bolts, ib yam li peb flanged pob valve.

Qhov kev tsim no coj yooj yim loj rau kev siv hauv kev lag luam. Koj tuaj yeem tshem tawm cov bolts kom tshem tawm lub valve. Tom qab ntawd koj tuaj yeem ntxuav sab hauv, hloov cov ntsaws ruaj ruaj los yog tshem cov blockages yooj yim. Qhov zoo tshaj plaws, koj tsis tas yuav nqa tag nrho lub valve tawm ntawm cov yeeb nkab los ua cov haujlwm no.

Zuag qhia tag nrho, cov li qub no yog tawv thiab yooj yim los saib xyuas. Lawv ua haujlwm zoo heev rau cov kav dej loj, qhov chaw muaj kev kub ntxhov thiab qhov chaw uas yuav tsum tau ua haujlwm ntau zaus.
